D–135

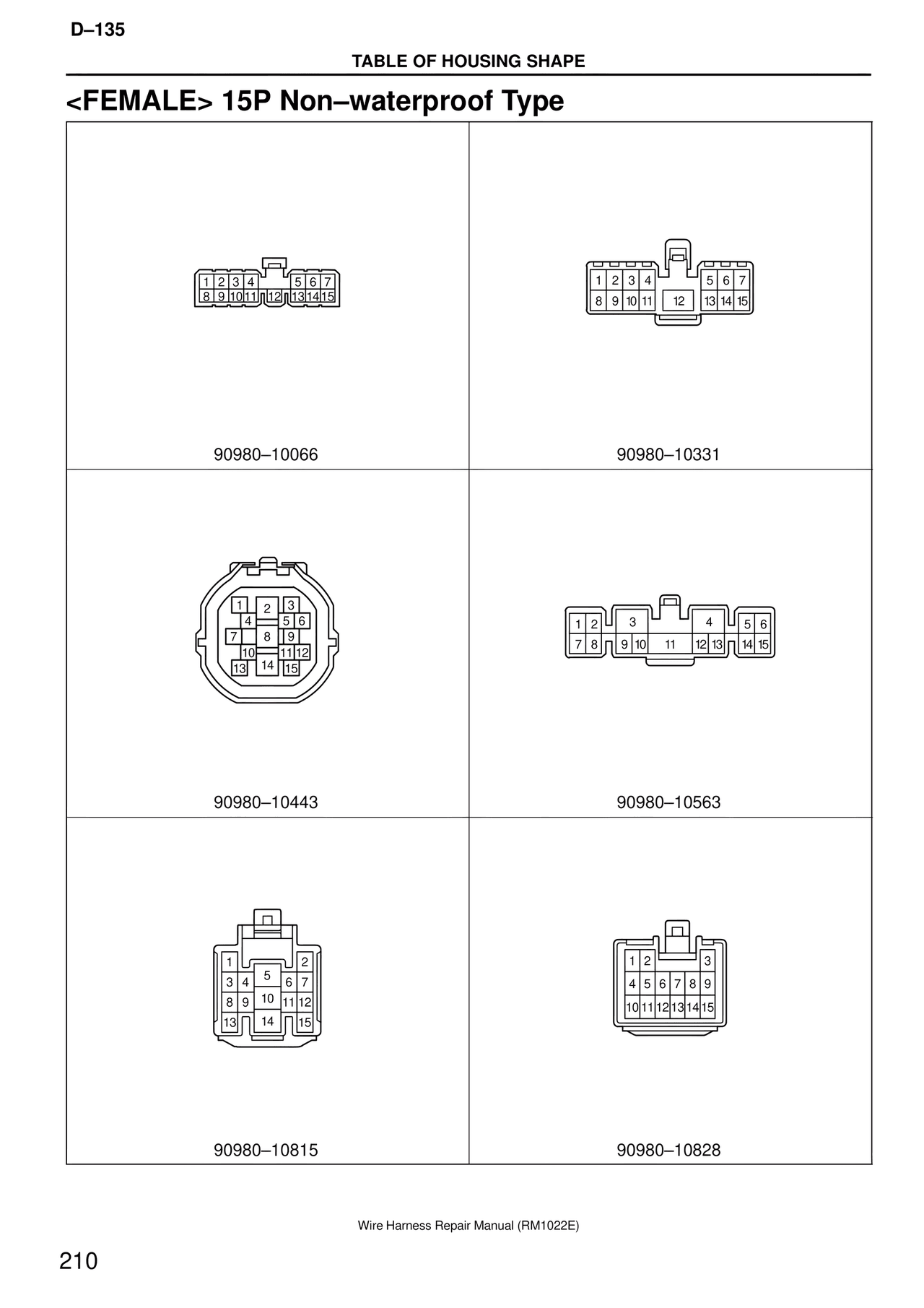

TABLE OF HOUSING SHAPE
<FEMALE> 15P Non–waterproof Type
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
90980–10066
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
90980–10331
1 2 3
4 5 6
7 8 9
10 11 12
13 14 15
90980–10443
1 2 3 4 5 6
7 8 9 10 11 12 13 14 15
90980–10563
1 2
3 4 5 6 7
8 9 10 11 12
13 14 15
90980–10815
1 2 3
4 5 6 7 8 9
10 11 12 13 14 15
90980–10828
Wire Harness Repair Manual (RM1022E)
210
