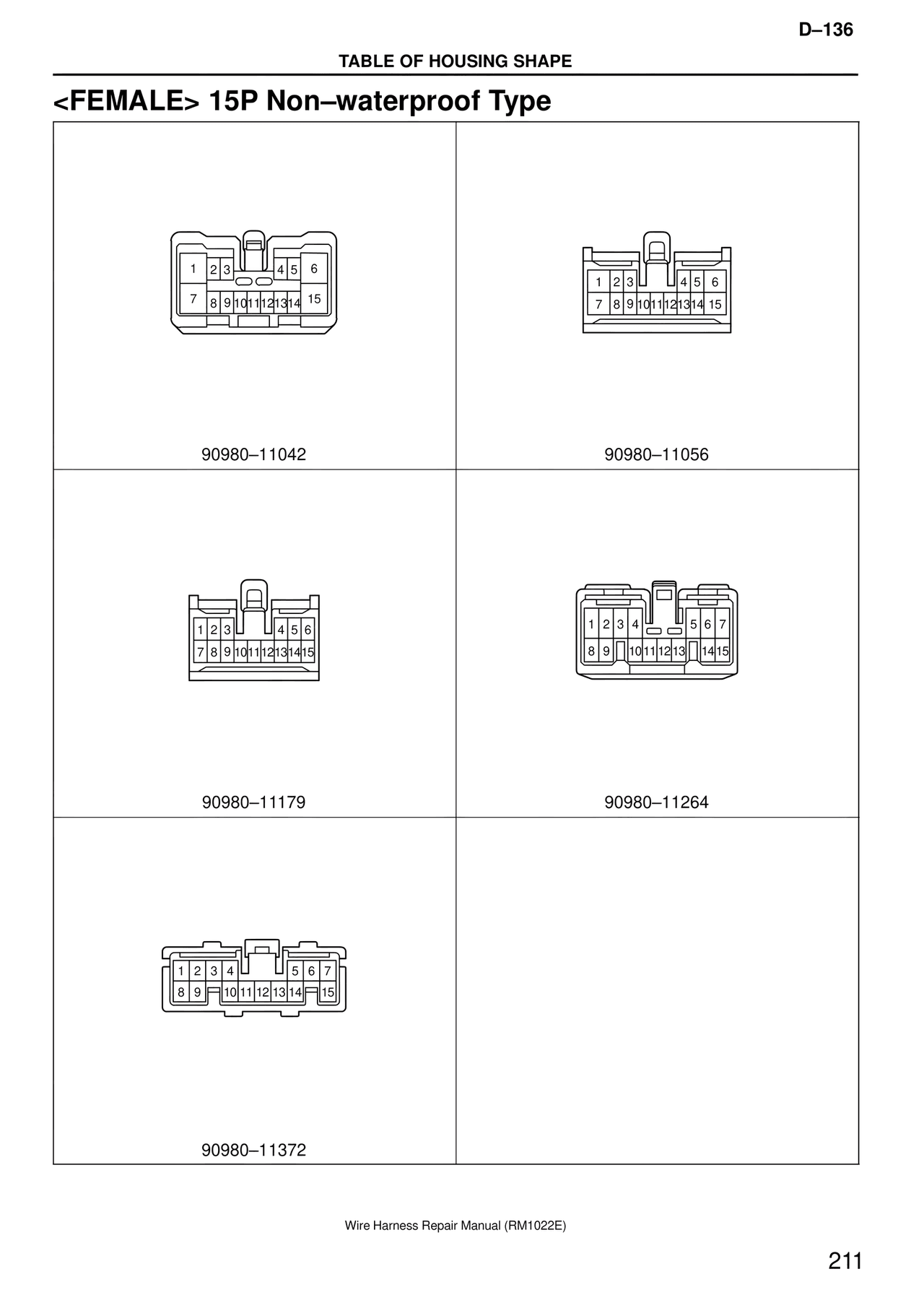

<FEMALE> 15P Non–waterproof Type — MK4 Supra Wire Harness, page 211
100%
D–136 TABLE OF HOUSING SHAPE <FEMALE> 15P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 90980–11042 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 90980–11056 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 90980–11179 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 90980–11264 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 90980–11372 Wire Harness Repair Manual (RM1022E) 211
