WH/Wire Harness — <female> 16P Non–waterproof Type, page 218

D–143

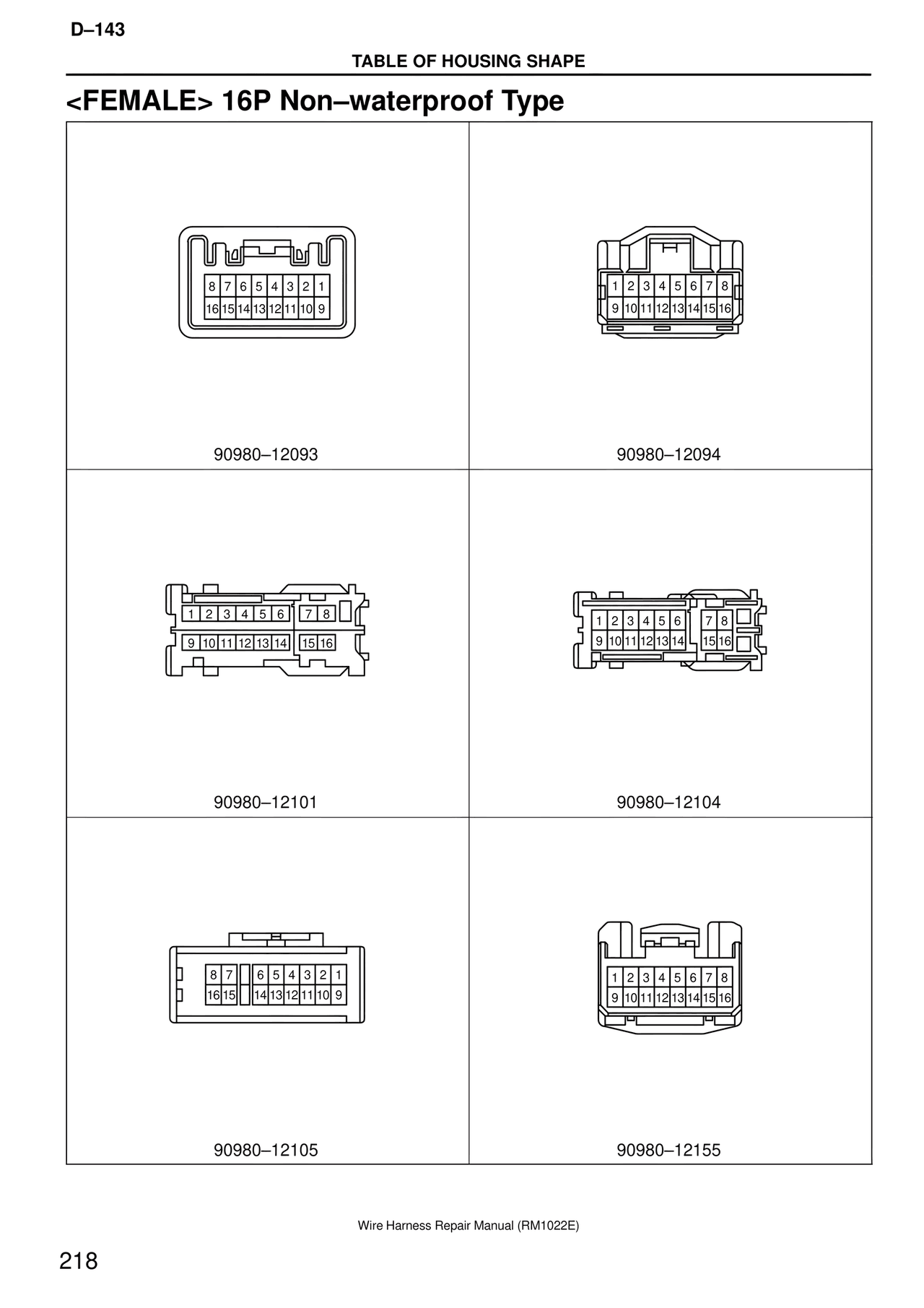

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9

90980–12093

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–12094

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–12101

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–12104

8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9

90980–12105

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–12155
