D–142

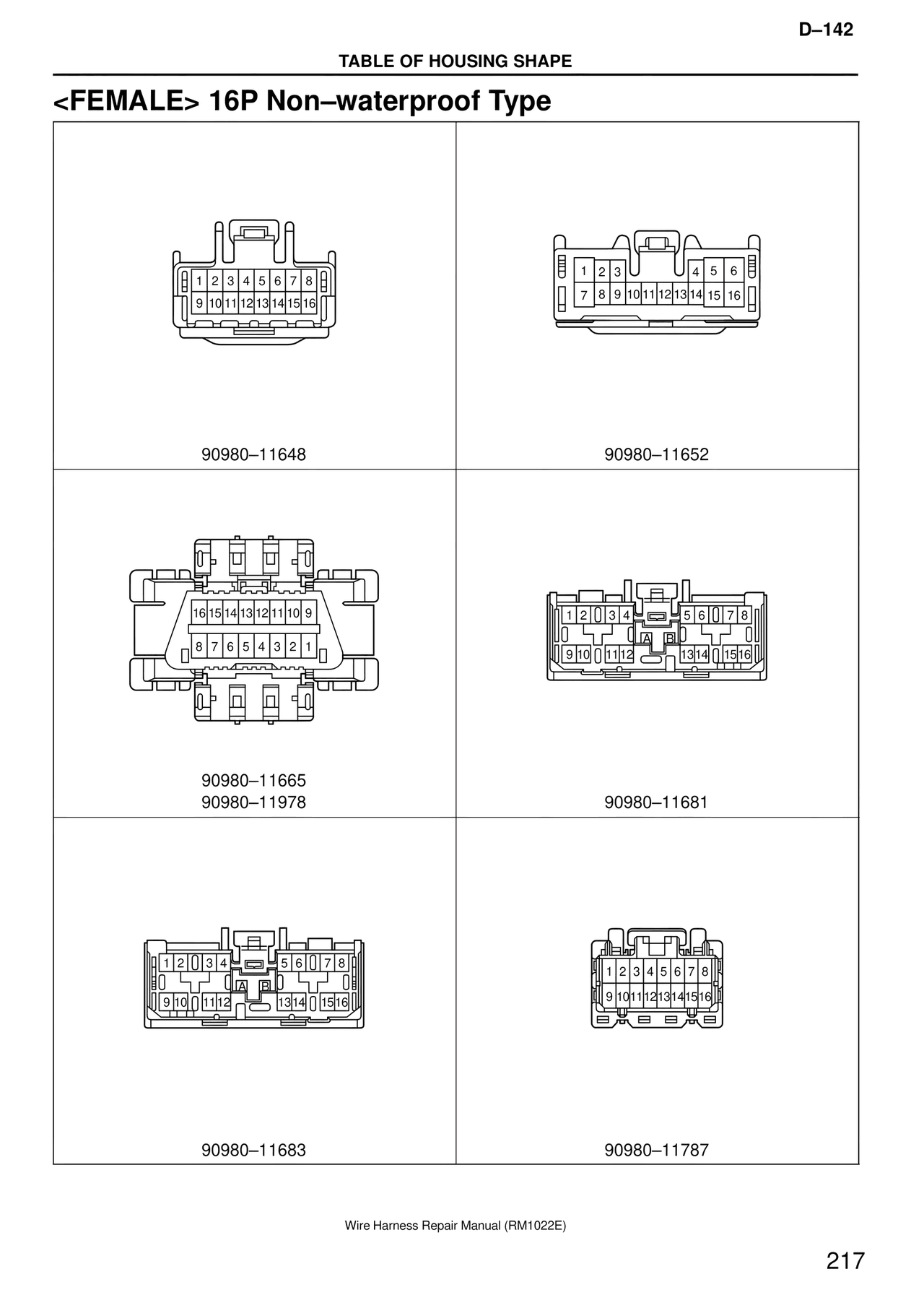

TABLE OF HOUSING SHAPE
<FEMALE> 16P Non–waterproof Type
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–11648
1 2 3 4 5 6
7 8 9 10 11 12 13 14 15 16
90980–11652
16 15 14 13 12 11 10 9
8 7 6 5 4 3 2 1
90980–11665
90980–11978
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
A B
90980–11681
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
A B
90980–11683
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–11787
Wire Harness Repair Manual (RM1022E)
217
