WH/Wire Harness — <female> 18P Non–waterproof Type, page 222

D–147

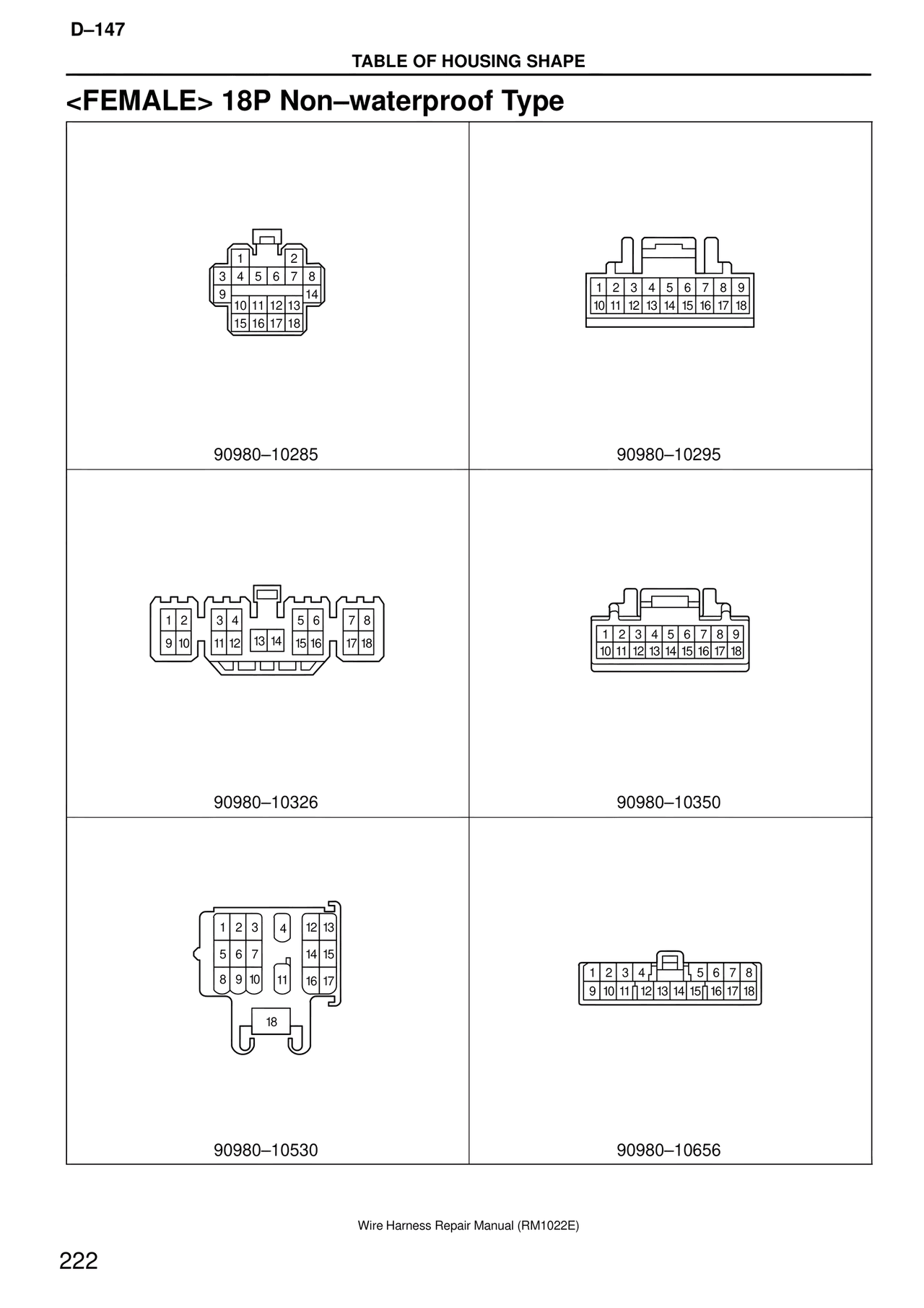

TABLE OF HOUSING SHAPE

<FEMALE> 18P Non–waterproof Type

1  2
3  4  5  6  7  8
9        14
10 11 12 13
15 16 17 18

90980–10285

1  2  3  4  5  6  7  8  9
10 11 12 13 14 15 16 17 18

90980–10295

1  2    3  4    5  6    7  8
9 10  11 12  13 14  15 16  17 18

90980–10326

1  2  3  4  5  6  7  8  9
10 11 12 13 14 15 16 17 18

90980–10350

1  2  3   4    12 13
5  6  7        14 15
8  9 10  11   16 17
         18

90980–10530

1  2  3  4    5  6  7  8
9 10 11 12 13 14 15 16 17 18

90980–10656

Wire Harness Repair Manual (RM1022E)

222
