D–148

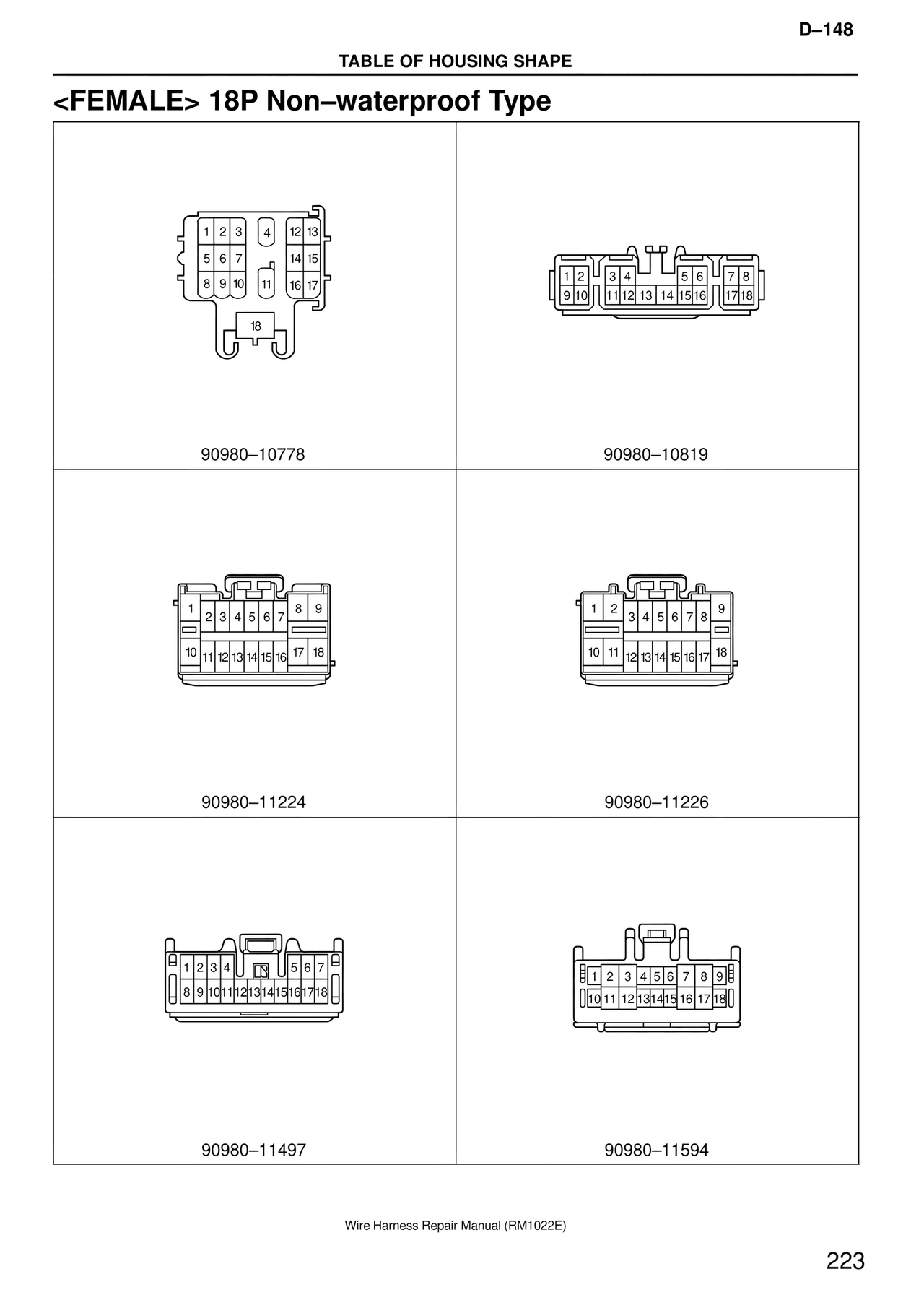

TABLE OF HOUSING SHAPE

<FEMALE> 18P Non–waterproof Type

1 2 3  4  12 13
5 6 7    14 15
8 9 10  11  16 17
        18

90980–10778

1 2  3 4  5 6  7 8
9 10  11 12 13  14 15 16  17 18

90980–10819

1  2 3 4 5 6 7  8 9
10  11 12 13 14 15 16  17 18

90980–11224

1  2  3 4 5 6 7  8  9
10  11  12 13 14 15 16 17  18

90980–11226

1 2 3 4  N  5 6 7
8 9 10 11 12 13 14 15 16 17 18

90980–11497

1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18

90980–11594

Wire Harness Repair Manual (RM1022E)

223
