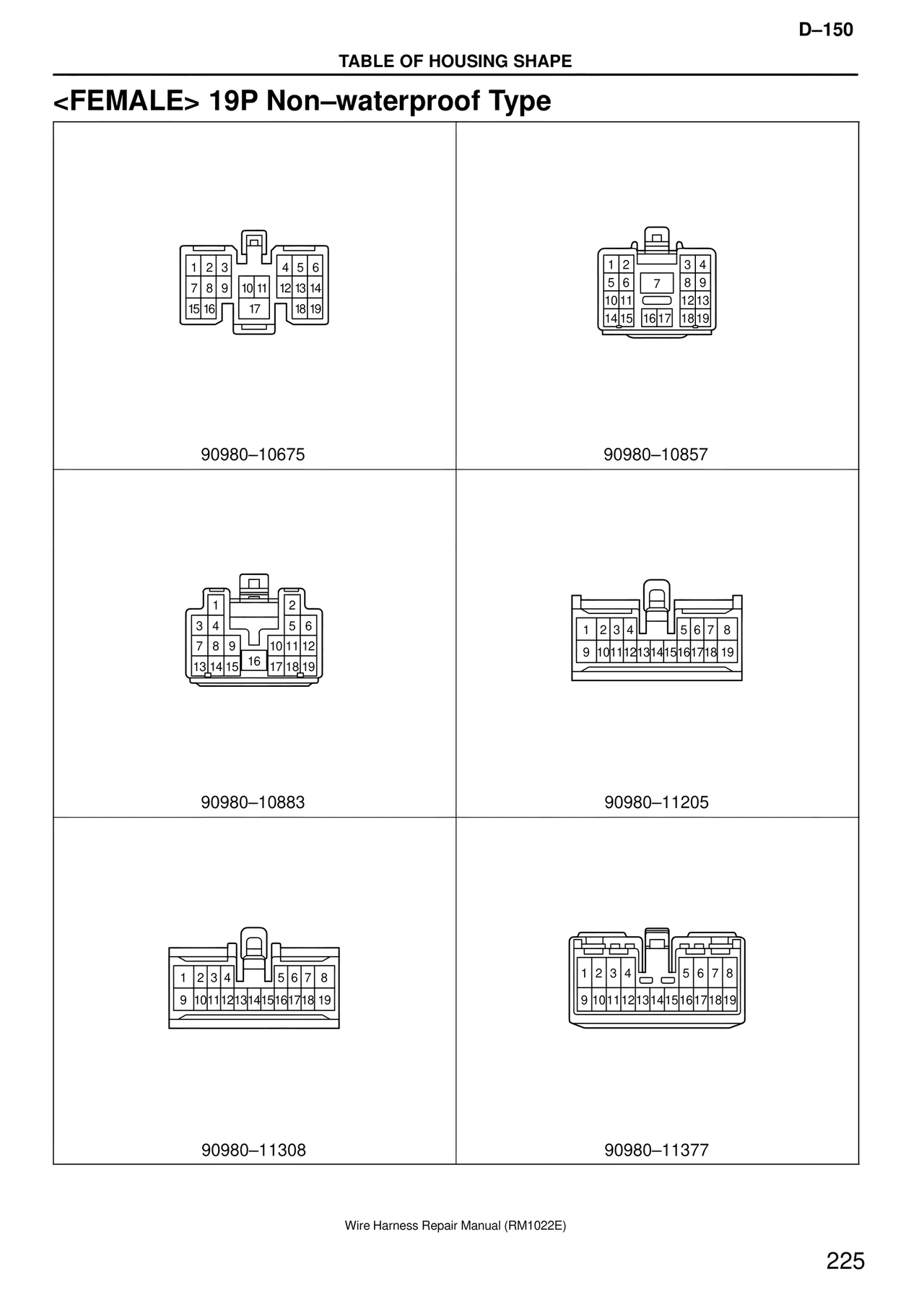

<FEMALE> 19P Non–waterproof Type — MK4 Supra Wire Harness, page 225
100%
D–150 TABLE OF HOUSING SHAPE <FEMALE> 19P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 90980–10675 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 90980–10857 1 3 4 2 7 8 9 5 6 13 14 15 16 10 11 12 17 18 19 90980–10883 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 90980–11205 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 90980–11308 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 90980–11377 Wire Harness Repair Manual (RM1022E) 225
