WH/Wire Harness — <female> 19P Non–waterproof Type, page 226

D–151

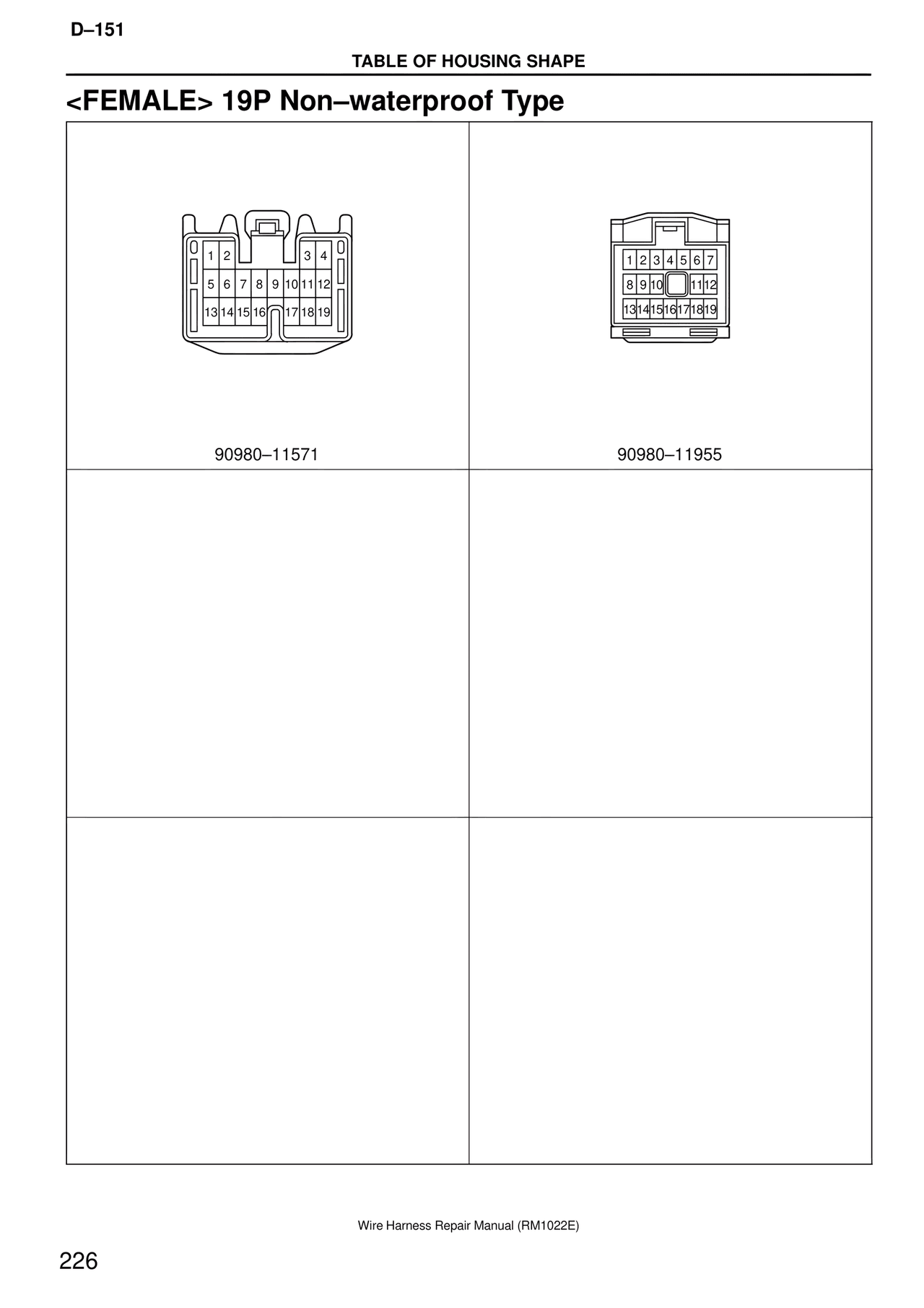

TABLE OF HOUSING SHAPE

<FEMALE> 19P Non–waterproof Type

1  2        3  4
5  6  7  8  9  10  11  12
13  14  15  16     17  18  19

90980–11571

1  2  3  4  5  6  7
8  9  10     11  12
13  14  15  16  17  18  19

90980–11955

Wire Harness Repair Manual (RM1022E)

226
