D–152

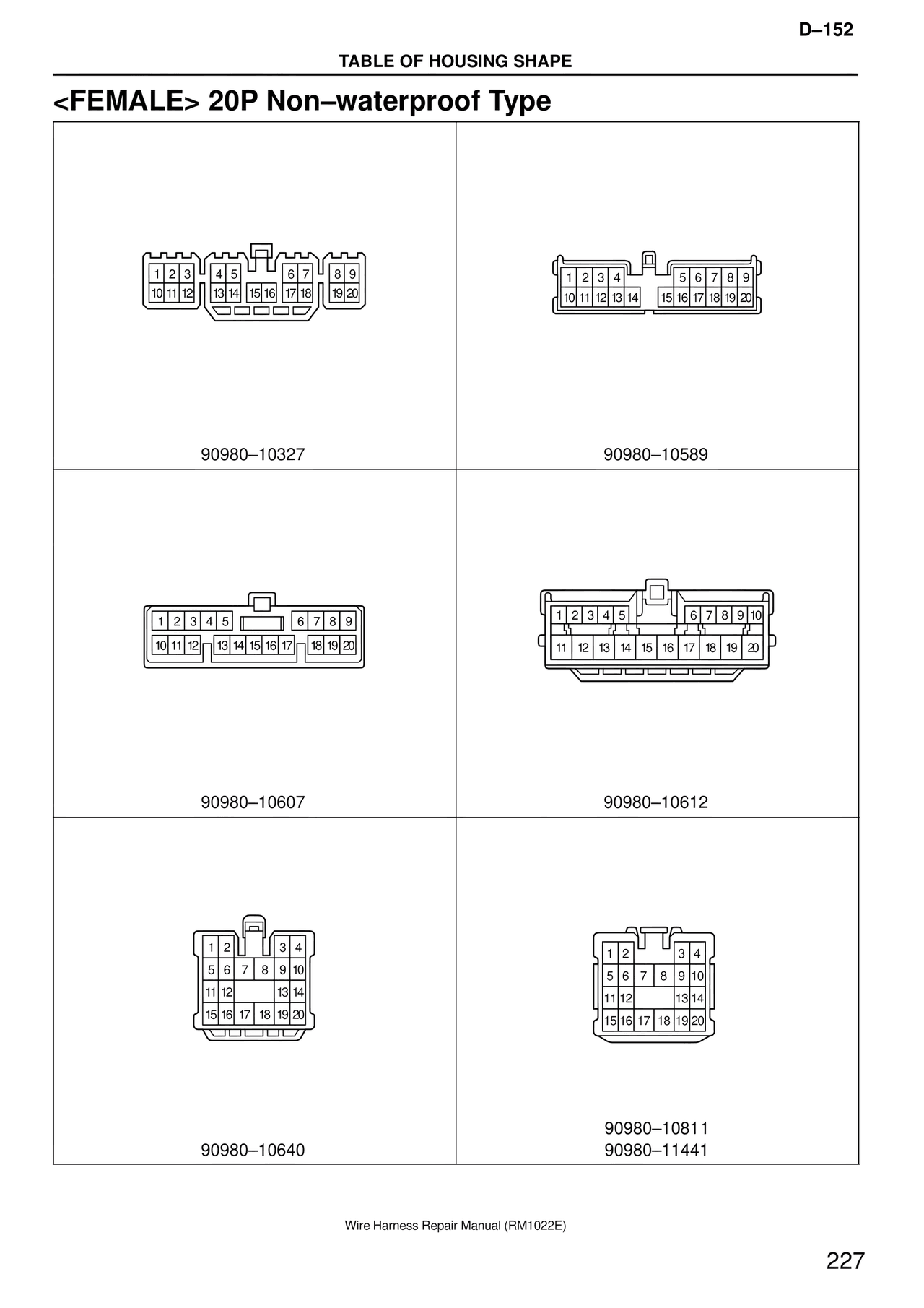

TABLE OF HOUSING SHAPE

<FEMALE> 20P Non–waterproof Type

1 2 3  4 5  6 7  8 9
10 11 12  13 14  15 16  17 18  19 20

90980–10327

1 2 3 4  5 6 7 8 9
10 11 12 13 14  15 16 17 18 19 20

90980–10589

1 2 3 4 5  6 7 8 9
10 11 12  13 14 15 16 17  18 19 20

90980–10607

1 2 3 4 5  6 7 8 9 10
11  12  13  14  15  16  17  18  19  20

90980–10612

1 2  3 4
5 6 7 8 9 10
11 12  13 14
15 16 17 18 19 20

90980–10640

1 2  3 4
5 6 7 8 9 10
11 12  13 14
15 16 17 18 19 20

90980–10811
90980–11441

Wire Harness Repair Manual (RM1022E)

227
