D–154

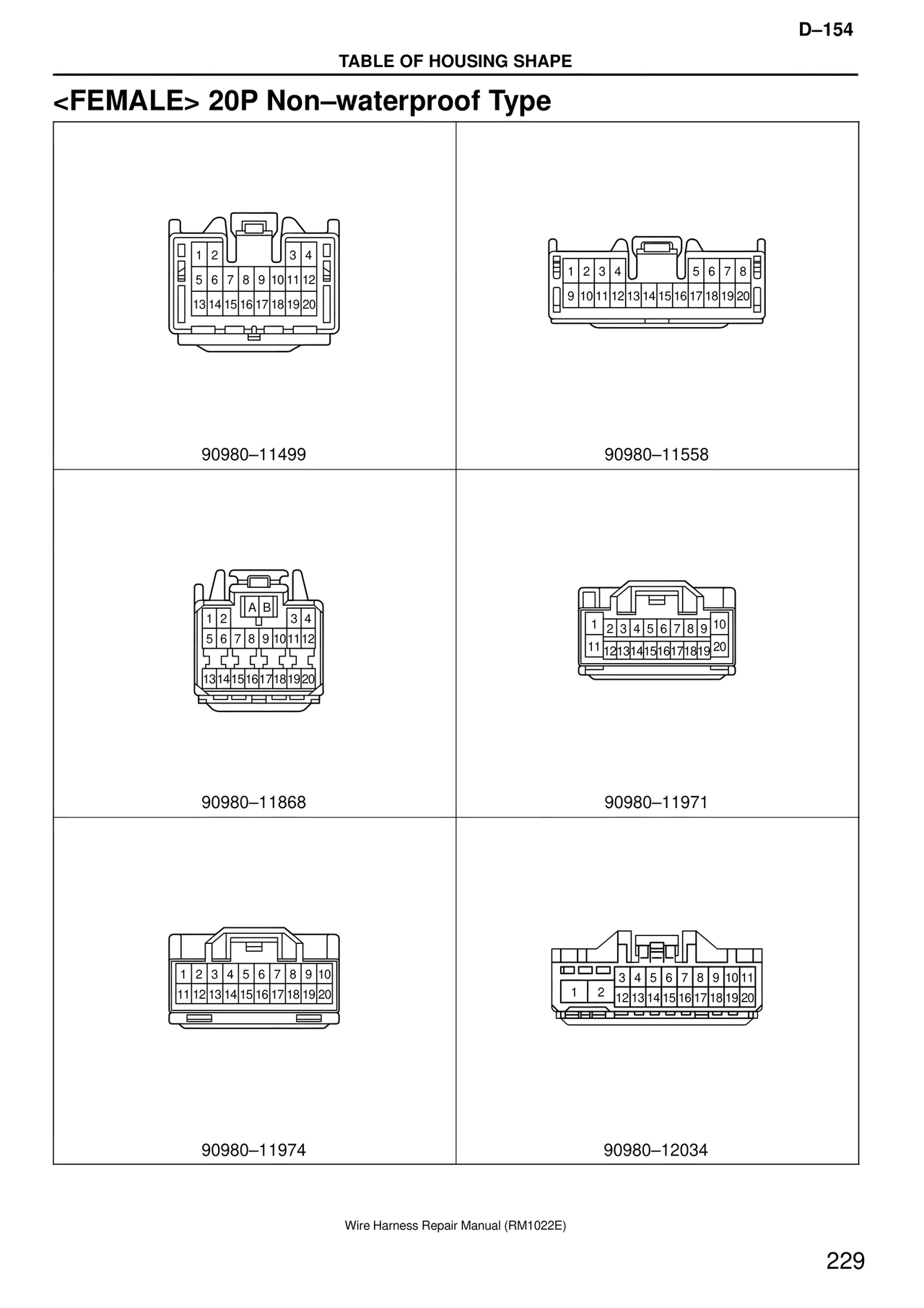

TABLE OF HOUSING SHAPE

<FEMALE> 20P Non–waterproof Type

1  2        3  4
5  6  7  8  9  10  11  12
13  14  15  16  17  18  19  20

90980–11499

1  2  3  4        5  6  7  8
9  10  11  12  13  14  15  16  17  18  19  20

90980–11558

A  B
1  2        3  4
5  6  7  8  9  10  11  12
13  14  15  16  17  18  19  20

90980–11868

1  2  3  4  5  6  7  8  9  10
11  12  13  14  15  16  17  18  19  20

90980–11971

1  2  3  4  5  6  7  8  9  10
11  12  13  14  15  16  17  18  19  20

90980–11974

1  2    3  4  5  6  7  8  9  10  11
      12  13  14  15  16  17  18  19  20

90980–12034

Wire Harness Repair Manual (RM1022E)

229
