D–155

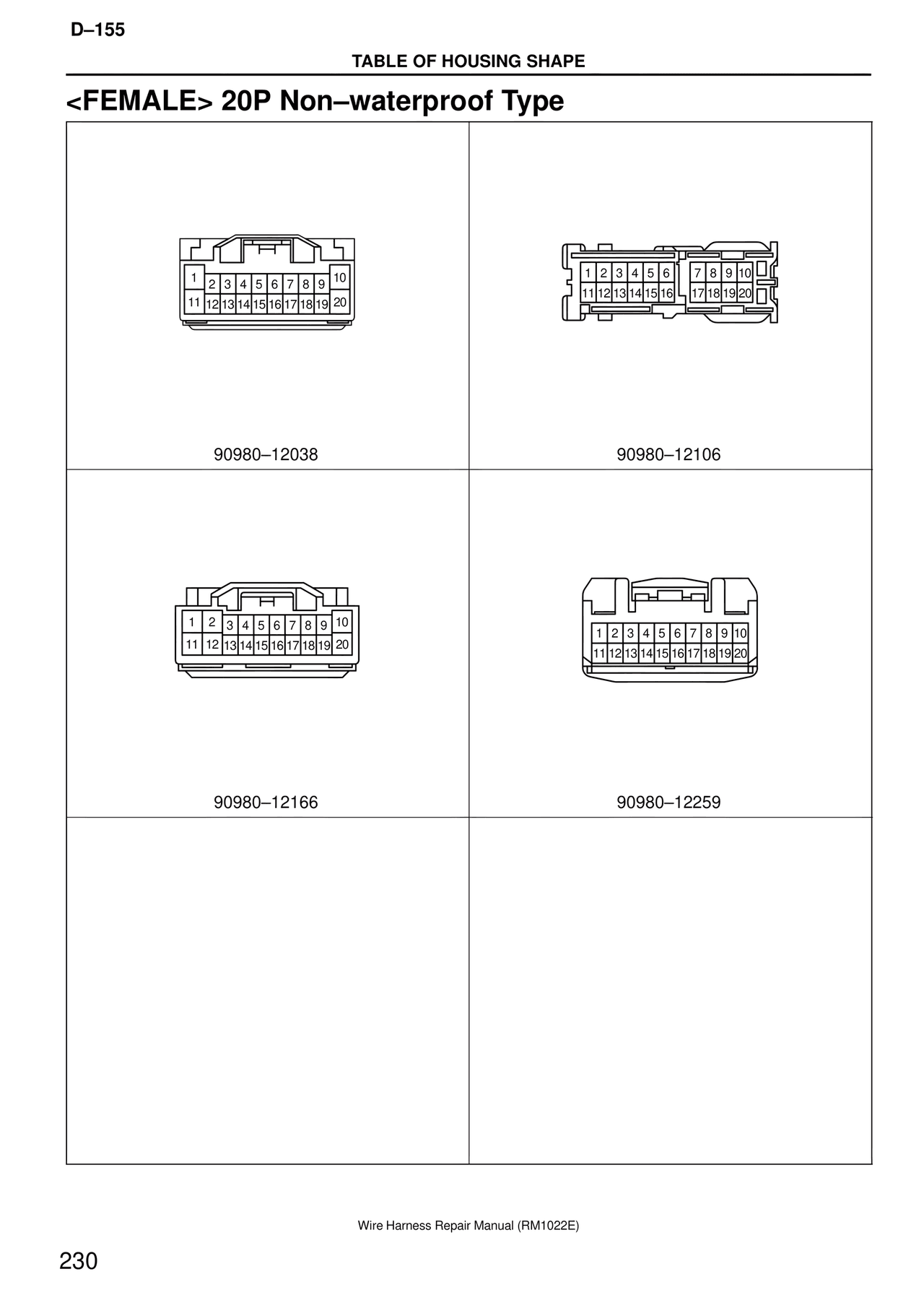

TABLE OF HOUSING SHAPE

<FEMALE> 20P Non–waterproof Type

1  2  3  4  5  6  7  8  9  10
11 12 13 14 15 16 17 18 19 20

90980–12038

1  2  3  4  5  6     7  8  9  10
11 12 13 14 15 16    17 18 19 20

90980–12106

1   2   3  4  5  6  7  8  9  10
11  12  13 14 15 16 17 18 19 20

90980–12166

1  2  3  4  5  6  7  8  9  10
11 12 13 14 15 16 17 18 19 20

90980–12259

Wire Harness Repair Manual (RM1022E)

230
