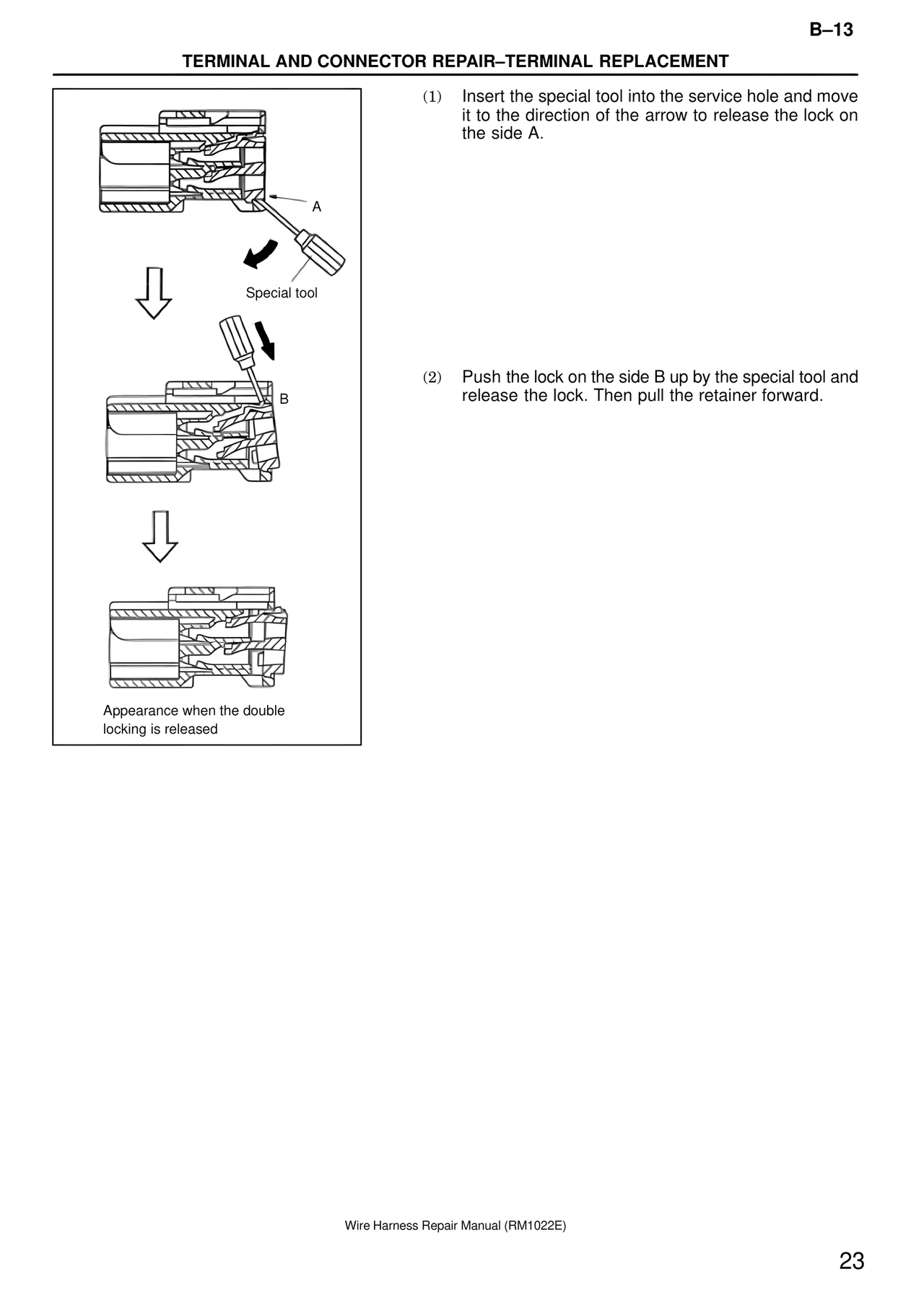

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

A

Special tool

B

Appearance when the double
locking is released

(1)    Insert the special tool into the service hole and move
it to the direction of the arrow to release the lock on
the side A.

(2)    Push the lock on the side B up by the special tool and
release the lock. Then pull the retainer forward.
