B–14

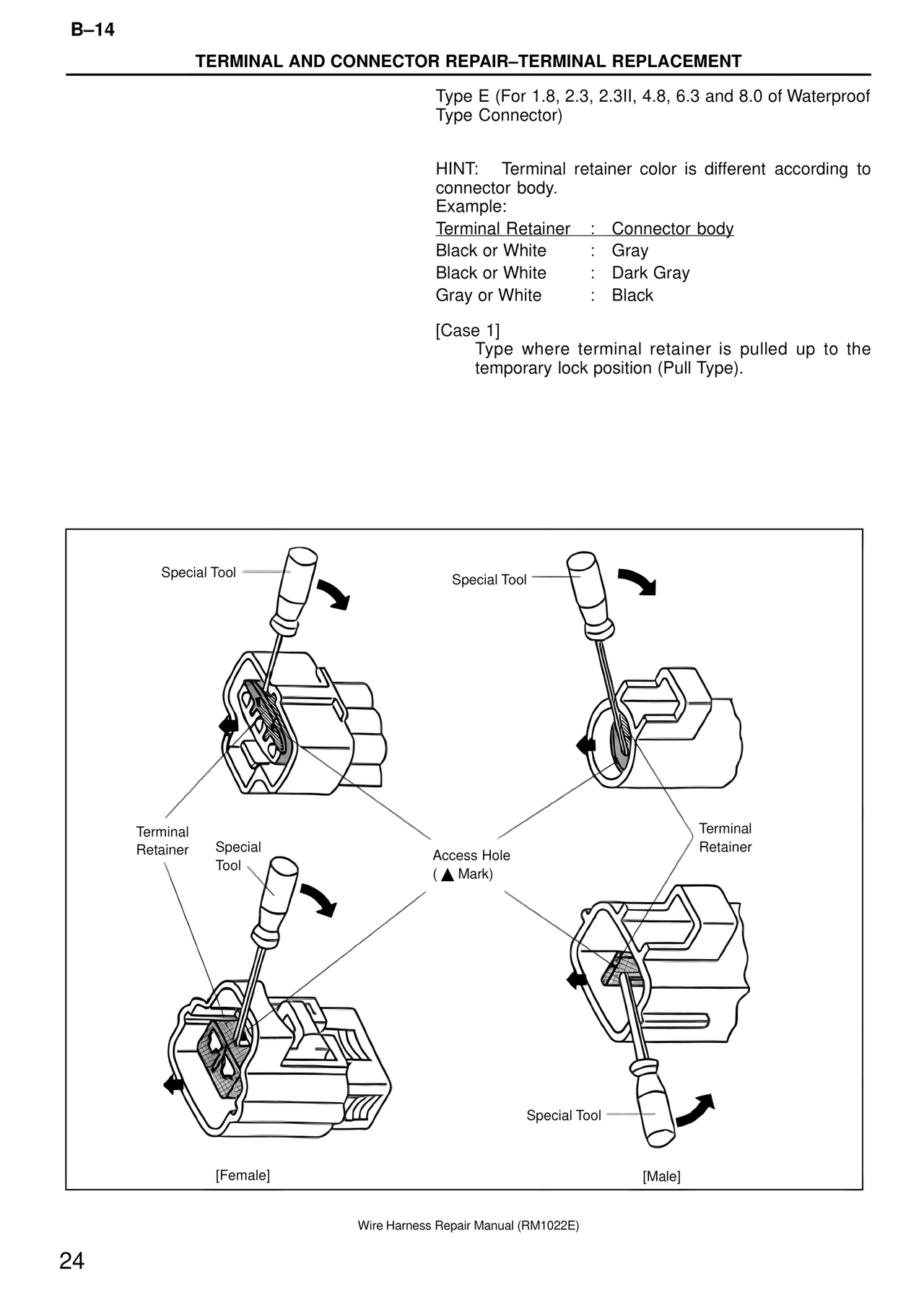

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

Type E (For 1.8, 2.3, 2.3II, 4.8, 6.3 and 8.0 of Waterproof
Type Connector)

HINT: Terminal retainer color is different according to
connector body.
Example:
Terminal Retainer  :  Connector body
Black or White      :  Gray
Black or White      :  Dark Gray
Gray or White       :  Black

[Case 1]
     Type where terminal retainer is pulled up to the
     temporary lock position (Pull Type).

Special Tool

Special Tool

Terminal
Retainer

Special
Tool

Access Hole
( ▲ Mark)

Terminal
Retainer

Special Tool

[Female]

[Male]

Wire Harness Repair Manual (RM1022E)

24
