D–156

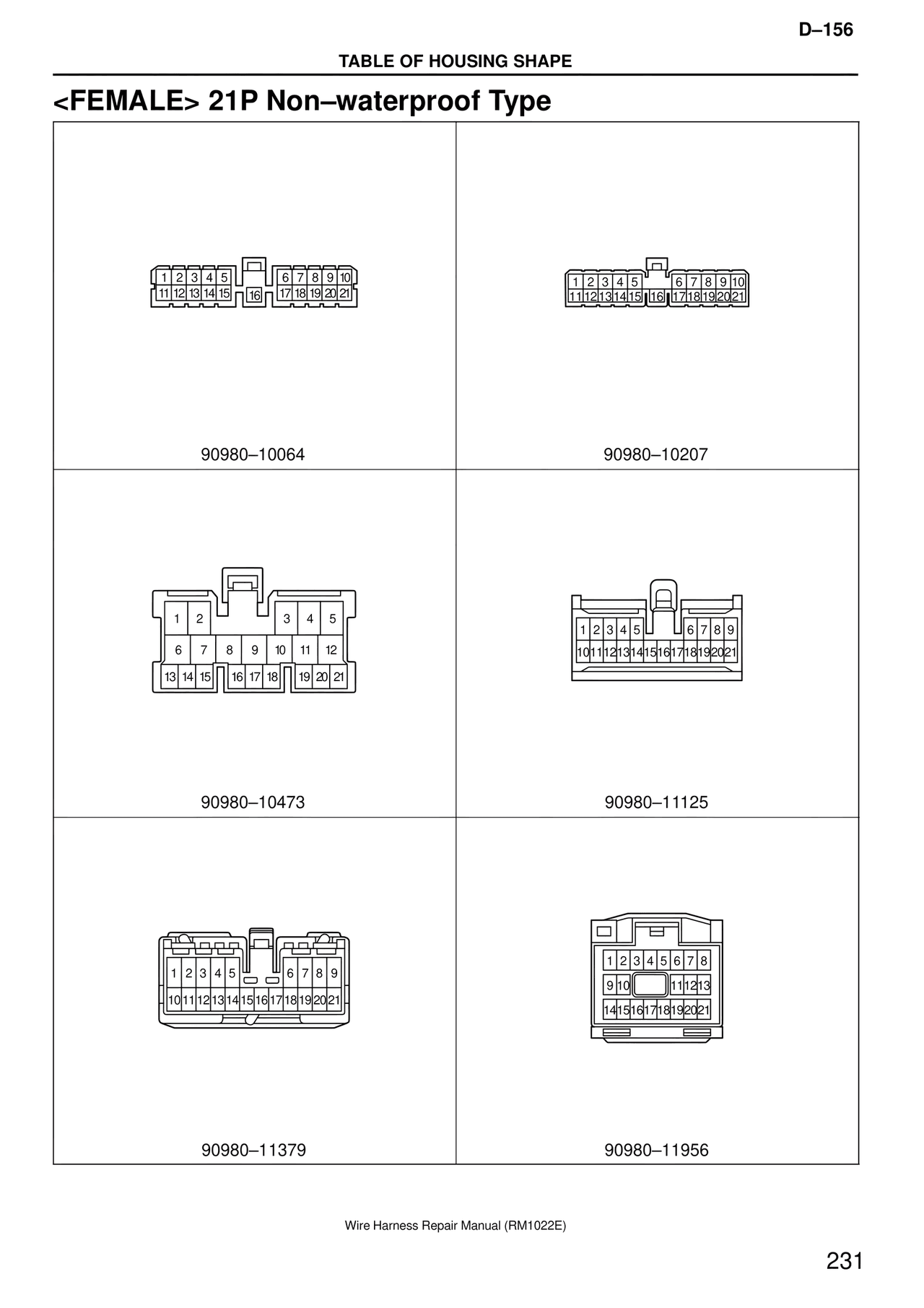

TABLE OF HOUSING SHAPE

<FEMALE> 21P Non–waterproof Type

1 2 3 4 5    6 7 8 9 10
11 12 13 14 15  16  17 18 19 20 21

90980–10064

1 2 3 4 5    6 7 8 9 10
11 12 13 14 15  16  17 18 19 20 21

90980–10207

1  2       3  4  5
6  7  8  9  10  11  12
13 14 15   16 17 18   19 20 21

90980–10473

1 2 3 4 5    6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21

90980–11125

1 2 3 4 5    6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21

90980–11379

1 2 3 4 5 6 7 8
9 10      11 12 13
14 15 16 17 18 19 20 21

90980–11956

Wire Harness Repair Manual (RM1022E)

231
