WH/Wire Harness — <female> 22P Non–waterproof Type, page 233

D–158

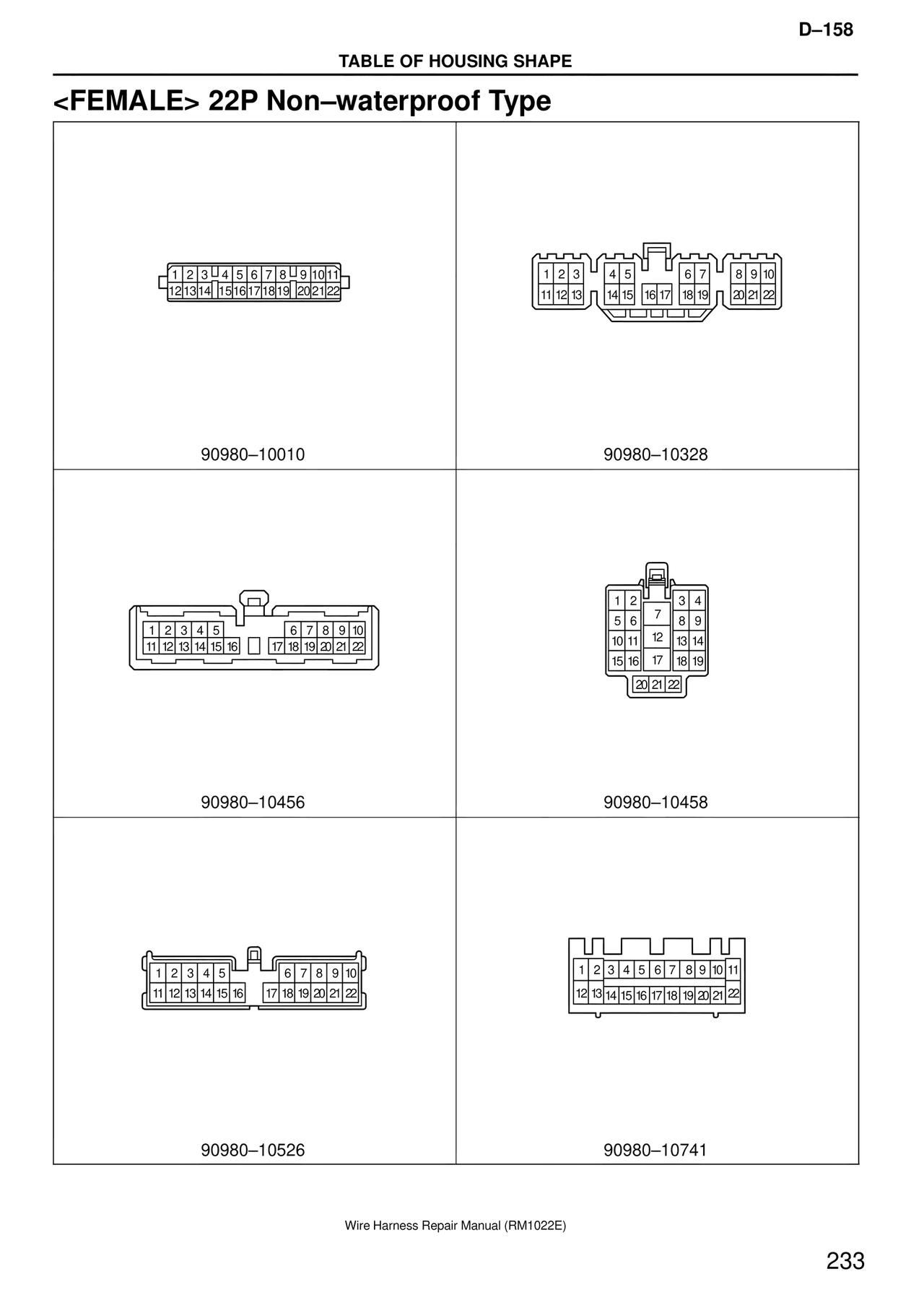

TABLE OF HOUSING SHAPE

<FEMALE> 22P Non–waterproof Type

1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22

90980–10010

1 2 3   4 5   6 7   8 9 10
11 12 13   14 15   16 17   18 19   20 21 22

90980–10328

1 2 3 4 5      6 7 8 9 10
11 12 13 14 15 16   17 18 19 20 21 22

90980–10456

1 2    3 4
5 6  7  8 9
10 11  12  13 14
15 16   17   18 19
20 21 22

90980–10458

1 2 3 4 5    6 7 8 9 10
11 12 13 14 15 16   17 18 19 20 21 22

90980–10526

1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22

90980–10741

Wire Harness Repair Manual (RM1022E)
