TSRM/MK4 Supra/Repair Manual
Repair ManualWiring Diagrams
p.233
WH/Wire Harness234 / 414
p.235

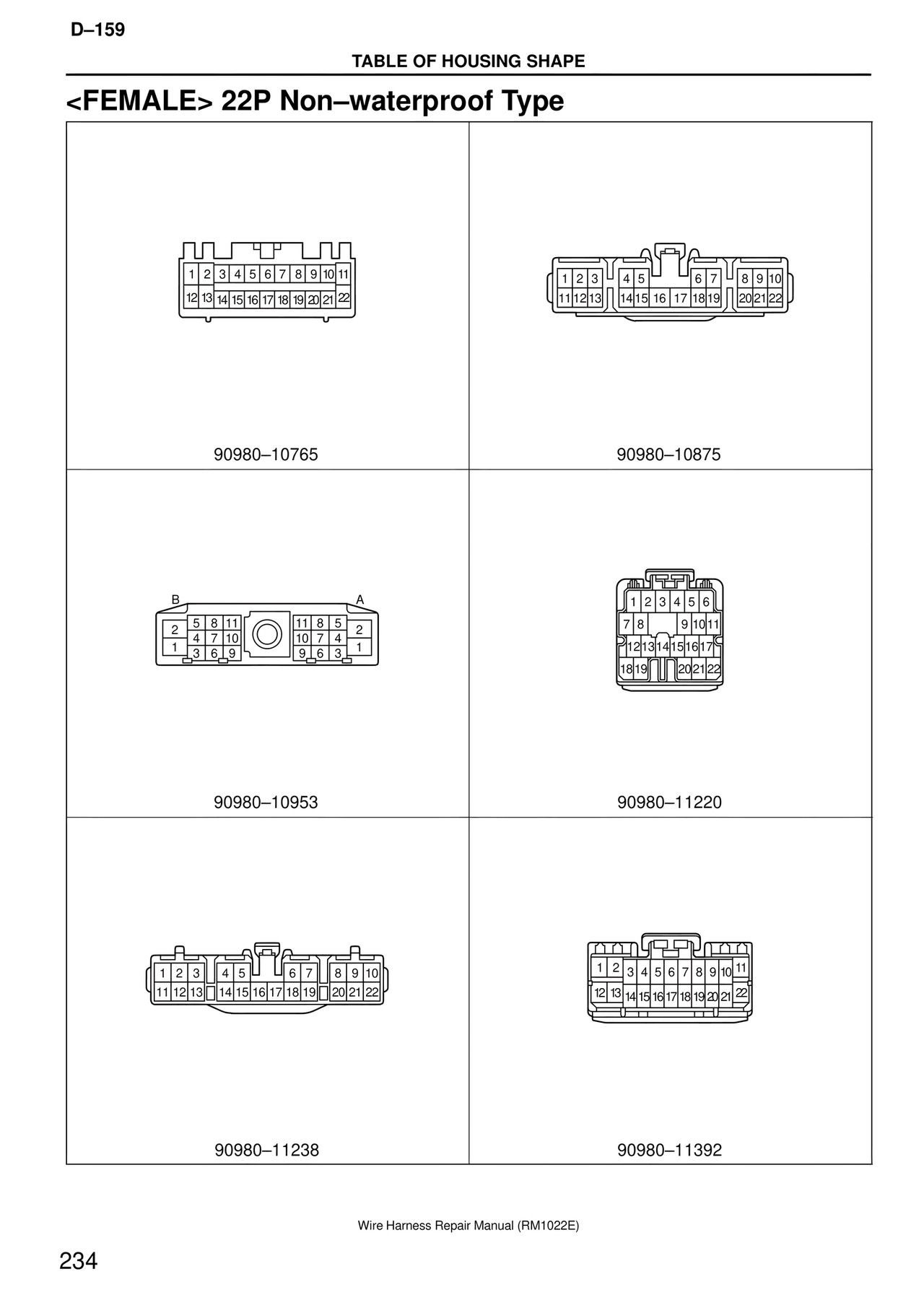

<FEMALE> 22P Non–waterproof Type — MK4 Supra Wire Harness, page 234
100%
D–159 TABLE OF HOUSING SHAPE <FEMALE> 22P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 90980–10765 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 90980–10875 B A 2 5 8 11 11 8 5 2 4 7 10 10 7 4 1 3 6 9 9 6 3 1 90980–10953 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 90980–11220 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 90980–11238 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 90980–11392 Wire Harness Repair Manual (RM1022E) 234
