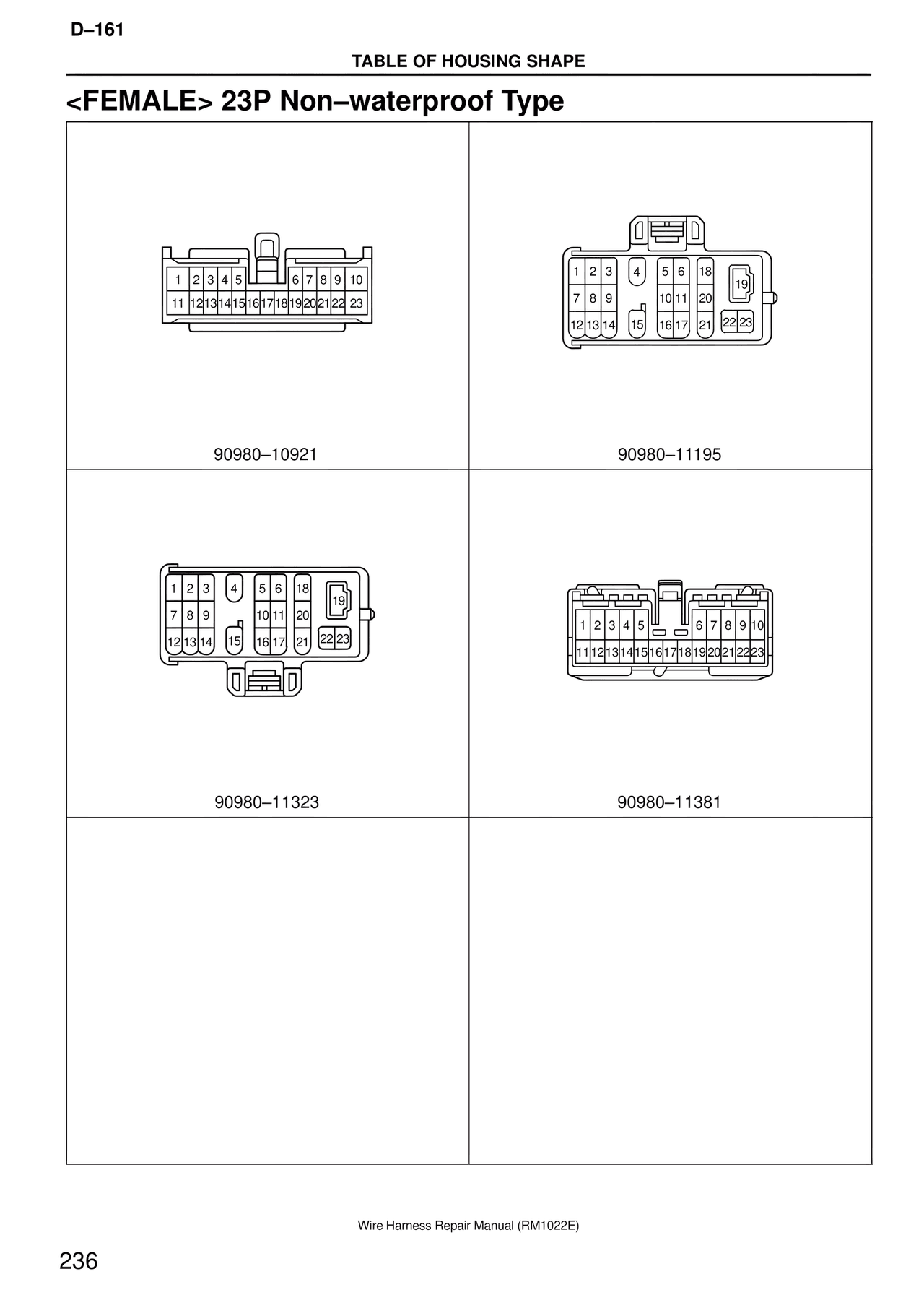

TABLE OF HOUSING SHAPE

<FEMALE> 23P Non–waterproof Type

1  2  3  4  5        6  7  8  9  10
11 12 13 14 15 16 17 18 19 20 21 22  23

90980–10921

1  2  3     4      5  6   18        19
7  8  9             10 11  20
12 13 14    15     16 17  21    22 23

90980–11195

1  2  3     4      5  6   18        19
7  8  9             10 11  20
12 13 14    15     16 17  21    22 23

90980–11323

1  2  3  4  5         6  7  8  9  10
11 12 13 14 15 16 17 18 19 20 21 22 23

90980–11381
