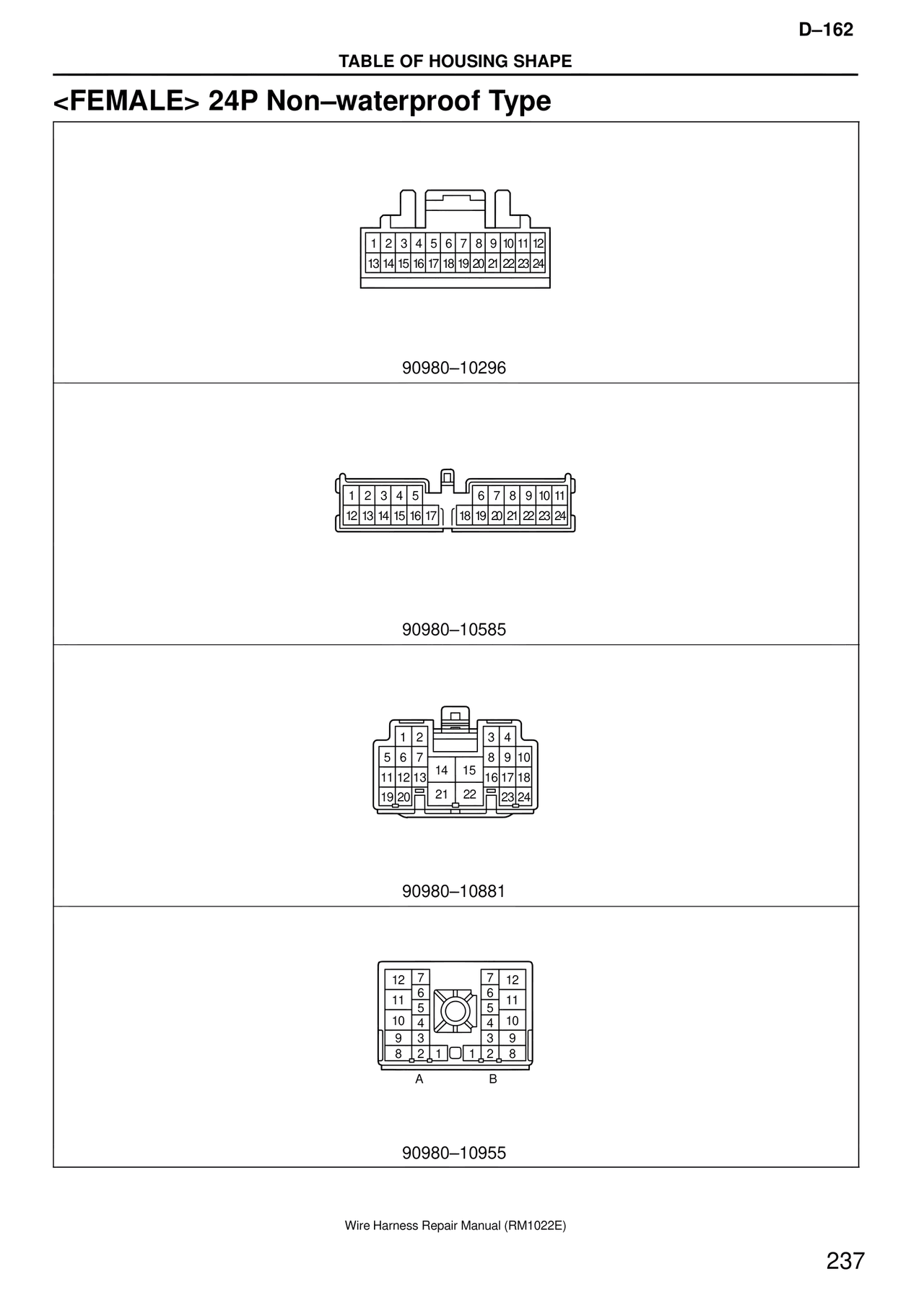

<FEMALE> 24P Non–waterproof Type — MK4 Supra Wire Harness, page 237
100%
D–162 TABLE OF HOUSING SHAPE <FEMALE> 24P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–10296 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–10585 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–10881 12 7 7 12 11 6 6 11 10 5 5 10 9 4 4 9 8 2 1 1 2 8 A B 90980–10955 Wire Harness Repair Manual (RM1022E) 237
