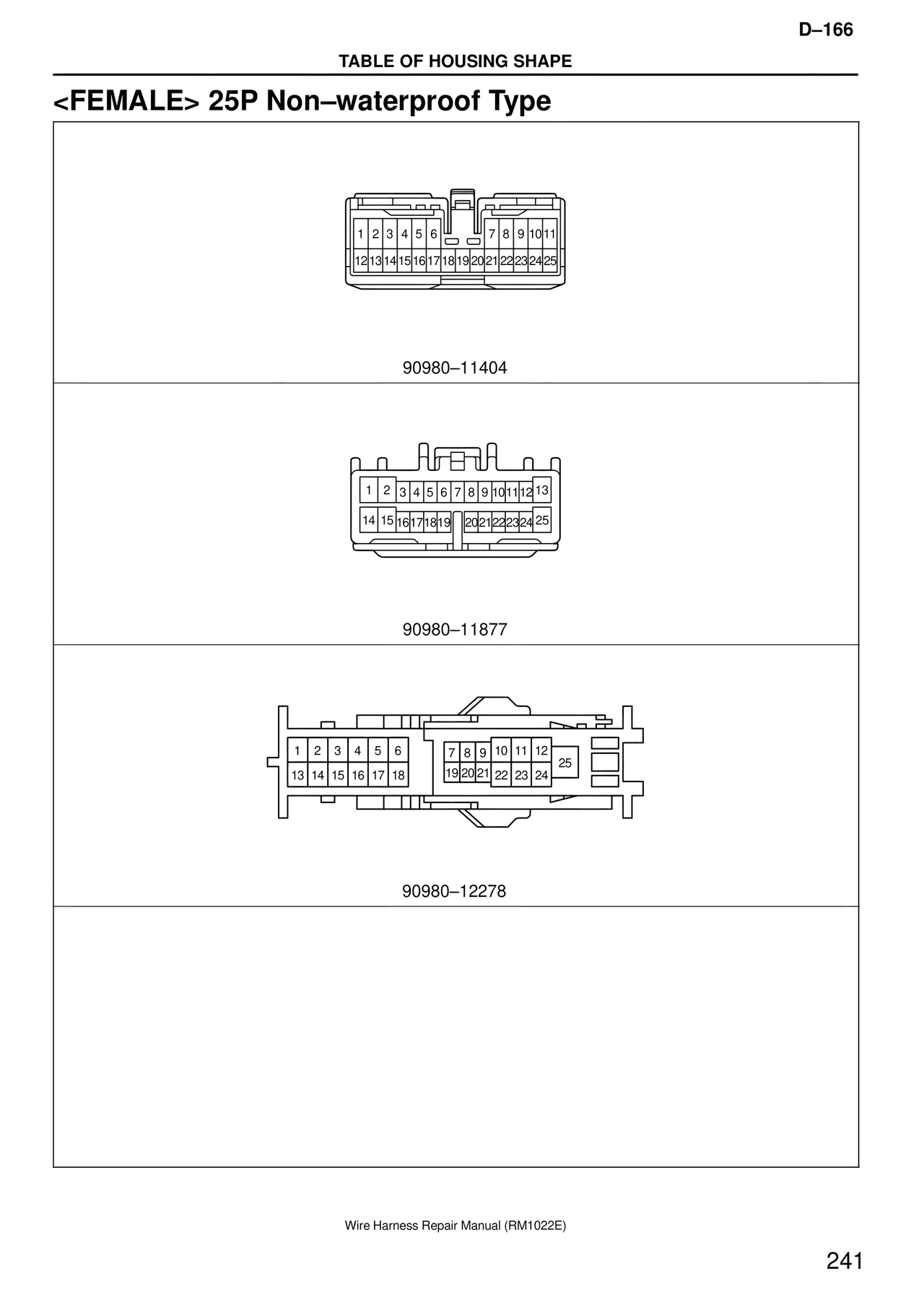

<FEMALE> 25P Non–waterproof Type — MK4 Supra Wire Harness, page 241
100%
D–166 TABLE OF HOUSING SHAPE <FEMALE> 25P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 90980–11404 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 90980–11877 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 90980–12278 Wire Harness Repair Manual (RM1022E) 241
