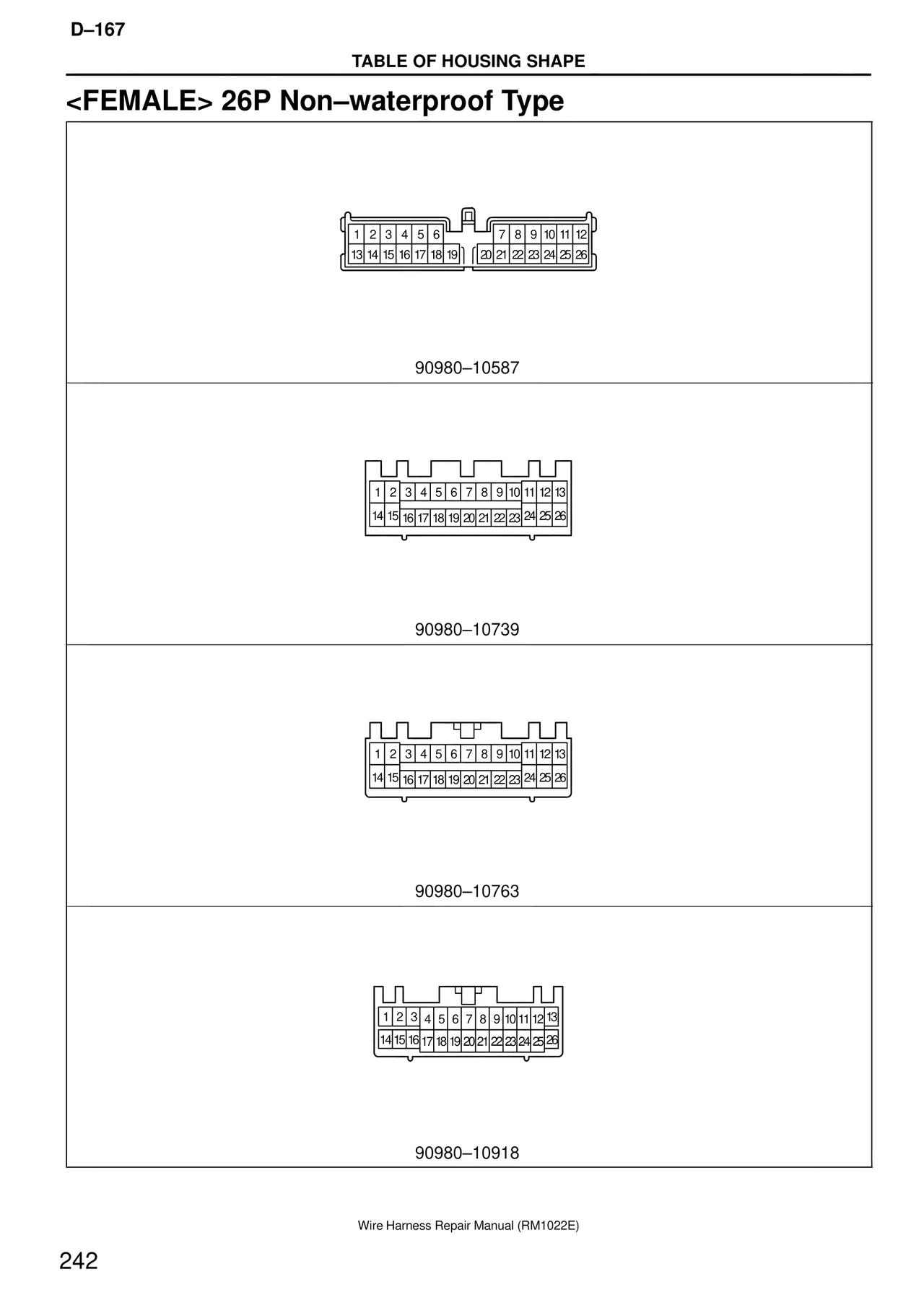

<FEMALE> 26P Non–waterproof Type — MK4 Supra Wire Harness, page 242
100%
D–167 TABLE OF HOUSING SHAPE <FEMALE> 26P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–10587 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–10739 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–10763 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–10918 Wire Harness Repair Manual (RM1022E) 242
