D–168

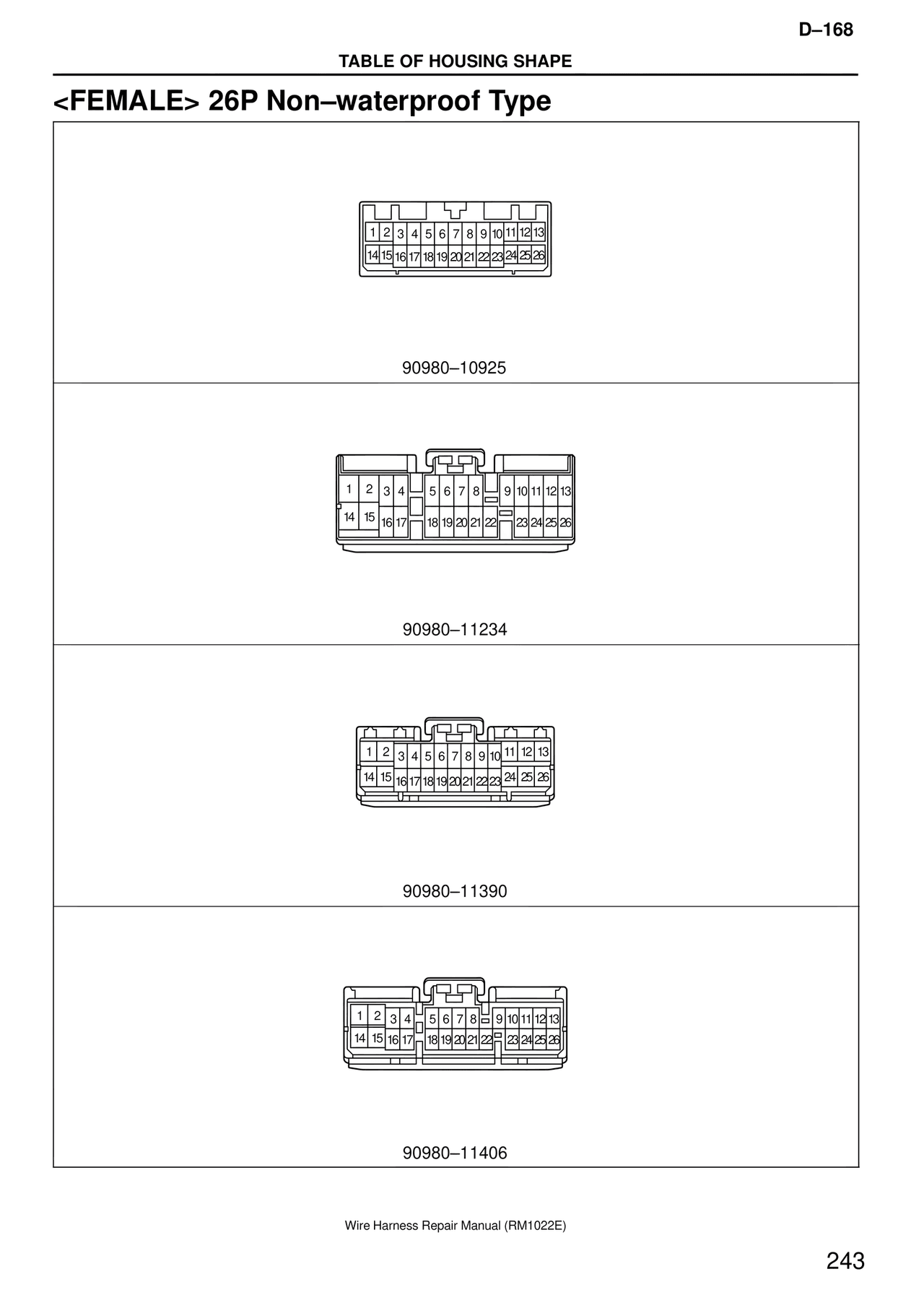

TABLE OF HOUSING SHAPE

<FEMALE> 26P Non–waterproof Type

1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25 26

90980–10925

1  2  3  4     5  6  7  8     9 10 11 12 13
14 15   16 17   18 19 20 21 22    23 24 25 26

90980–11234

1  2  3  4  5  6  7  8  9 10  11  12 13
14 15  16 17 18 19 20 21 22 23  24  25 26

90980–11390

1  2  3  4   5  6  7  8  9 10 11 12 13
14 15 16 17  18 19 20 21 22  23 24 25 26

90980–11406

Wire Harness Repair Manual (RM1022E)
