WH/Wire Harness — <female> 32P Non–waterproof Type, page 250

250 / 414

<female> 32P Non–waterproof Type — MK4 Supra Wire Harness, page 250

100%

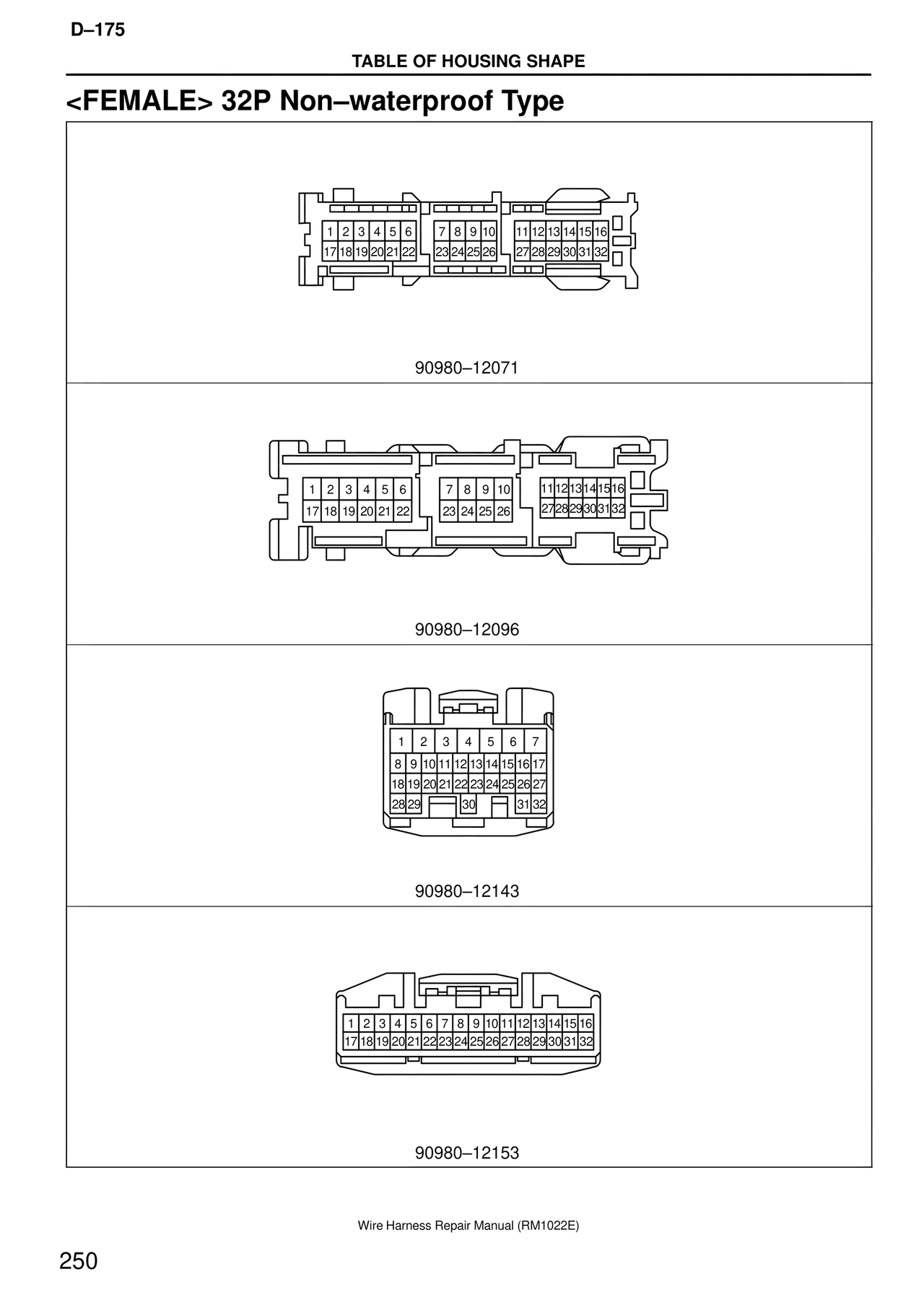

Page text (OCR transcript)

D–175

TABLE OF HOUSING SHAPE

<FEMALE> 32P Non–waterproof Type

1 2 3 4 5 6    7 8 9 10    11 12 13 14 15 16
17 18 19 20 21 22    23 24 25 26    27 28 29 30 31 32

90980–12071

1 2 3 4 5 6    7 8 9 10    11 12 13 14 15 16
17 18 19 20 21 22    23 24 25 26    27 28 29 30 31 32

90980–12096

1  2  3  4  5  6  7
8  9  10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26 27
28 29        30        31 32

90980–12143

1  2  3  4  5  6  7  8  9  10 11 12 13 14 15 16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

90980–12153

Wire Harness Repair Manual (RM1022E)
