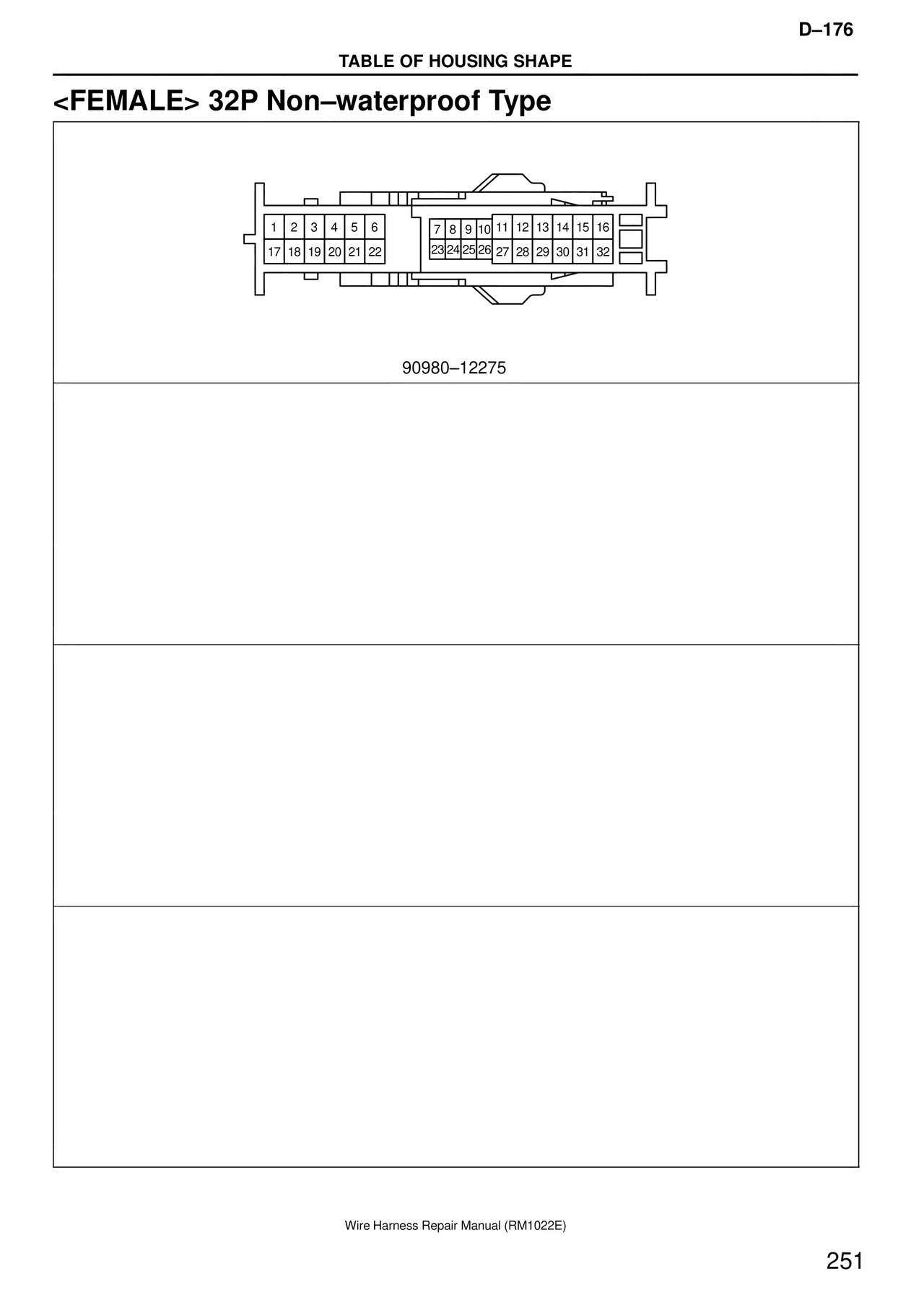

D–176 TABLE OF HOUSING SHAPE <FEMALE> 32P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 90980–12275 Wire Harness Repair Manual (RM1022E) 251
