D–182

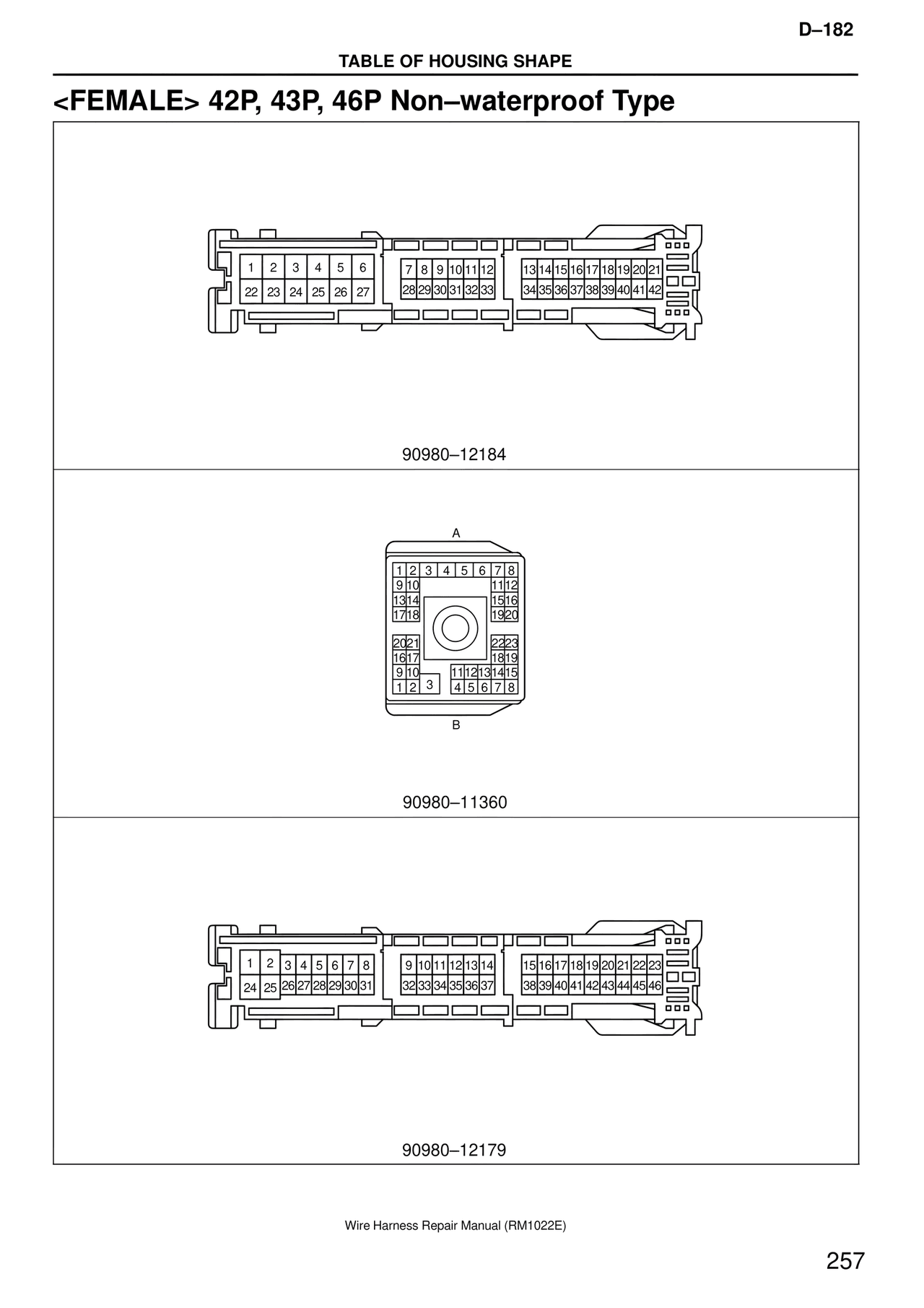

TABLE OF HOUSING SHAPE

<FEMALE> 42P, 43P, 46P Non–waterproof Type

1  2  3  4  5  6
22 23 24 25 26 27

7  8  9 10 11 12
28 29 30 31 32 33

13 14 15 16 17 18 19 20 21
34 35 36 37 38 39 40 41 42

90980–12184

A

1  2  3  4  5  6  7  8
9 10                    11 12
13 14                  15 16
17 18                  19 20

20 21                  22 23
16 17                  18 19
9 10
1  2  3     11 12 13 14 15
            4  5  6  7  8

B

90980–11360

1  2  3  4  5  6  7  8
24 25 26 27 28 29 30 31

9 10 11 12 13 14
32 33 34 35 36 37

15 16 17 18 19 20 21 22 23
38 39 40 41 42 43 44 45 46

90980–12179

Wire Harness Repair Manual (RM1022E)

257
