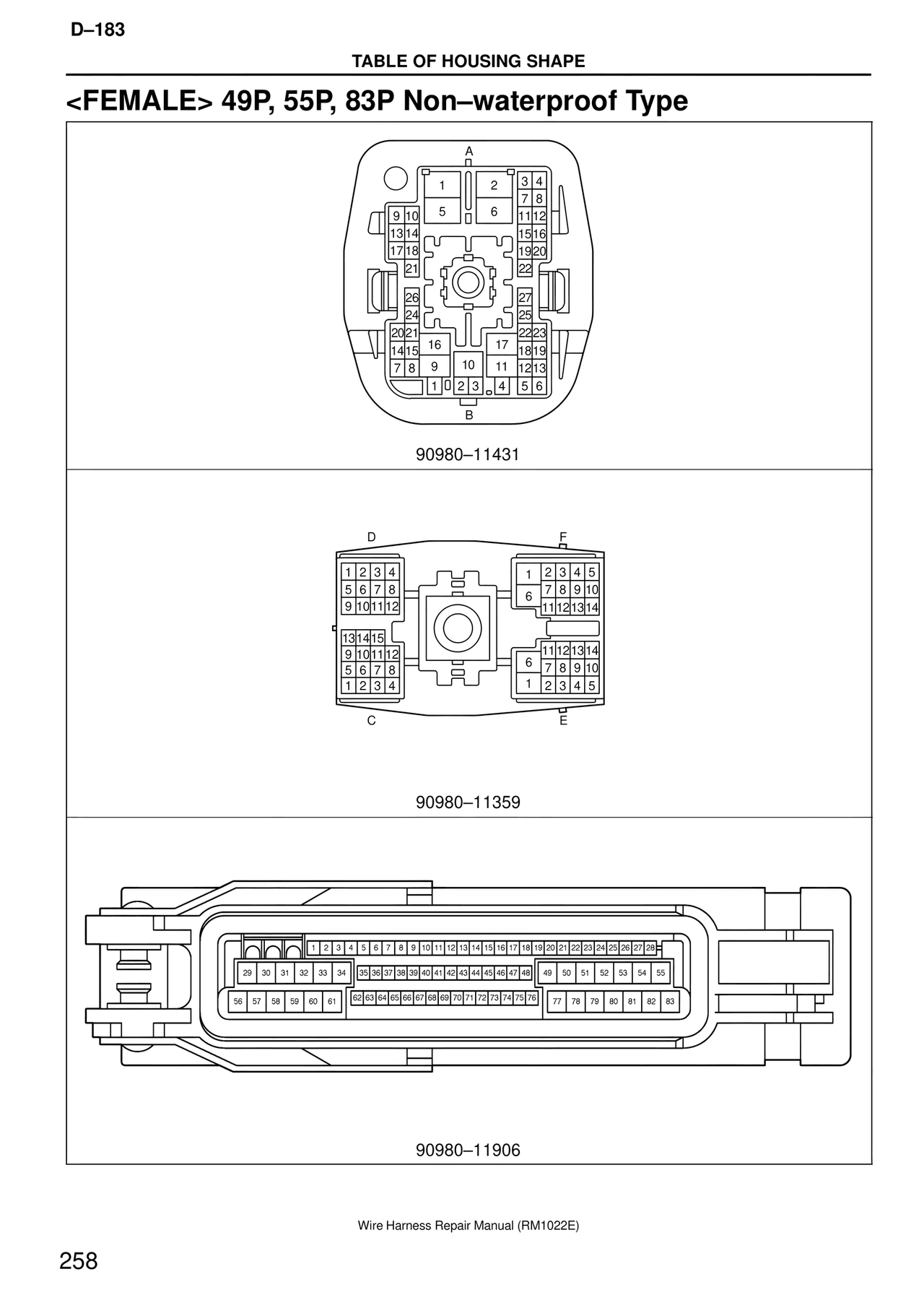

WH/Wire Harness — <female> 49P, 55P, 83P Non–waterproof Type, page 258

D–183

TABLE OF HOUSING SHAPE

<FEMALE> 49P, 55P, 83P Non–waterproof Type

A
1  2  3 4
        7 8
9 10  5    6  11 12
13 14          15 16
17 18          19 20
   21    22
26
24        27
          25
20 21    22 23
14 15  16    17  18 19
7 8   9   10   11  12 13
   1 0  2  3    4   5  6
B

90980–11431

D                    F
1  2  3  4       1  2  3  4  5
5  6  7  8    6  7  8  9  10
9 10 11 12      11 12 13 14

13 14 15      11 12 13 14
9 10 11 12   6  7  8  9  10
5  6  7  8       1  2  3  4  5
1  2  3  4    1
C                    E

90980–11359

1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
29 30 31 32 33 34  35 36 37 38 39 40 41 42 43 44 45 46 47 48  49 50 51 52 53 54 55
56 57 58 59 60 61  62 63 64 65 66 67 68 69 70 71 72 73 74 75 76  77 78 79 80 81 82 83

90980–11906

Wire Harness Repair Manual (RM1022E)
