WH/Wire Harness — <female> 88P Non–waterproof Type, page 259

D–184

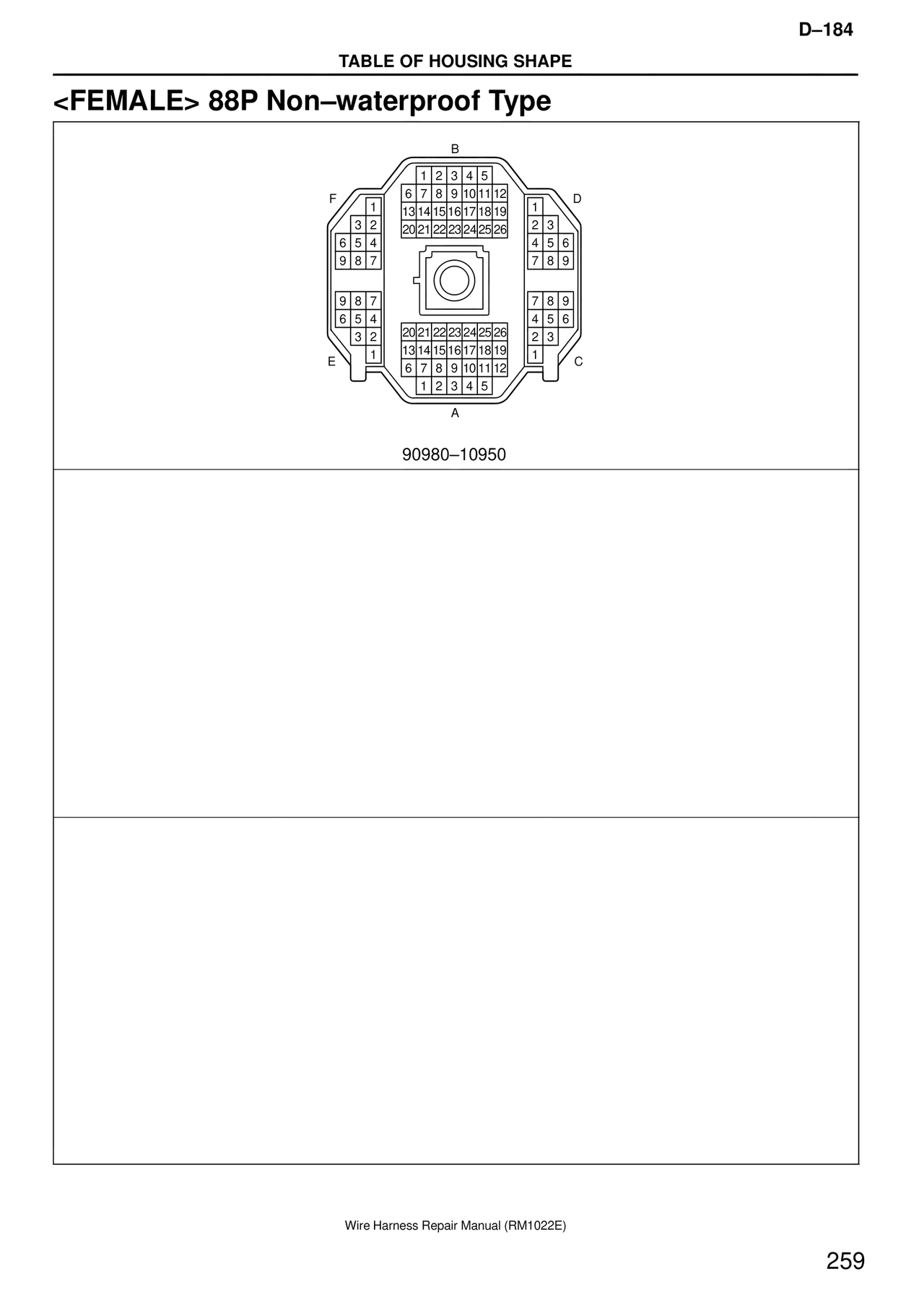

TABLE OF HOUSING SHAPE

<FEMALE> 88P Non–waterproof Type

B
1 2 3 4 5
6 7 8 9 10 11 12
13 14 15 16 17 18 19
20 21 22 23 24 25 26

F                                          D
1                                        1
3 2                                    2 3
6 5 4                              4 5 6
9 8 7                              7 8 9

9 8 7                              7 8 9
6 5 4                              4 5 6
3 2                                    2 3
1                                        1

E                                          C
20 21 22 23 24 25 26
13 14 15 16 17 18 19
6 7 8 9 10 11 12
1 2 3 4 5

A

90980–10950

Wire Harness Repair Manual (RM1022E)
