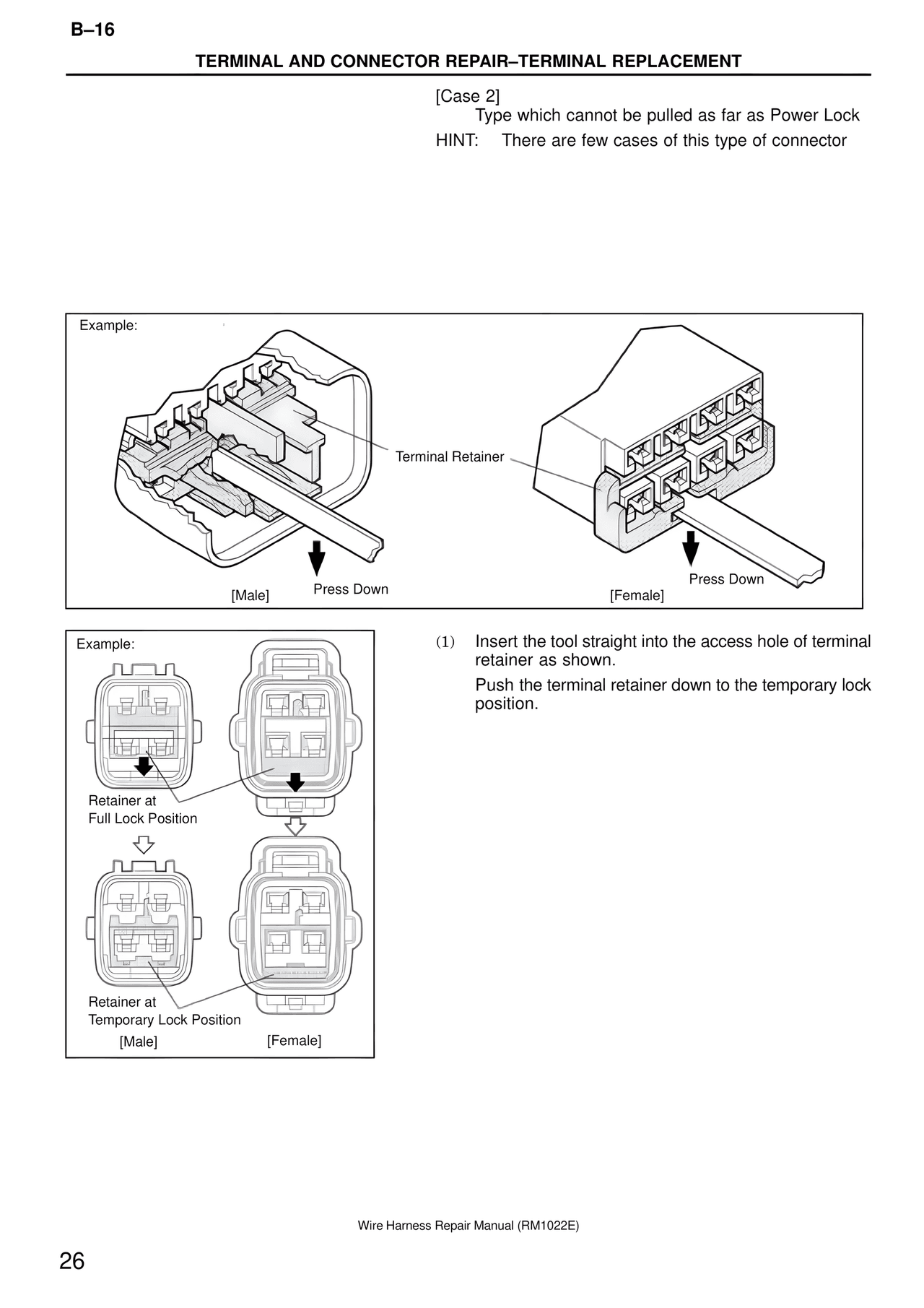

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

[Case 2]
    Type which cannot be pulled as far as Power Lock
HINT:    There are few cases of this type of connector

Example:

Terminal Retainer

[Male]    Press Down

[Female]    Press Down

Example:

Retainer at
Full Lock Position

Retainer at
Temporary Lock Position
[Male]    [Female]

(1)    Insert the tool straight into the access hole of terminal
retainer as shown.
Push the terminal retainer down to the temporary lock
position.
