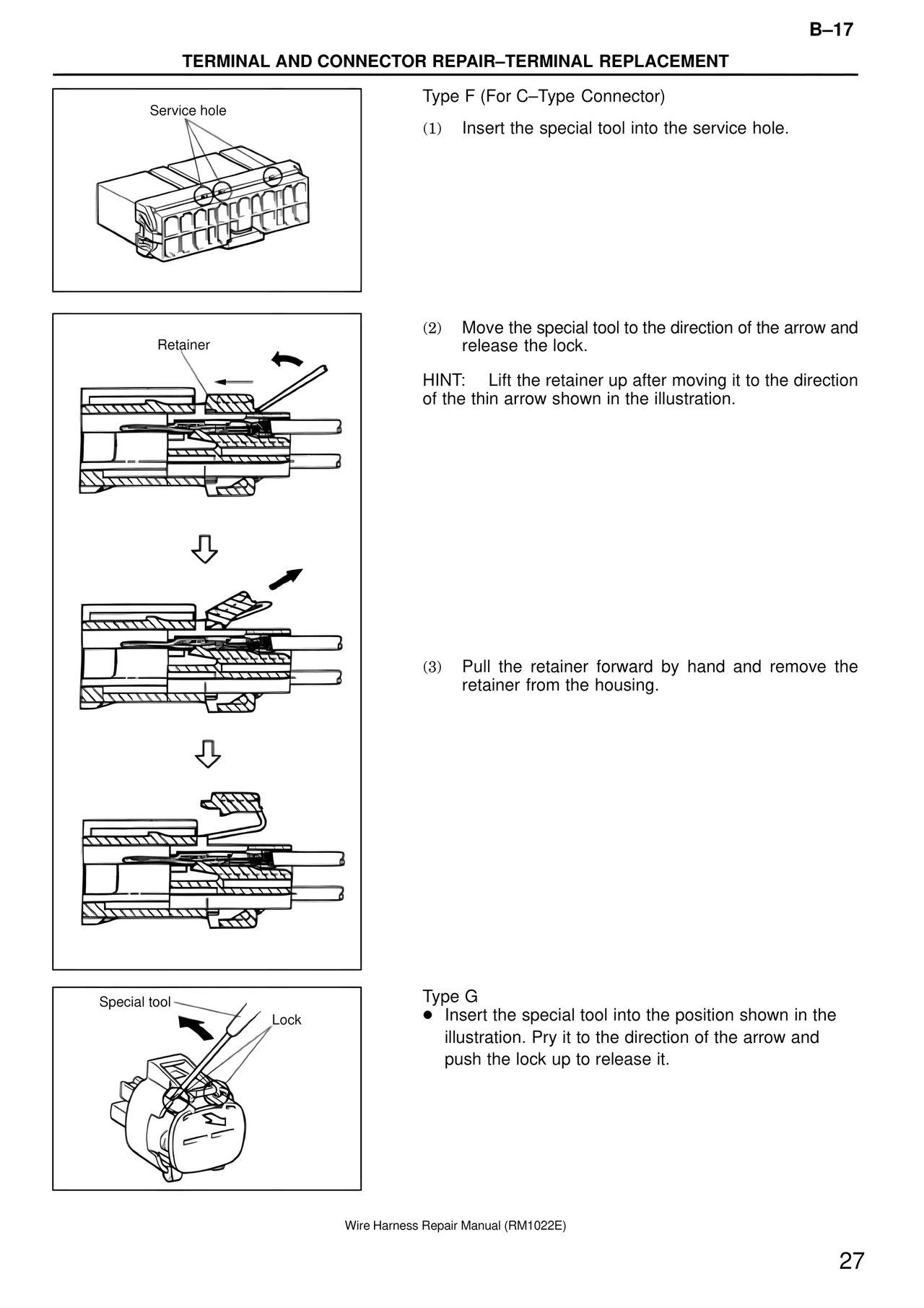

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Service hole
Type F (For C–Type Connector)
(1) Insert the special tool into the service hole.
Retainer
(2) Move the special tool to the direction of the arrow and
release the lock.
HINT: Lift the retainer up after moving it to the direction
of the thin arrow shown in the illustration.
(3) Pull the retainer forward by hand and remove the
retainer from the housing.
Special tool
Lock
Type G
● Insert the special tool into the position shown in the
illustration. Pry it to the direction of the arrow and
push the lock up to release it.
