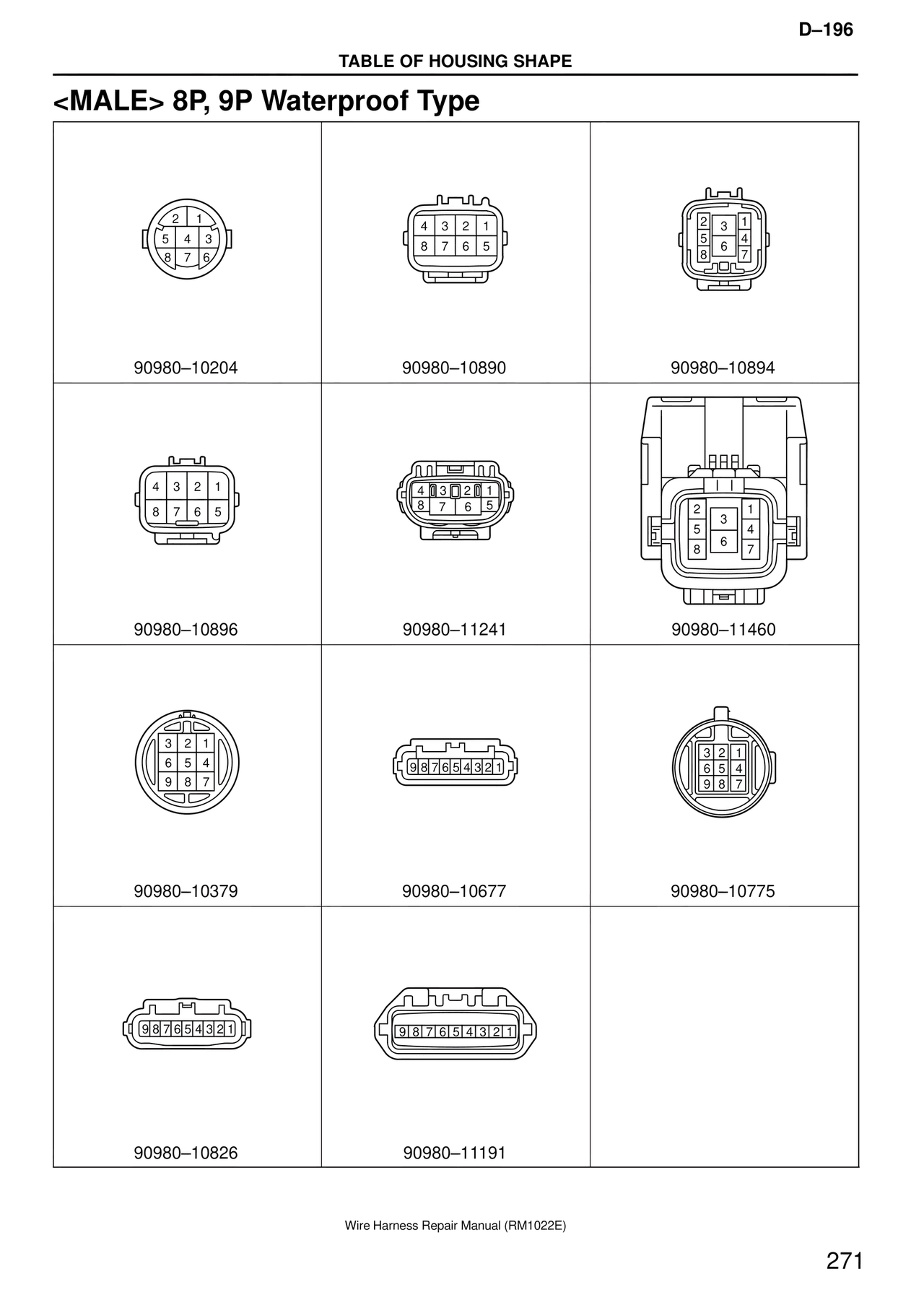

WH/Wire Harness — <male> 8P, 9P Waterproof Type, page 271

D–196

TABLE OF HOUSING SHAPE

<MALE> 8P, 9P Waterproof Type

2  1
5  4  3
8  7  6

90980–10204

4  3  2  1
8  7  6  5

90980–10890

2     1
   3
5  6  4
8        7

90980–10894

4  3  2  1
8  7  6  5

90980–10896

4  3  2  1
8  7  6  5

90980–11241

2     1
   3
5  6  4
8        7

90980–11460

3  2  1
6  5  4
9  8  7

90980–10379

9  8  7  6  5  4  3  2  1

90980–10677

3  2  1
6  5  4
9  8  7

90980–10775

9  8  7  6  5  4  3  2  1

90980–10826

9  8  7  6  5  4  3  2  1

90980–11191

Wire Harness Repair Manual (RM1022E)

271
