WH/Wire Harness — <male> 11P, 12P, 13P, 15P Waterproof Type, page 272

D–197

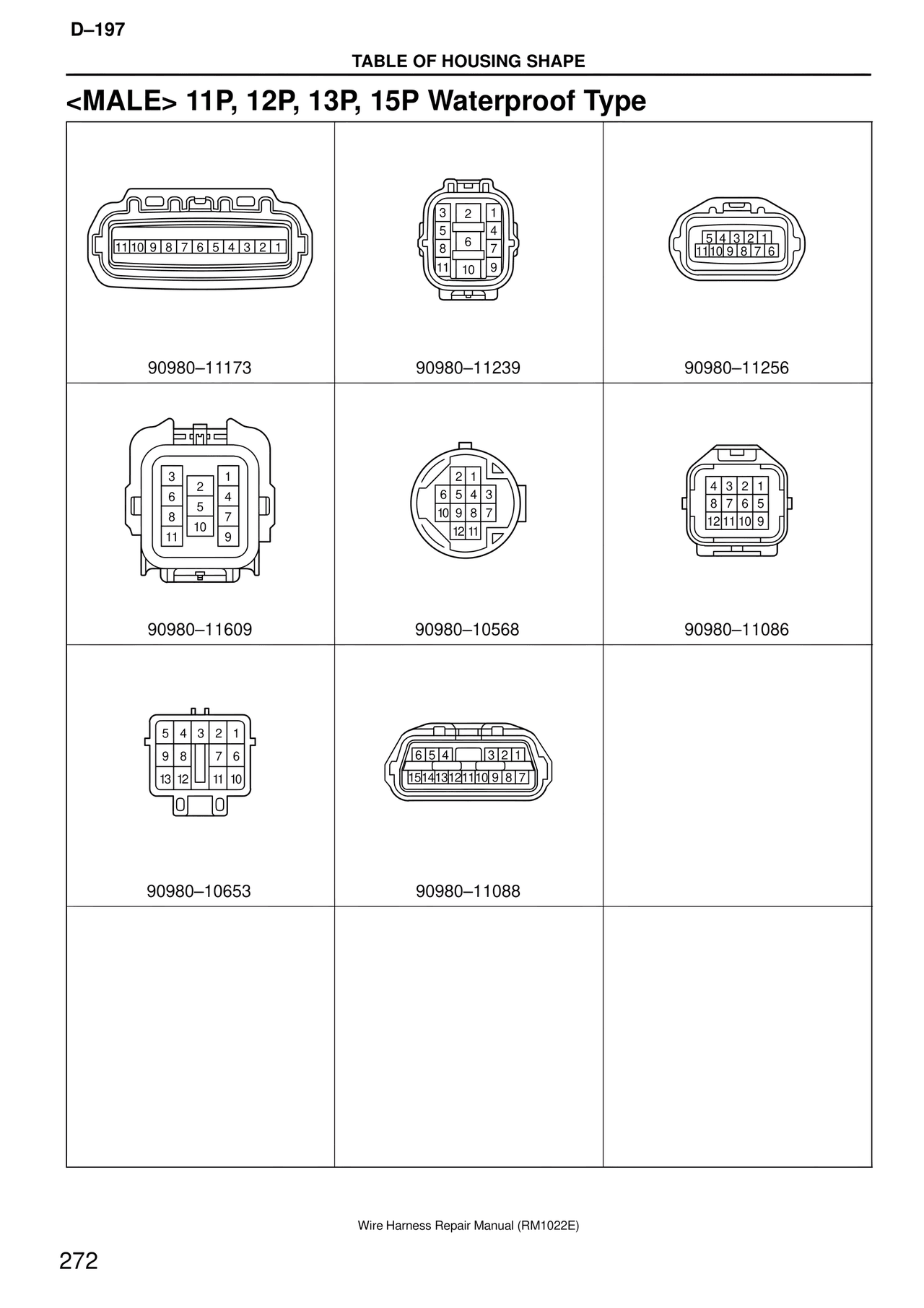

TABLE OF HOUSING SHAPE

<MALE> 11P, 12P, 13P, 15P Waterproof Type

11 10 9 8 7 6 5 4 3 2 1

90980–11173

3  2  1
5     4
8  6  7
11  10  9

90980–11239

5 4 3 2 1
11 10 9 8 7 6

90980–11256

3     1
6  2  4
8  5  7
11  10  9

90980–11609

2     1
6  5  4  3
10  9  8  7
12  11

90980–10568

4  3  2  1
8  7  6  5
12  11  10  9

90980–11086

5  4  3  2  1
9  8     7  6
13  12  11  10

90980–10653

6 5 4     3 2 1
15 14 13 12 11 10 9 8 7

90980–11088
