WH/Wire Harness — <male> 16P, 17P Waterproof Type, page 273

D–198

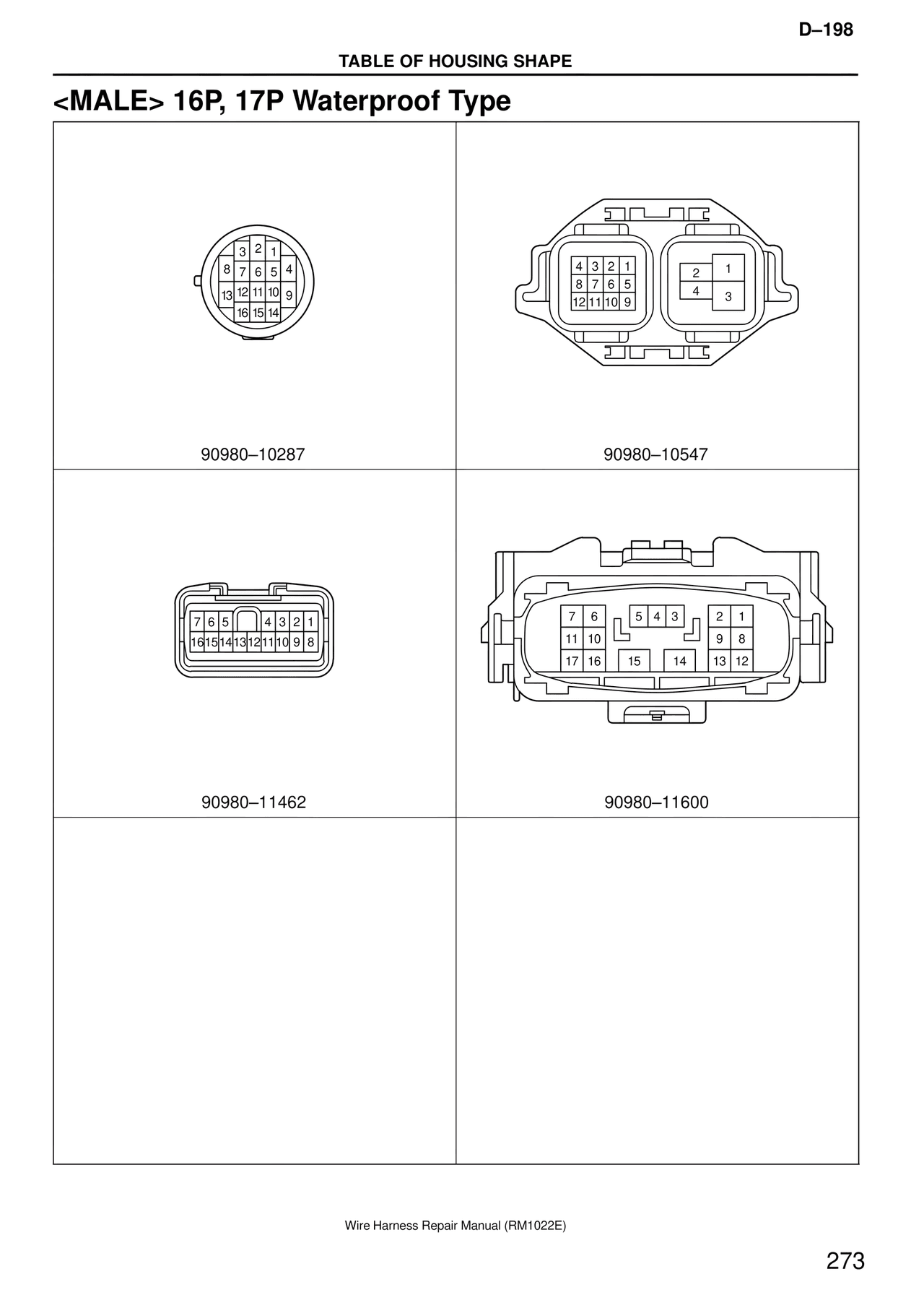

TABLE OF HOUSING SHAPE

<MALE> 16P, 17P Waterproof Type

3 2 1
8 7 6 5 4
13 12 11 10 9
16 15 14

90980–10287

4 3 2 1
8 7 6 5
12 11 10 9

2 1
4
3

90980–10547

7 6 5 4 3 2 1
16 15 14 13 12 11 10 9 8

90980–11462

7 6 5 4 3 2 1
11 10 9 8
17 16 15 14 13 12

90980–11600

Wire Harness Repair Manual (RM1022E)
