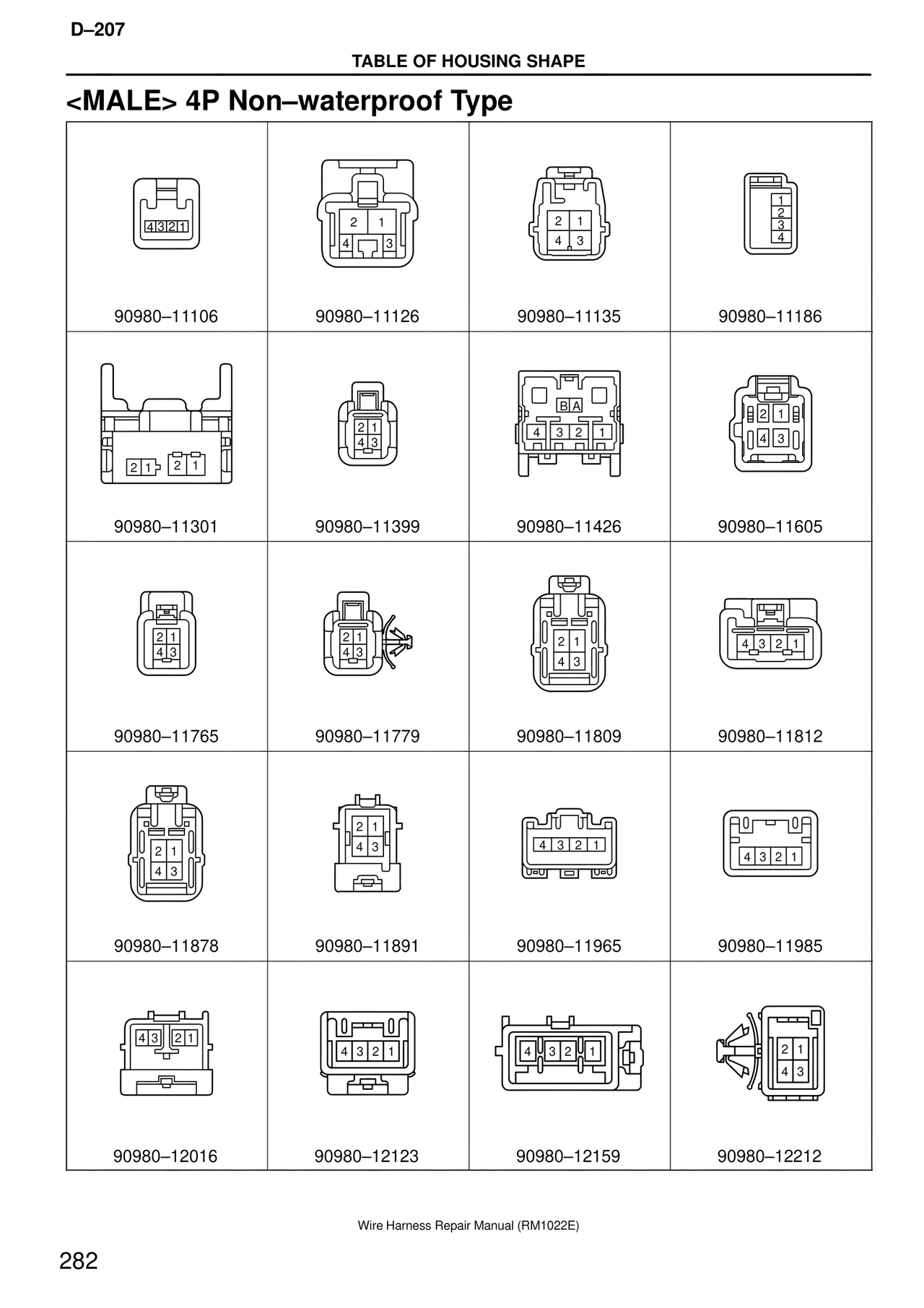

WH/Wire Harness — <male> 4P Non–waterproof Type, page 282

D–207

TABLE OF HOUSING SHAPE

<MALE> 4P Non–waterproof Type

4 3 2 1
90980–11106

2  1
4     3
90980–11126

2  1
4  3
90980–11135

1
2
3
4
90980–11186

2 1   2  1
90980–11301

2 1
4 3
90980–11399

B A
4  3  2  1
90980–11426

2  1
4  3
90980–11605

2 1
4 3
90980–11765

2 1
4 3
90980–11779

2  1
4  3
90980–11809

4  3  2  1
90980–11812

2  1
4  3
90980–11878

2  1
4  3
90980–11891

4  3  2  1
90980–11965

4  3  2  1
90980–11985

4 3  2 1
90980–12016

4  3  2  1
90980–12123

4  3  2  1
90980–12159

2  1
4  3
90980–12212

Wire Harness Repair Manual (RM1022E)

282
