D–208

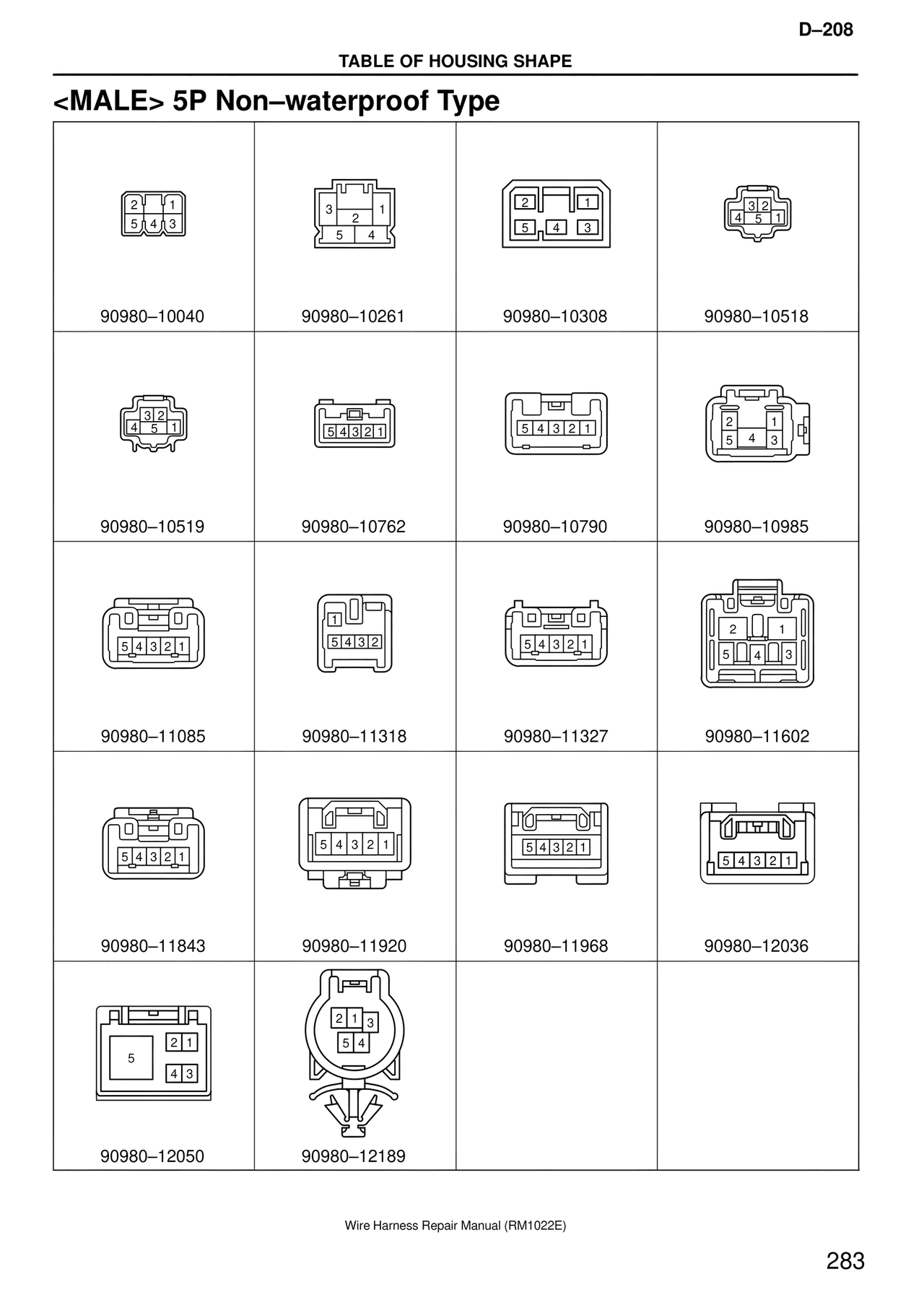

TABLE OF HOUSING SHAPE

<MALE> 5P Non–waterproof Type

2  1
5 4 3

90980–10040

3      1
   2
5    4

90980–10261

2      1
5   4   3

90980–10308

3 2
4 5 1

90980–10518

3 2
4 5 1

90980–10519

5 4 3 2 1

90980–10762

5 4 3 2 1

90980–10790

2      1
5    4    3

90980–10985

5 4 3 2 1

90980–11085

1
5 4 3 2

90980–11318

5 4 3 2 1

90980–11327

2      1
5    4    3

90980–11602

5 4 3 2 1

90980–11843

5 4 3 2 1

90980–11920

5 4 3 2 1

90980–11968

5 4 3 2 1

90980–12036

5
2 1
4 3

90980–12050

2 1 3
5 4

90980–12189

Wire Harness Repair Manual (RM1022E)

283
