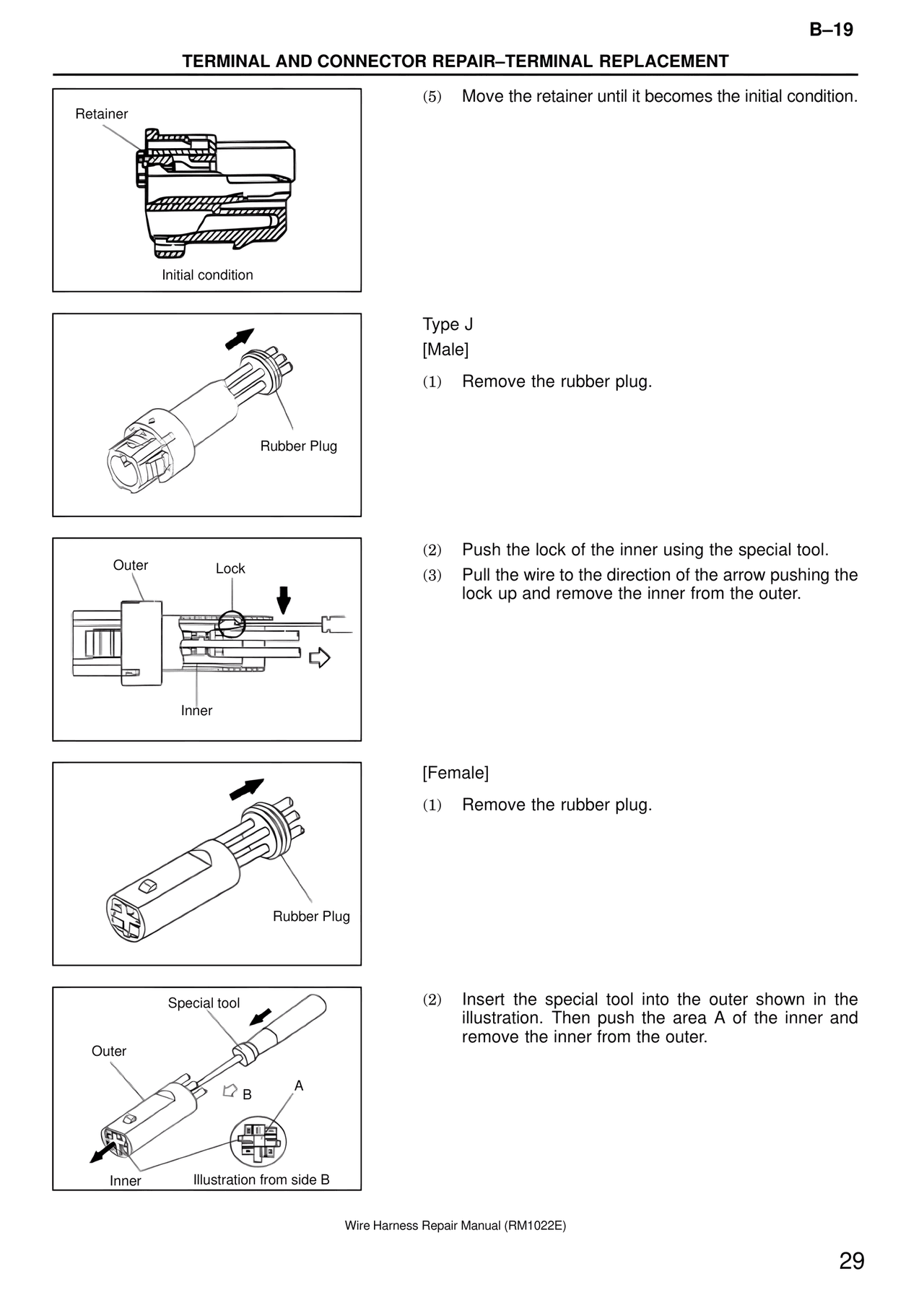

B–19 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Retainer Initial condition (5) Move the retainer until it becomes the initial condition. Rubber Plug Type J [Male] (1) Remove the rubber plug. Outer Lock Inner (2) Push the lock of the inner using the special tool. (3) Pull the wire to the direction of the arrow pushing the lock up and remove the inner from the outer. Rubber Plug [Female] (1) Remove the rubber plug. Special tool Outer B A Inner Illustration from side B (2) Insert the special tool into the outer shown in the illustration. Then push the area A of the inner and remove the inner from the outer. Wire Harness Repair Manual (RM1022E) 29
