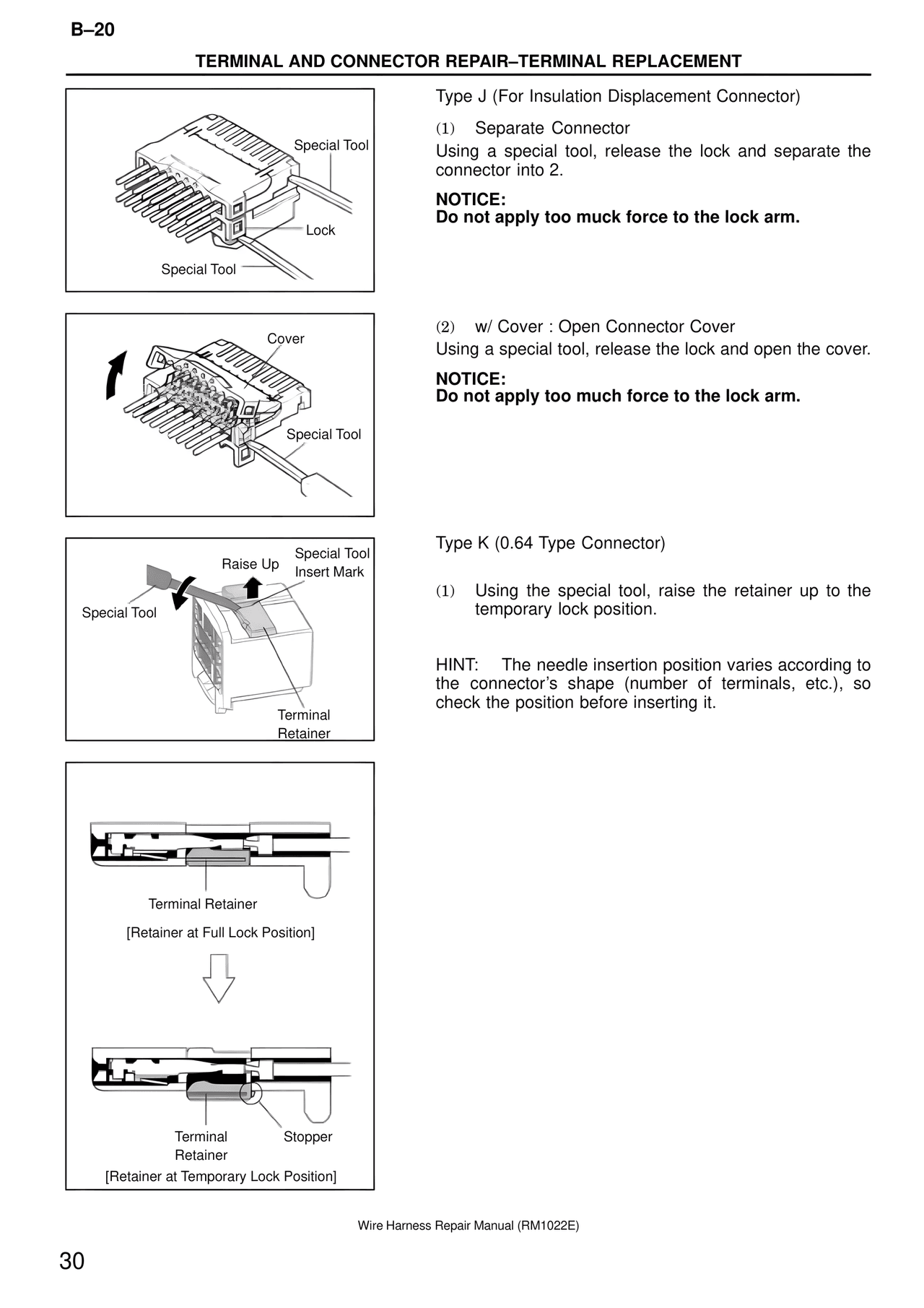

B–20
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Special Tool
Lock
Special Tool
Type J (For Insulation Displacement Connector)
(1) Separate Connector
Using a special tool, release the lock and separate the
connector into 2.
NOTICE:
Do not apply too muck force to the lock arm.
Cover
Special Tool
(2) w/ Cover : Open Connector Cover
Using a special tool, release the lock and open the cover.
NOTICE:
Do not apply too much force to the lock arm.
Raise Up Special Tool
Insert Mark
Special Tool
Terminal
Retainer
Type K (0.64 Type Connector)
(1) Using the special tool, raise the retainer up to the
temporary lock position.
HINT: The needle insertion position varies according to
the connector's shape (number of terminals, etc.), so
check the position before inserting it.
Terminal Retainer
[Retainer at Full Lock Position]
Terminal Stopper
Retainer
[Retainer at Temporary Lock Position]
Wire Harness Repair Manual (RM1022E)
30
