D–220

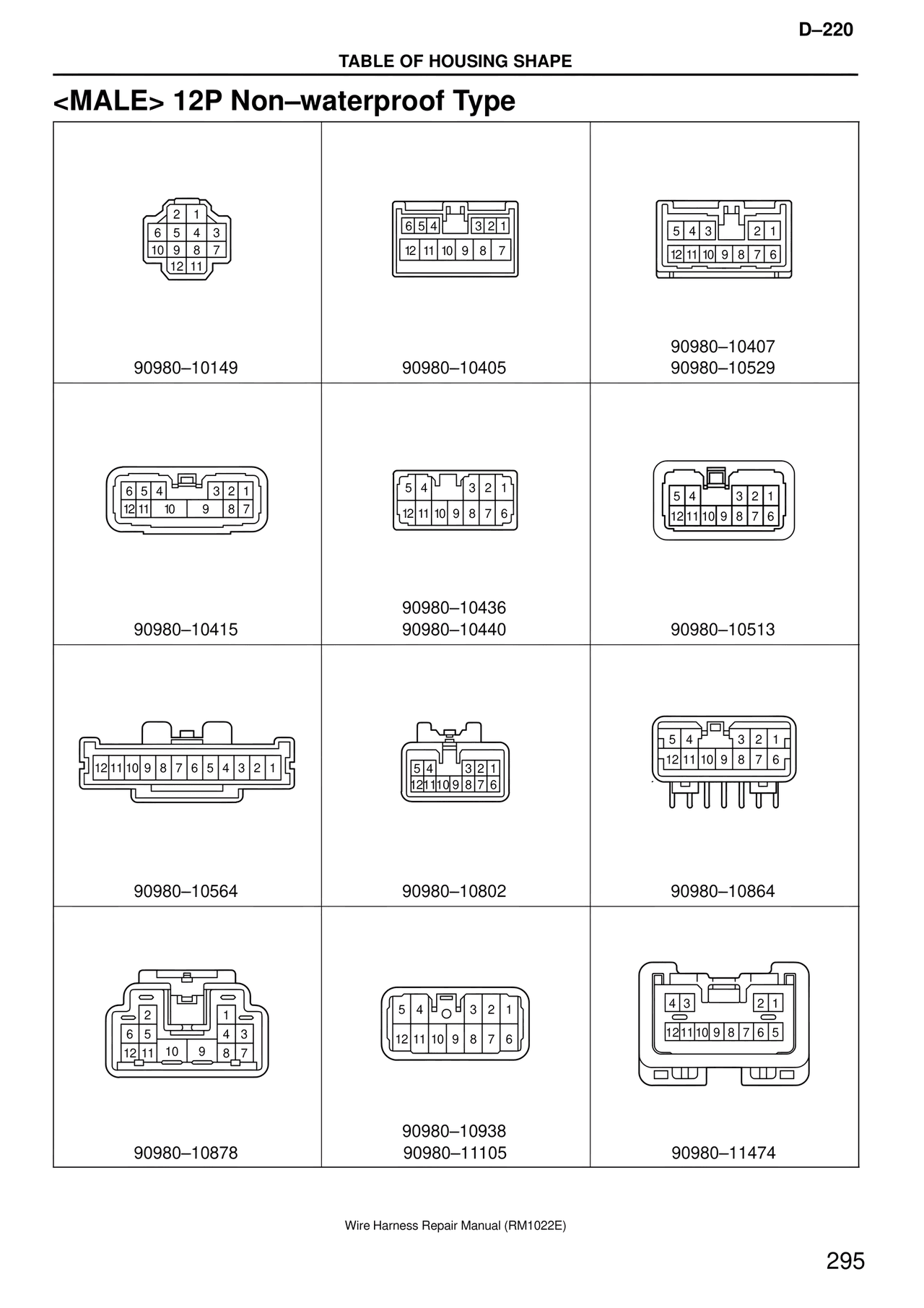

TABLE OF HOUSING SHAPE
<MALE> 12P Non–waterproof Type
2 1
6 5 4 3
10 9 8 7
12 11
90980–10149
6 5 4 3 2 1
12 11 10 9 8 7
90980–10405
5 4 3 2 1
12 11 10 9 8 7 6
90980–10407
90980–10529
6 5 4 3 2 1
12 11 10 9 8 7
90980–10415
5 4 3 2 1
12 11 10 9 8 7 6
90980–10436
90980–10440
5 4 3 2 1
12 11 10 9 8 7 6
90980–10513
12 11 10 9 8 7 6 5 4 3 2 1
90980–10564
5 4 3 2 1
12 11 10 9 8 7 6
90980–10802
5 4 3 2 1
12 11 10 9 8 7 6
90980–10864
2 1
6 5 4 3
12 11 10 9 8 7
90980–10878
5 4 o 3 2 1
12 11 10 9 8 7 6
90980–10938
90980–11105
4 3 2 1
12 11 10 9 8 7 6 5
90980–11474
Wire Harness Repair Manual (RM1022E)
295
