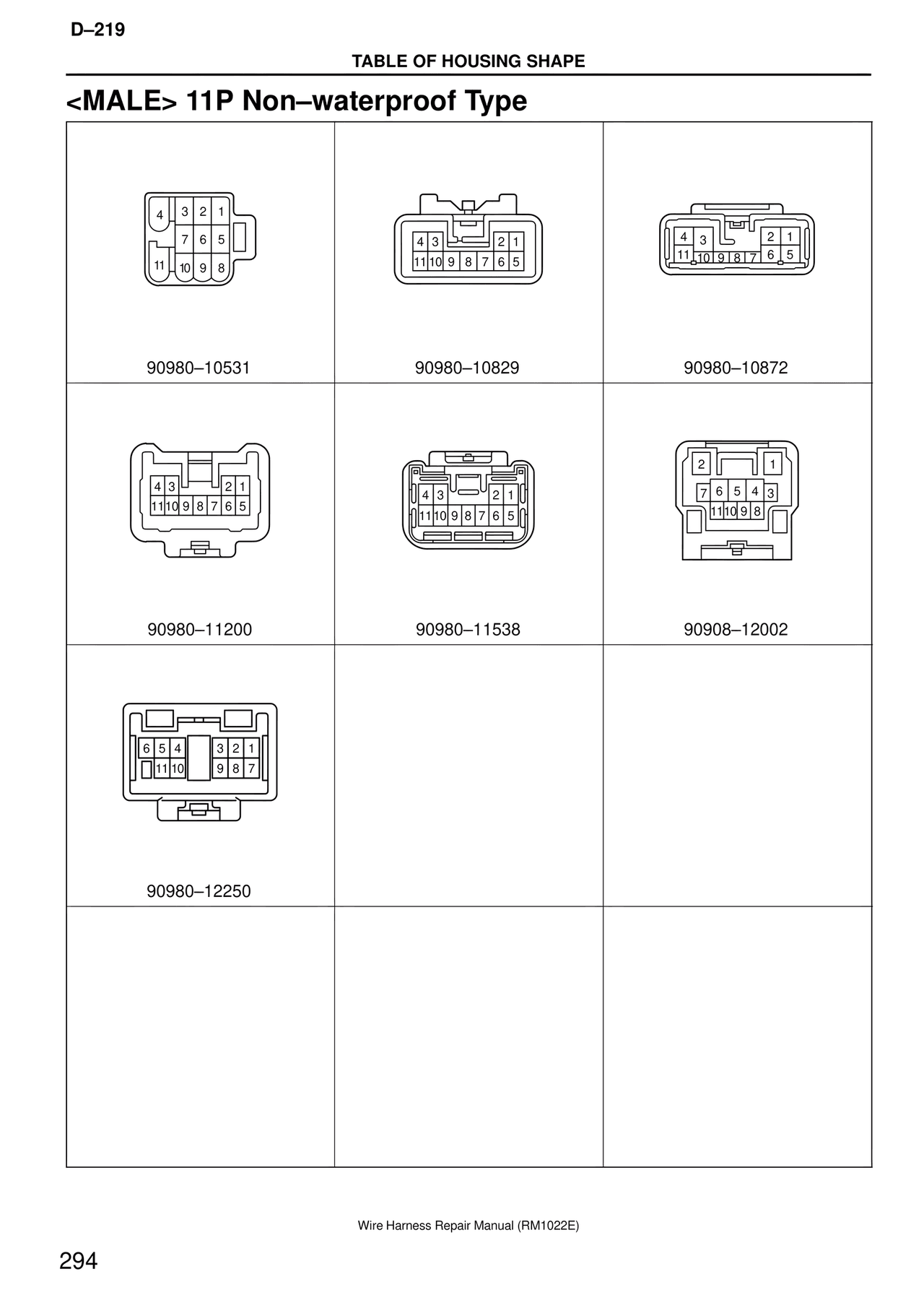

D–219

TABLE OF HOUSING SHAPE

<MALE> 11P Non–waterproof Type

4  3  2  1
7  6  5
11  10  9  8

90980–10531

4 3       2 1
11 10  9  8  7  6  5

90980–10829

4  3       2  1
11  10  9  8  7  6  5

90980–10872

4 3       2 1
11 10 9 8 7 6 5

90980–11200

4 3       2 1
11 10 9 8 7 6 5

90980–11538

2         1
7  6  5  4  3
11  10  9  8

90908–12002

6  5  4       3  2  1
11  10       9  8  7

90980–12250
