WH/Wire Harness — <male> 13P Non-waterproof Type, page 297

D–222

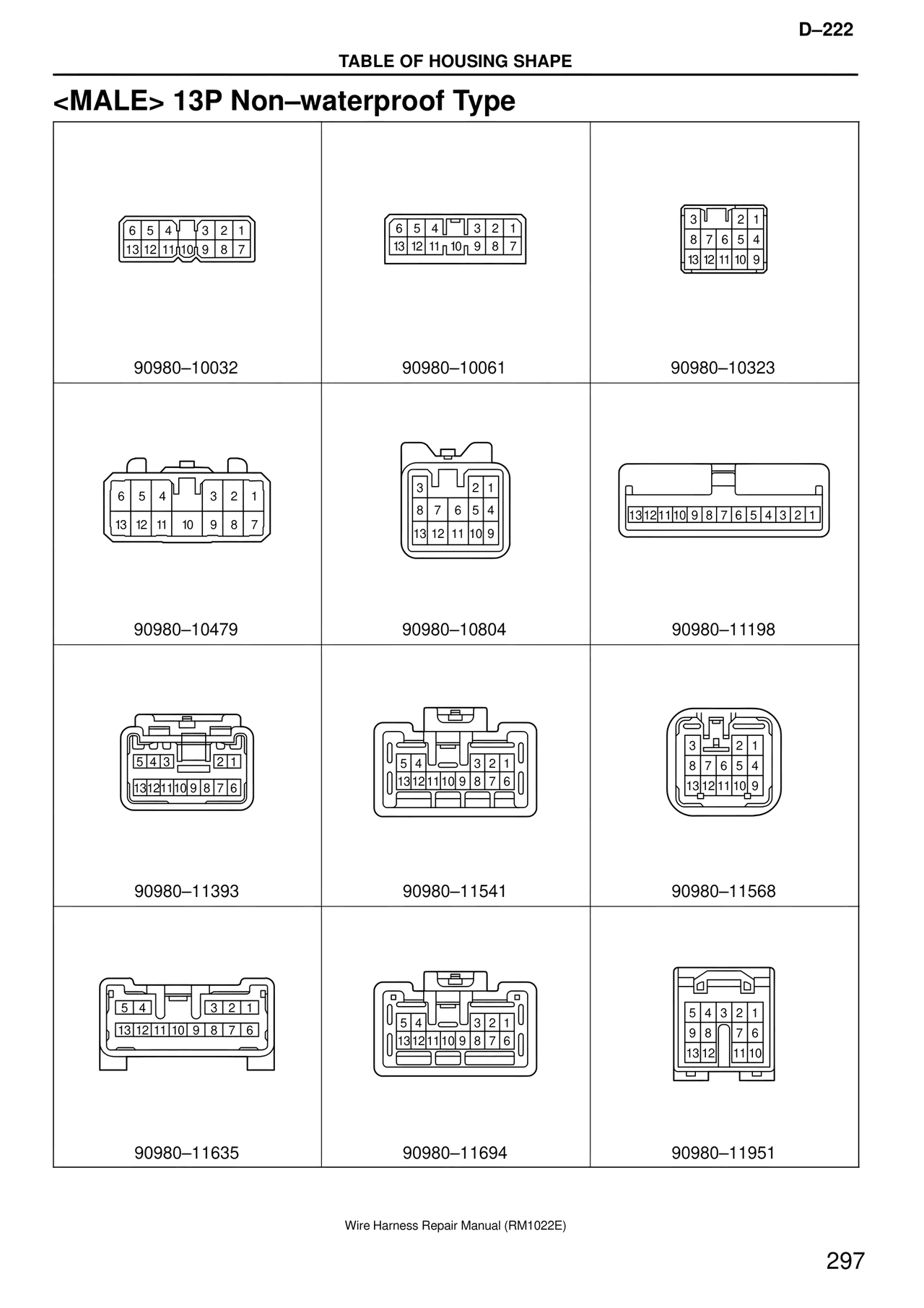

TABLE OF HOUSING SHAPE

<MALE> 13P Non–waterproof Type

6 5 4  3 2 1
13 12 11 10 9 8 7

90980–10032

6 5 4  3 2 1
13 12 11 10 9 8 7

90980–10061

3   2 1
8 7 6 5 4
13 12 11 10 9

90980–10323

6 5 4  3 2 1
13 12 11 10 9 8 7

90980–10479

3   2 1
8 7 6 5 4
13 12 11 10 9

90980–10804

13 12 11 10 9 8 7 6 5 4 3 2 1

90980–11198

5 4 3  2 1
13 12 11 10 9 8 7 6

90980–11393

5 4  3 2 1
13 12 11 10 9 8 7 6

90980–11541

3   2 1
8 7 6 5 4
13 12 11 10 9

90980–11568

5 4  3 2 1
13 12 11 10 9 8 7 6

90980–11635

5 4  3 2 1
13 12 11 10 9 8 7 6

90980–11694

5 4 3 2 1
9 8  7 6
13 12  11 10

90980–11951

Wire Harness Repair Manual (RM1022E)
