D–223

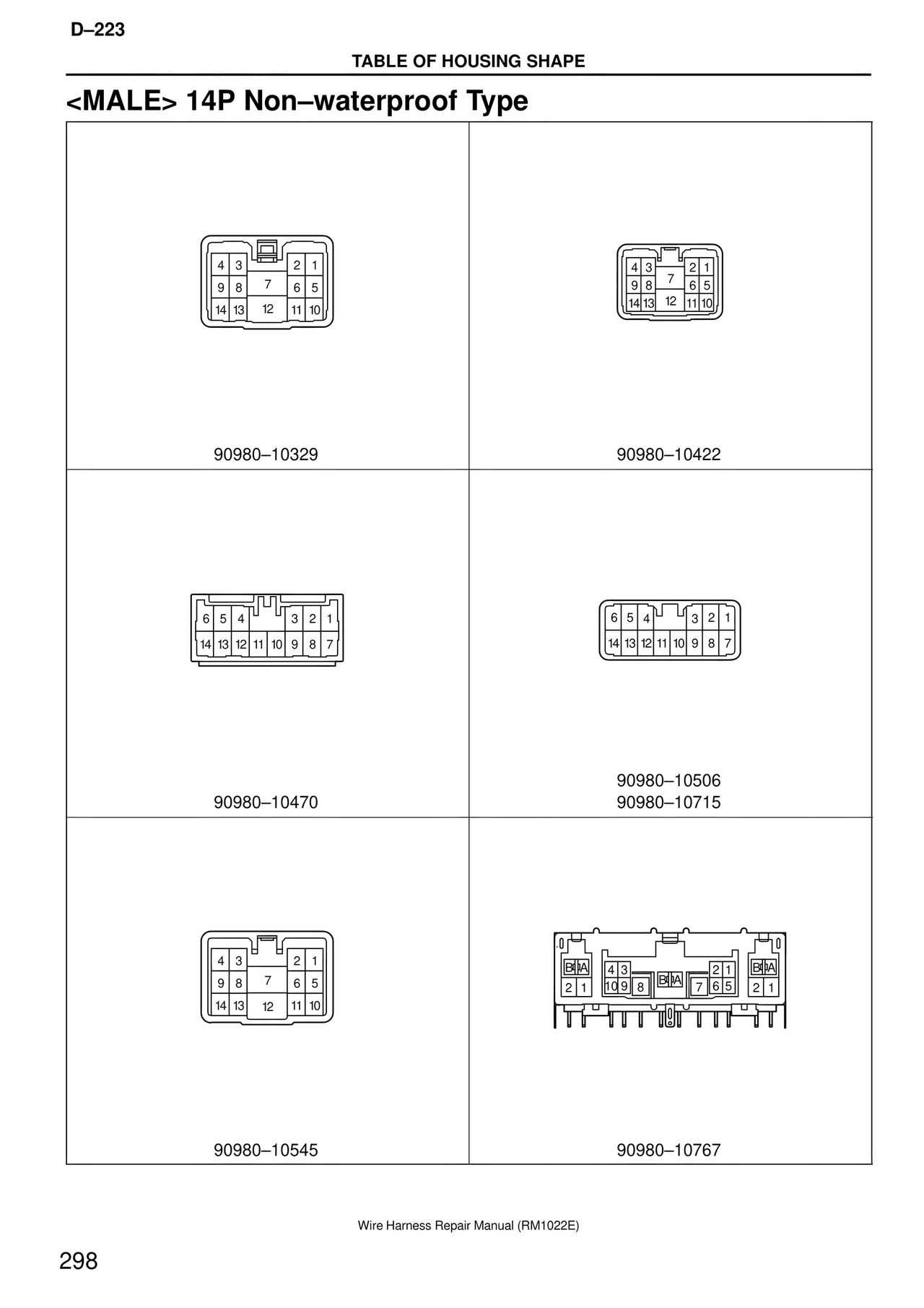

TABLE OF HOUSING SHAPE

<MALE> 14P Non–waterproof Type

4  3       2  1
9  8    7    6  5
14 13    12   11 10

90980–10329

4  3    7    2  1
9  8       6  5
14 13   12   11 10

90980–10422

6  5  4       3  2  1
14 13 12 11 10  9  8  7

90980–10470

6  5  4       3  2  1
14 13 12 11 10  9  8  7

90980–10506
90980–10715

4  3       2  1
9  8    7    6  5
14 13    12   11 10

90980–10545

B A       B A       B A
4  3       2  1
2  1   10 9  8    7  6 5    2  1

90980–10767

Wire Harness Repair Manual (RM1022E)

298
