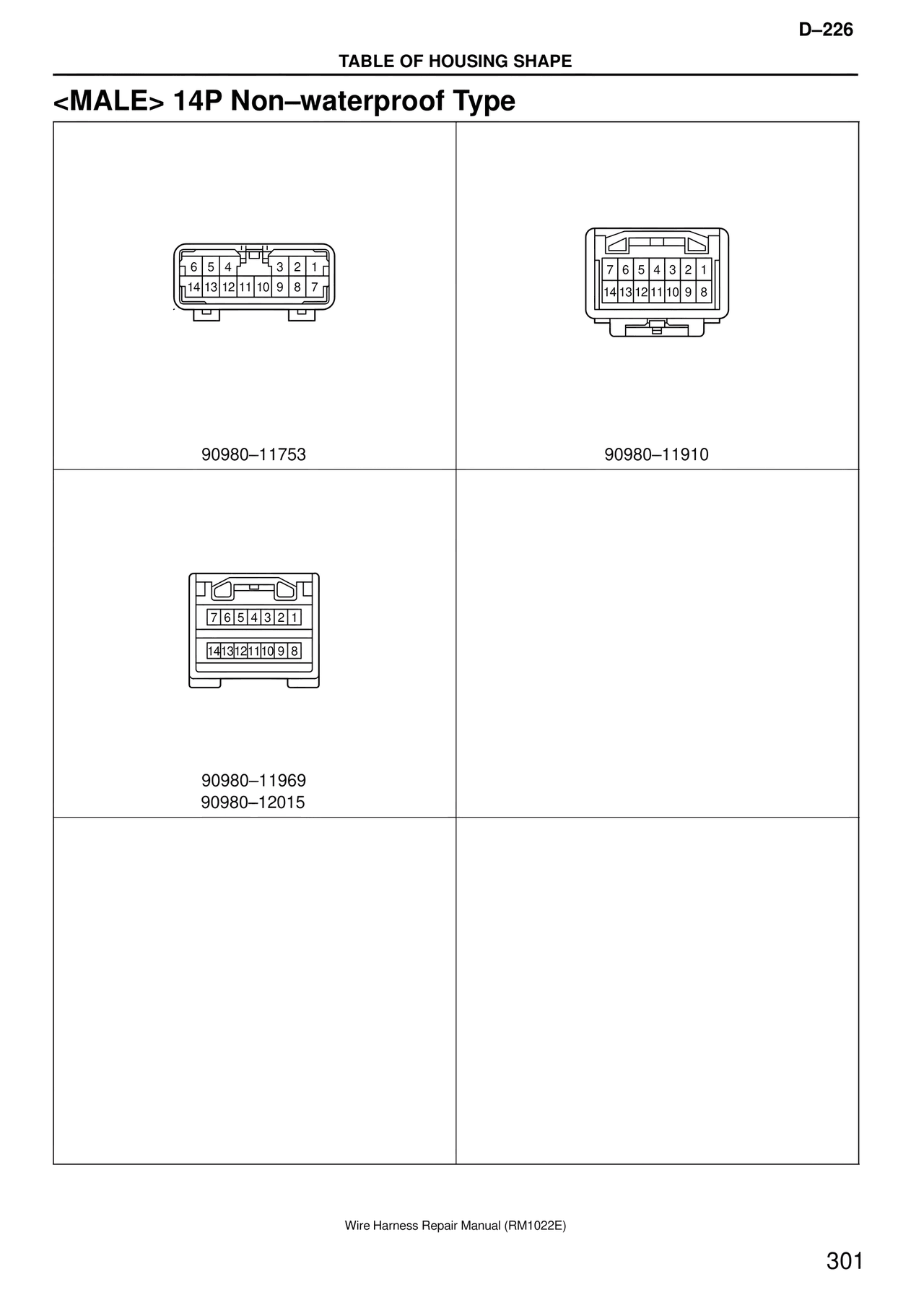

D–226 TABLE OF HOUSING SHAPE <MALE> 14P Non–waterproof Type 6 5 4 3 2 1 14 13 12 11 10 9 8 7 90980–11753 7 6 5 4 3 2 1 14 13 12 11 10 9 8 90980–11910 7 6 5 4 3 2 1 14 13 12 11 10 9 8 90980–11969 90980–12015 Wire Harness Repair Manual (RM1022E) 301
