D–225

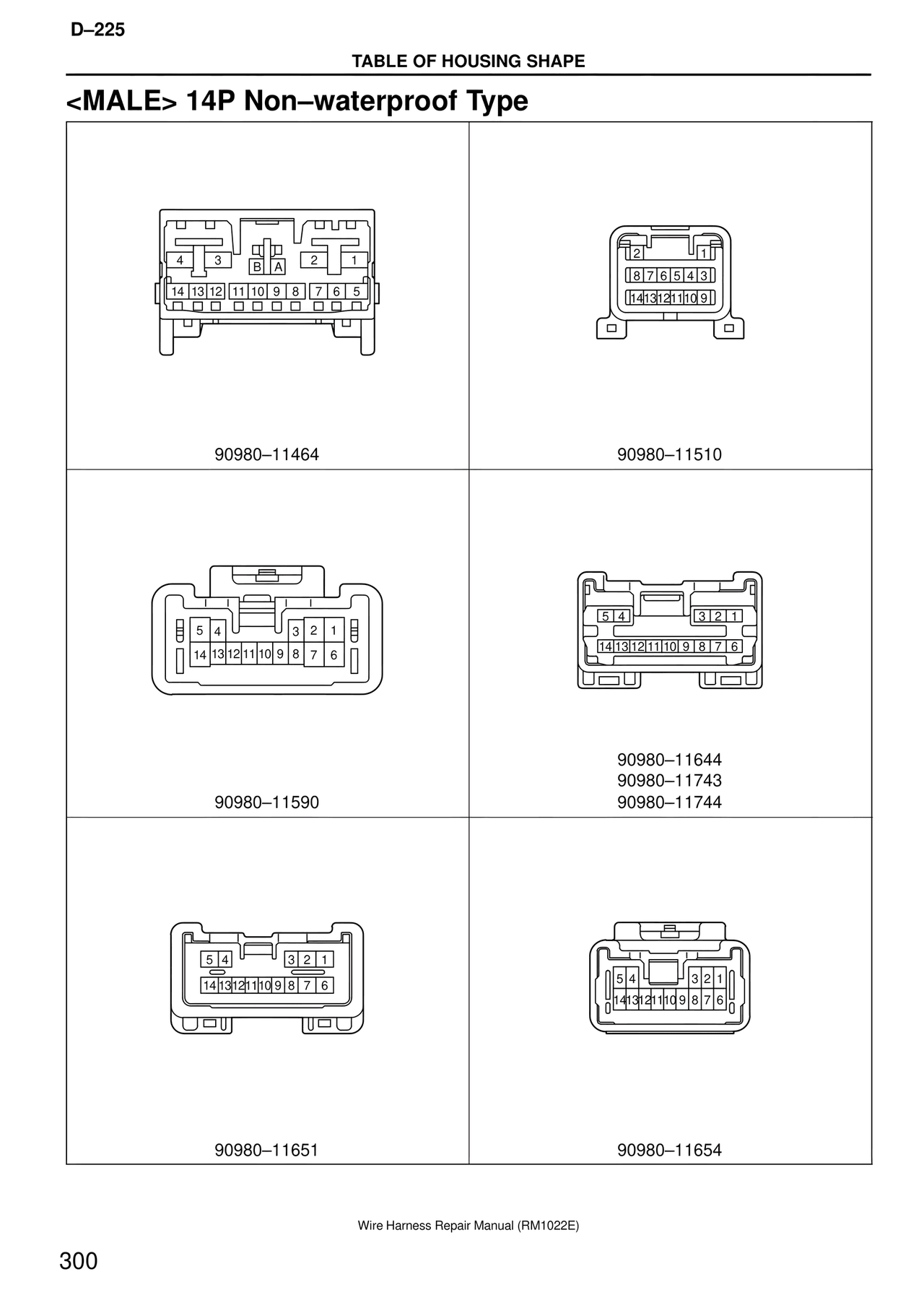

TABLE OF HOUSING SHAPE
<MALE> 14P Non–waterproof Type
4 3 B A 2 1
14 13 12 11 10 9 8 7 6 5
90980–11464
2 1
8 7 6 5 4 3
14 13 12 11 10 9
90980–11510
5 4 3 2 1
14 13 12 11 10 9 8 7 6
90980–11590
5 4 3 2 1
14 13 12 11 10 9 8 7 6
90980–11644
90980–11743
90980–11744
5 4 3 2 1
14 13 12 11 10 9 8 7 6
90980–11651
5 4 3 2 1
14 13 12 11 10 9 8 7 6
90980–11654
Wire Harness Repair Manual (RM1022E)
300
