WH/Wire Harness — <male> 15P Non–waterproof Type, page 303

D–228

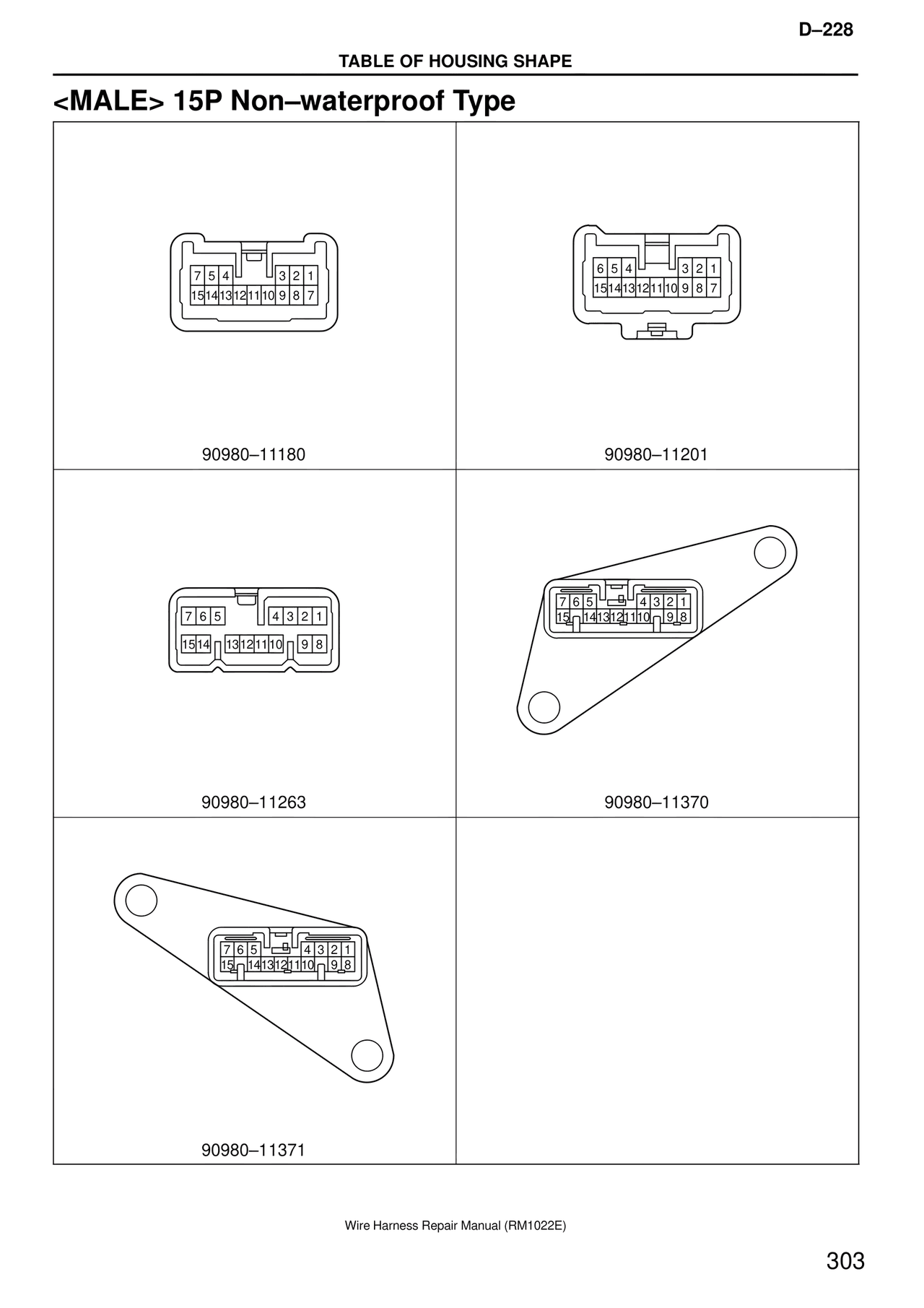

TABLE OF HOUSING SHAPE

<MALE> 15P Non–waterproof Type

7 5 4    3 2 1
15 14 13 12 11 10 9 8 7

90980–11180

6 5 4    3 2 1
15 14 13 12 11 10 9 8 7

90980–11201

7 6 5    4 3 2 1
15 14   13 12 11 10   9 8

90980–11263

7 6 5   9   4 3 2 1
15   14 13 12 11 10   9 8

90980–11370

7 6 5   9   4 3 2 1
15   14 13 12 11 10   9 8

90980–11371

Wire Harness Repair Manual (RM1022E)

303
