D–229

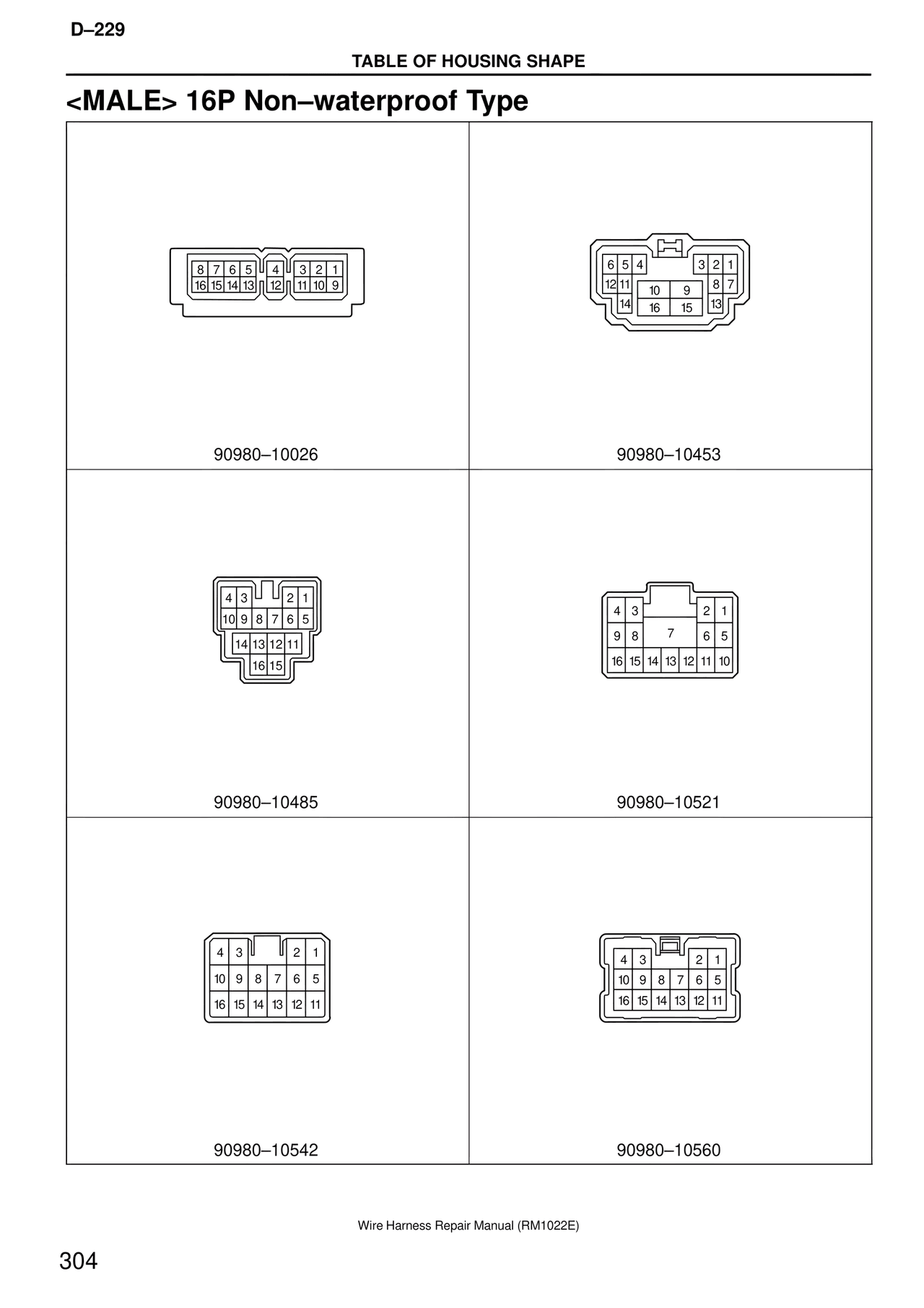

TABLE OF HOUSING SHAPE

<MALE> 16P Non–waterproof Type

8 7 6 5  4  3 2 1
16 15 14 13  12  11 10 9

90980–10026

6 5 4    3 2 1
12 11       8 7
14   10  9
     16  15  13

90980–10453

4 3   2 1
10 9 8 7 6 5
  14 13 12 11
     16 15

90980–10485

4 3      2 1
9 8    7    6 5
16 15 14 13 12 11 10

90980–10521

4 3    2 1
10 9 8 7 6 5
16 15 14 13 12 11

90980–10542

4 3      2 1
10 9 8 7 6 5
16 15 14 13 12 11

90980–10560

Wire Harness Repair Manual (RM1022E)

304
