D–238

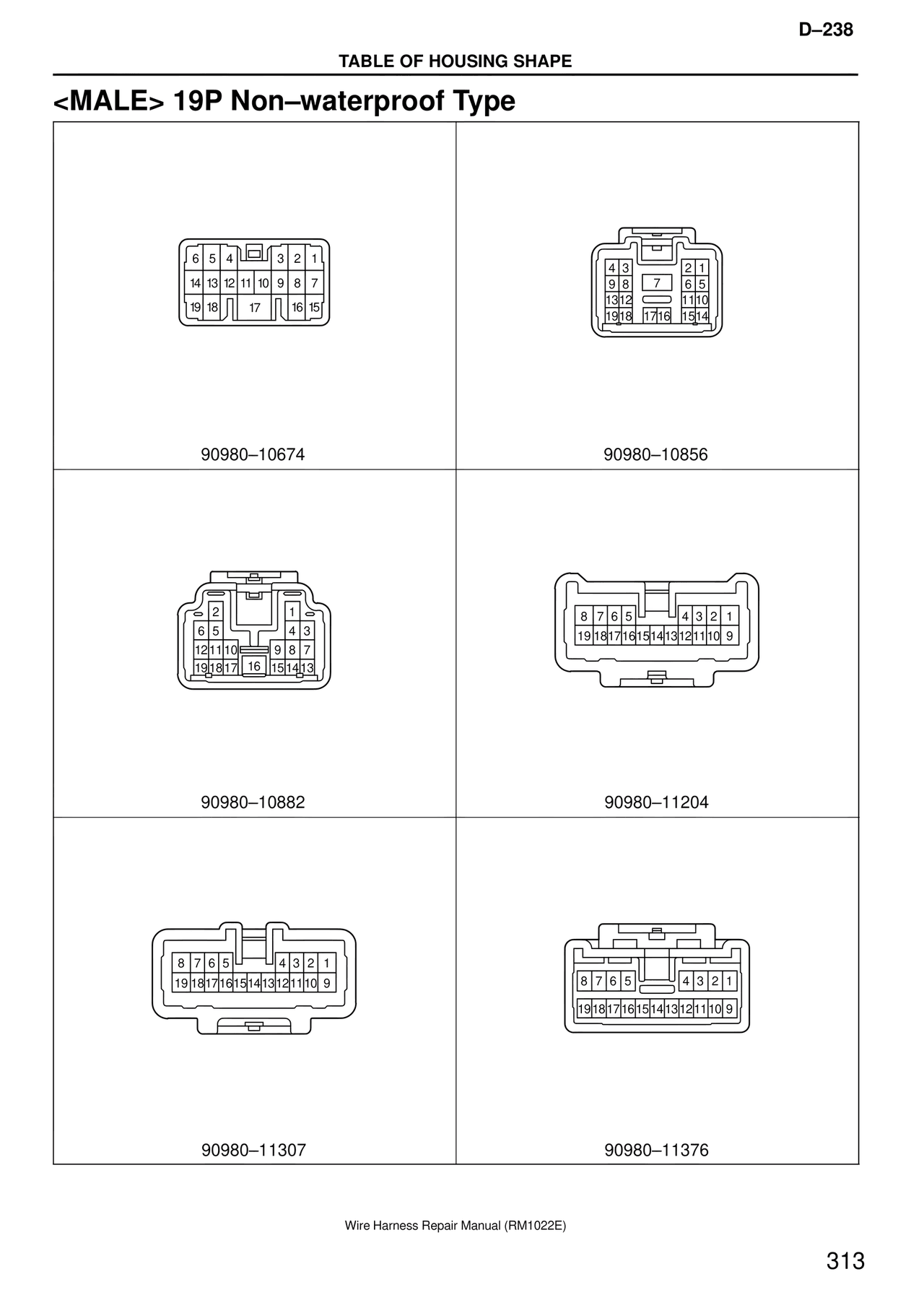

TABLE OF HOUSING SHAPE

<MALE> 19P Non–waterproof Type

6 5 4    3 2 1
14 13 12 11 10 9 8 7
19 18    17    16 15

90980–10674

4 3      2 1
9 8   7   6 5
13 12     11 10
19 18  17 16  15 14

90980–10856

   2      1
6 5      4 3
12 11 10    9 8 7
19 18 17  16  15 14 13

90980–10882

8 7 6 5    4 3 2 1
19 18 17 16 15 14 13 12 11 10 9

90980–11204

8 7 6 5    4 3 2 1
19 18 17 16 15 14 13 12 11 10 9

90980–11307

8 7 6 5    4 3 2 1
19 18 17 16 15 14 13 12 11 10 9

90980–11376

Wire Harness Repair Manual (RM1022E)

313
