D–237

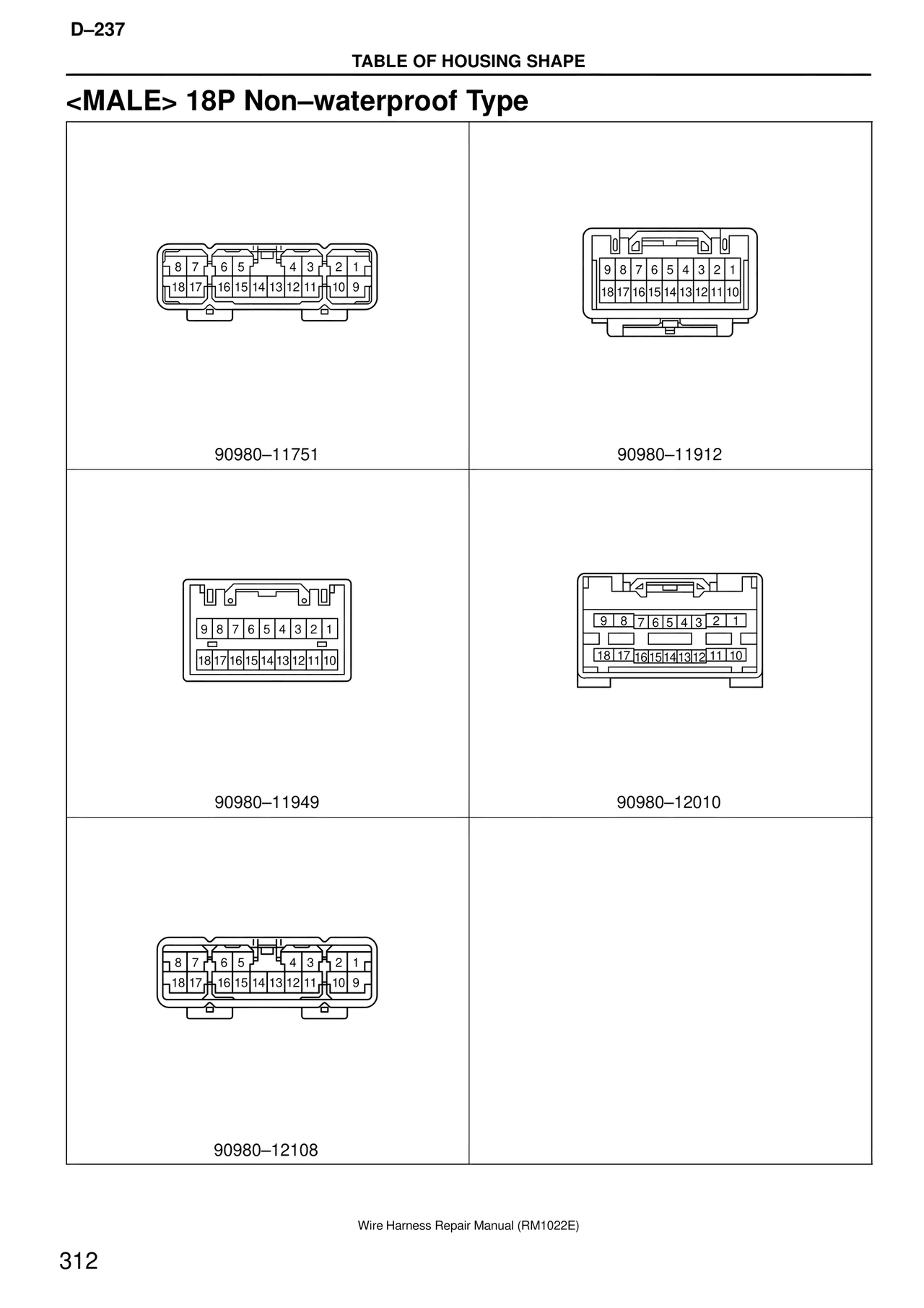

TABLE OF HOUSING SHAPE
<MALE> 18P Non–waterproof Type
8 7 6 5 4 3 2 1
18 17 16 15 14 13 12 11 10 9
90980–11751
9 8 7 6 5 4 3 2 1
18 17 16 15 14 13 12 11 10
90980–11912
9 8 7 6 5 4 3 2 1
18 17 16 15 14 13 12 11 10
90980–11949
9 8 7 6 5 4 3 2 1
18 17 16 15 14 13 12 11 10
90980–12010
8 7 6 5 4 3 2 1
18 17 16 15 14 13 12 11 10 9
90980–12108
Wire Harness Repair Manual (RM1022E)
312
