TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Tool Hole
Special Tool
Special Tool
Terminal Lance
0.64 Type
Special Tool
Tool Hole
Special Tool
Terminal Lance
Insulation Displacement Connector Type

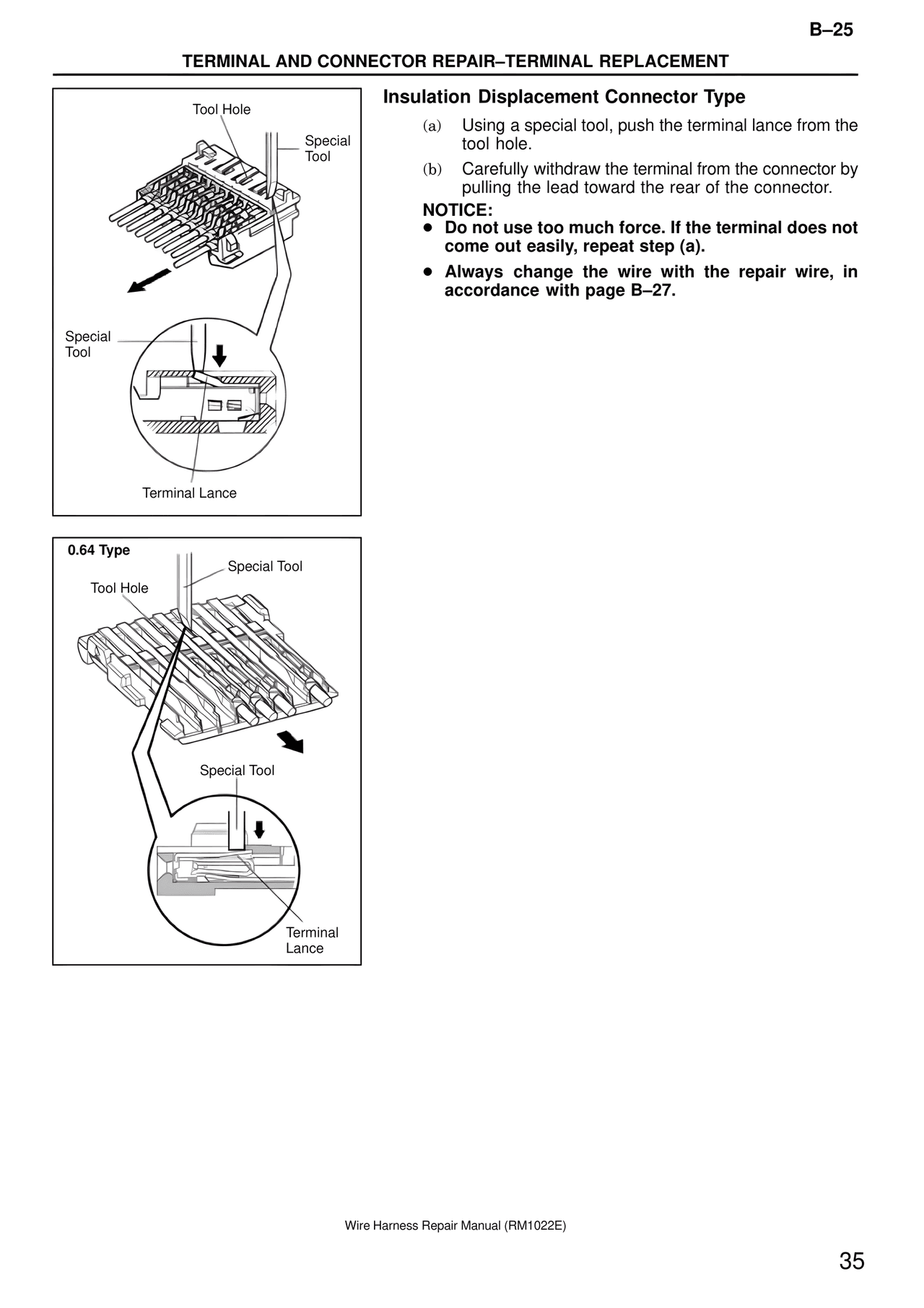

(a) Using a special tool, push the terminal lance from the tool hole.
(b) Carefully withdraw the terminal from the connector by pulling the lead toward the rear of the connector.
NOTICE:
● Do not use too much force. If the terminal does not come out easily, repeat step (a).
● Always change the wire with the repair wire, in accordance with page B–27.
