B–26

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

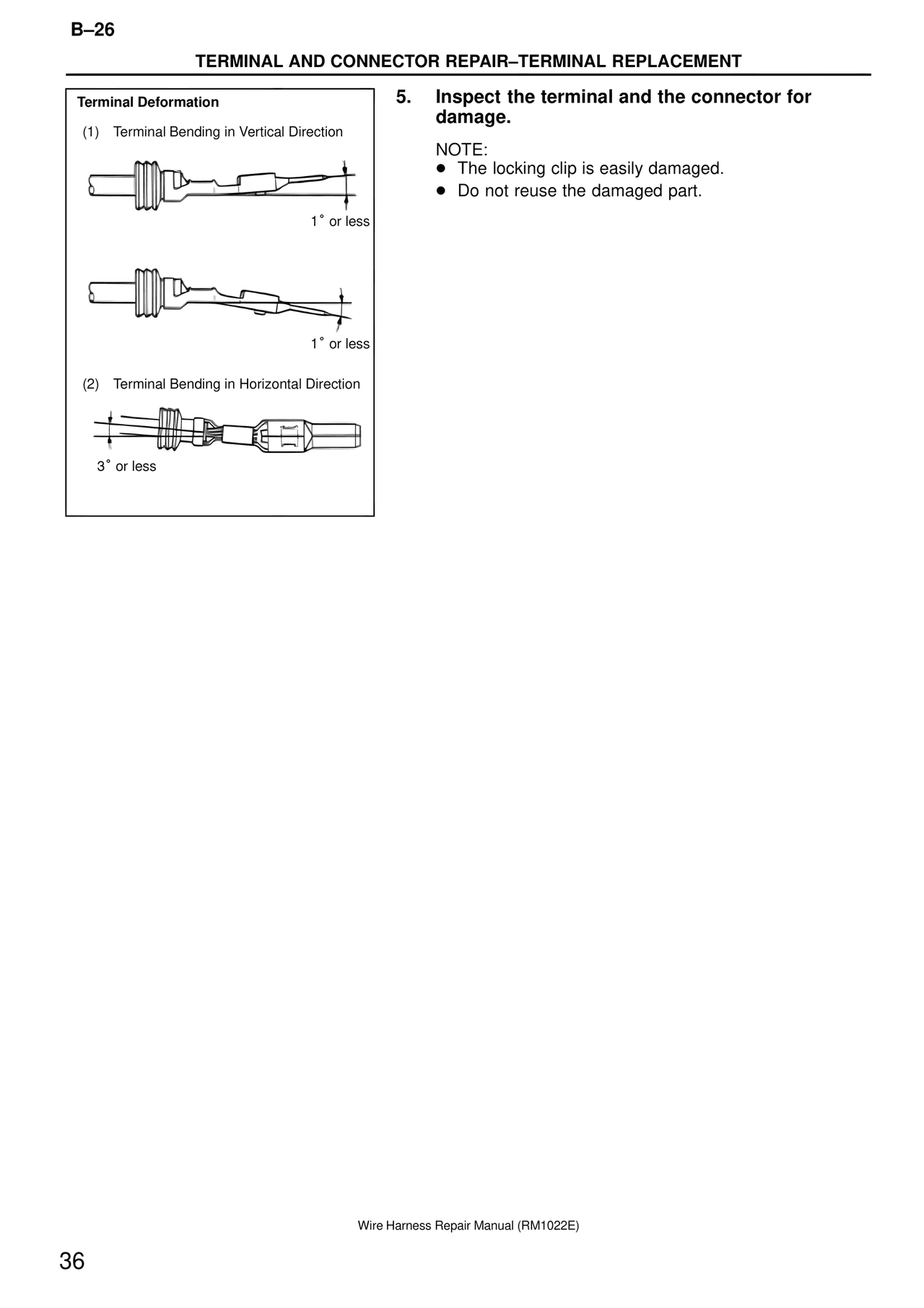

Terminal Deformation

(1) Terminal Bending in Vertical Direction

1˚ or less

1˚ or less

(2) Terminal Bending in Horizontal Direction

3˚ or less

5. Inspect the terminal and the connector for damage.

NOTE:
• The locking clip is easily damaged.
• Do not reuse the damaged part.

Wire Harness Repair Manual (RM1022E)

36
