E–36

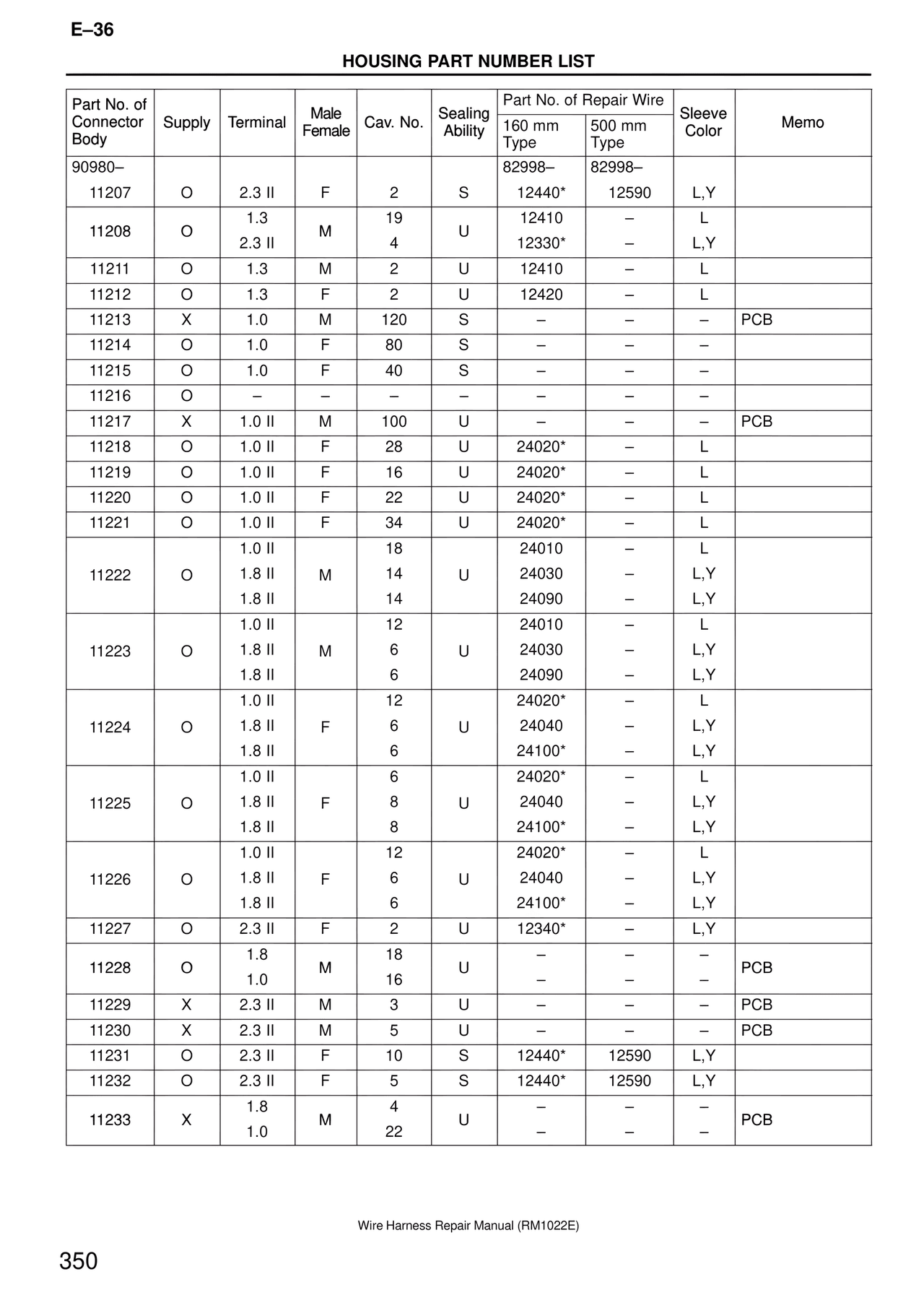

HOUSING PART NUMBER LIST
Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo
90980–
11207 | O | 2.3 II | F | 2 | S | 82998–12440 | 82998–12590 | L,Y |
11208 | O | 1.3 | M | 19 | U | 12410 | – | L |
11208 | O | 2.3 II | M | 4 | U | 12330* | – | L,Y |
11211 | O | 1.3 | M | 2 | U | 12410 | – | L |
11212 | O | 1.3 | F | 2 | U | 12420 | – | L |
11213 | X | 1.0 | M | 120 | S | – | – | – | PCB
11214 | O | 1.0 | F | 80 | S | – | – | – |
11215 | O | 1.0 | F | 40 | S | – | – | – |
11216 | O | – | – | – | – | – | – | – |
11217 | X | 1.0 II | M | 100 | U | – | – | – | PCB
11218 | O | 1.0 II | F | 28 | U | 24020* | – | L |
11219 | O | 1.0 II | F | 16 | U | 24020* | – | L |
11220 | O | 1.0 II | F | 22 | U | 24020* | – | L |
11221 | O | 1.0 II | F | 34 | U | 24020* | – | L |
11222 | O | 1.0 II | M | 18 | U | 24010 | – | L |
11222 | O | 1.8 II | M | 14 | U | 24030 | – | L,Y |
11222 | O | 1.8 II | M | 14 | U | 24090 | – | L,Y |
11223 | O | 1.0 II | M | 12 | U | 24010 | – | L |
11223 | O | 1.8 II | M | 6 | U | 24030 | – | L,Y |
11223 | O | 1.8 II | M | 6 | U | 24090 | – | L,Y |
11224 | O | 1.0 II | F | 12 | U | 24020* | – | L |
11224 | O | 1.8 II | F | 6 | U | 24040 | – | L,Y |
11224 | O | 1.8 II | F | 6 | U | 24100* | – | L,Y |
11225 | O | 1.0 II | F | 6 | U | 24020* | – | L |
11225 | O | 1.8 II | F | 8 | U | 24040 | – | L,Y |
11225 | O | 1.8 II | F | 8 | U | 24100* | – | L,Y |
11226 | O | 1.0 II | F | 12 | U | 24020* | – | L |
11226 | O | 1.8 II | F | 6 | U | 24040 | – | L,Y |
11226 | O | 1.8 II | F | 6 | U | 24100* | – | L,Y |
11227 | O | 2.3 II | F | 2 | U | 12340* | – | L,Y |
11228 | O | 1.8 | M | 18 | U | – | – | – | PCB
11228 | O | 1.0 | M | 16 | U | – | – | – | PCB
11229 | X | 2.3 II | M | 3 | U | – | – | – | PCB
11230 | X | 2.3 II | M | 5 | U | – | – | – | PCB
11231 | O | 2.3 II | F | 10 | S | 12440* | 12590 | L,Y |
11232 | O | 2.3 II | F | 5 | S | 12440* | 12590 | L,Y |
11233 | X | 1.8 | M | 4 | U | – | – | – | PCB
11233 | X | 1.0 | M | 22 | U | – | – | – | PCB
Wire Harness Repair Manual (RM1022E)
350
