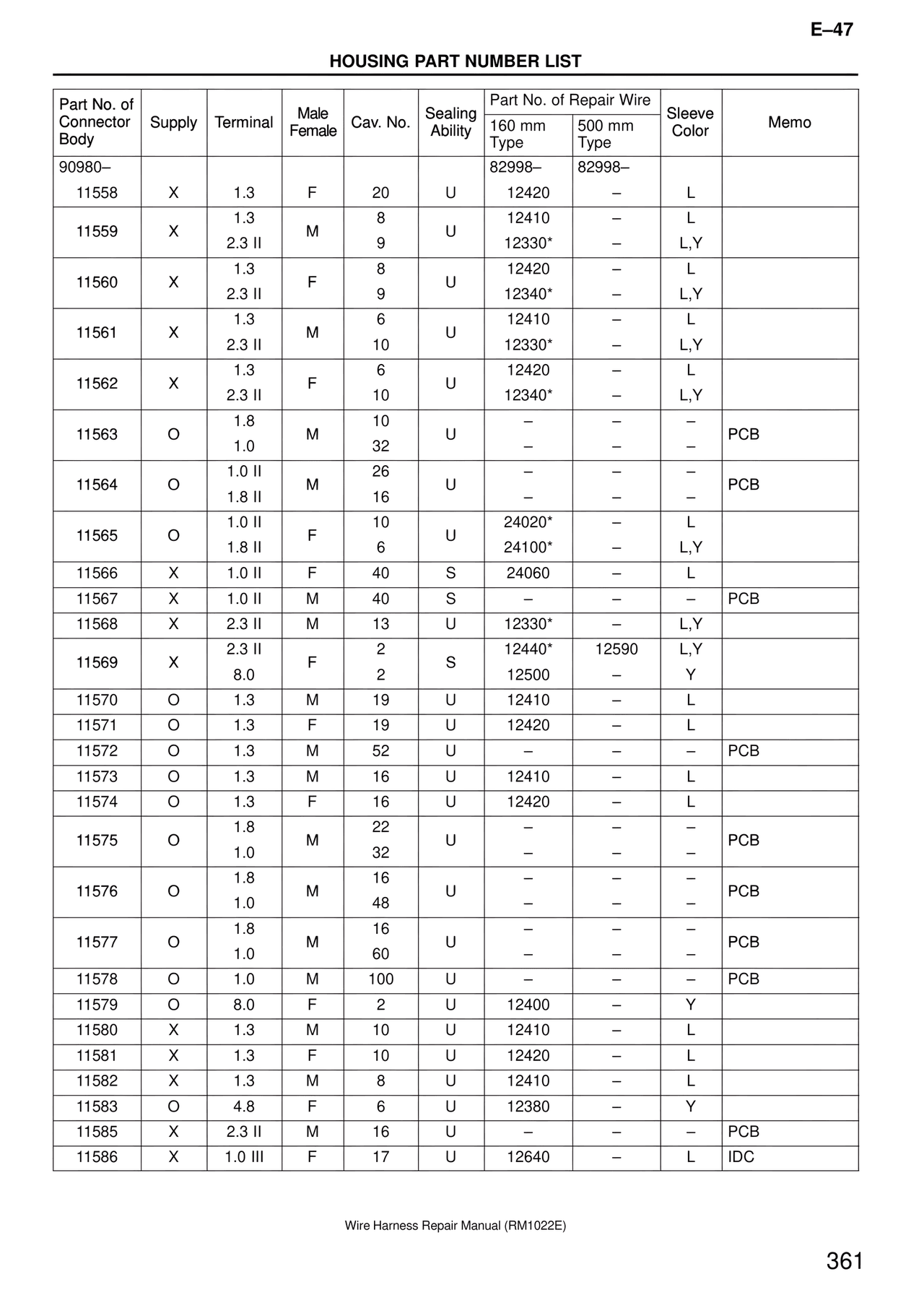

HOUSING PART NUMBER LIST
Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo
90980–
11558 | X | 1.3 | F | 20 | U | 82998–12420 | 82998– | L |
11559 | X | 1.3 | M | 8 | U | 12410 | – | L |
| | 2.3 II | | 9 | | 12330* | – | L,Y |
11560 | X | 1.3 | F | 8 | U | 12420 | – | L |
| | 2.3 II | | 9 | | 12340* | – | L,Y |
11561 | X | 1.3 | M | 6 | U | 12410 | – | L |
| | 2.3 II | | 10 | | 12330* | – | L,Y |
11562 | X | 1.3 | F | 6 | U | 12420 | – | L |
| | 2.3 II | | 10 | | 12340* | – | L,Y |
11563 | O | 1.8 | M | 10 | U | – | – | – | PCB
| | 1.0 | | 32 | | – | – | – |
11564 | O | 1.0 II | M | 26 | U | – | – | – | PCB
| | 1.8 II | | 16 | | – | – | – |
11565 | O | 1.0 II | F | 10 | U | 24020* | – | L |
| | 1.8 II | | 6 | | 24100* | – | L,Y |
11566 | X | 1.0 II | F | 40 | S | 24060 | – | L |
11567 | X | 1.0 II | M | 40 | S | – | – | – | PCB
11568 | X | 2.3 II | M | 13 | U | 12330* | – | L,Y |
11569 | X | 2.3 II | F | 2 | S | 12440* | 12590 | L,Y |
| | 8.0 | | 2 | | 12500 | – | Y |
11570 | O | 1.3 | M | 19 | U | 12410 | – | L |
11571 | O | 1.3 | F | 19 | U | 12420 | – | L |
11572 | O | 1.3 | M | 52 | U | – | – | – | PCB
11573 | O | 1.3 | M | 16 | U | 12410 | – | L |
11574 | O | 1.3 | F | 16 | U | 12420 | – | L |
11575 | O | 1.8 | M | 22 | U | – | – | – | PCB
| | 1.0 | | 32 | | – | – | – |
11576 | O | 1.8 | M | 16 | U | – | – | – | PCB
| | 1.0 | | 48 | | – | – | – |
11577 | O | 1.8 | M | 16 | U | – | – | – | PCB
| | 1.0 | | 60 | | – | – | – |
11578 | O | 1.0 | M | 100 | U | – | – | – | PCB
11579 | O | 8.0 | F | 2 | U | 12400 | – | Y |
11580 | X | 1.3 | M | 10 | U | 12410 | – | L |
11581 | X | 1.3 | F | 10 | U | 12420 | – | L |
11582 | X | 1.3 | M | 8 | U | 12410 | – | L |
11583 | O | 4.8 | F | 6 | U | 12380 | – | Y |
11585 | X | 2.3 II | M | 16 | U | – | – | – | PCB
11586 | X | 1.0 III | F | 17 | U | 12640 | – | L | IDC
