E–48

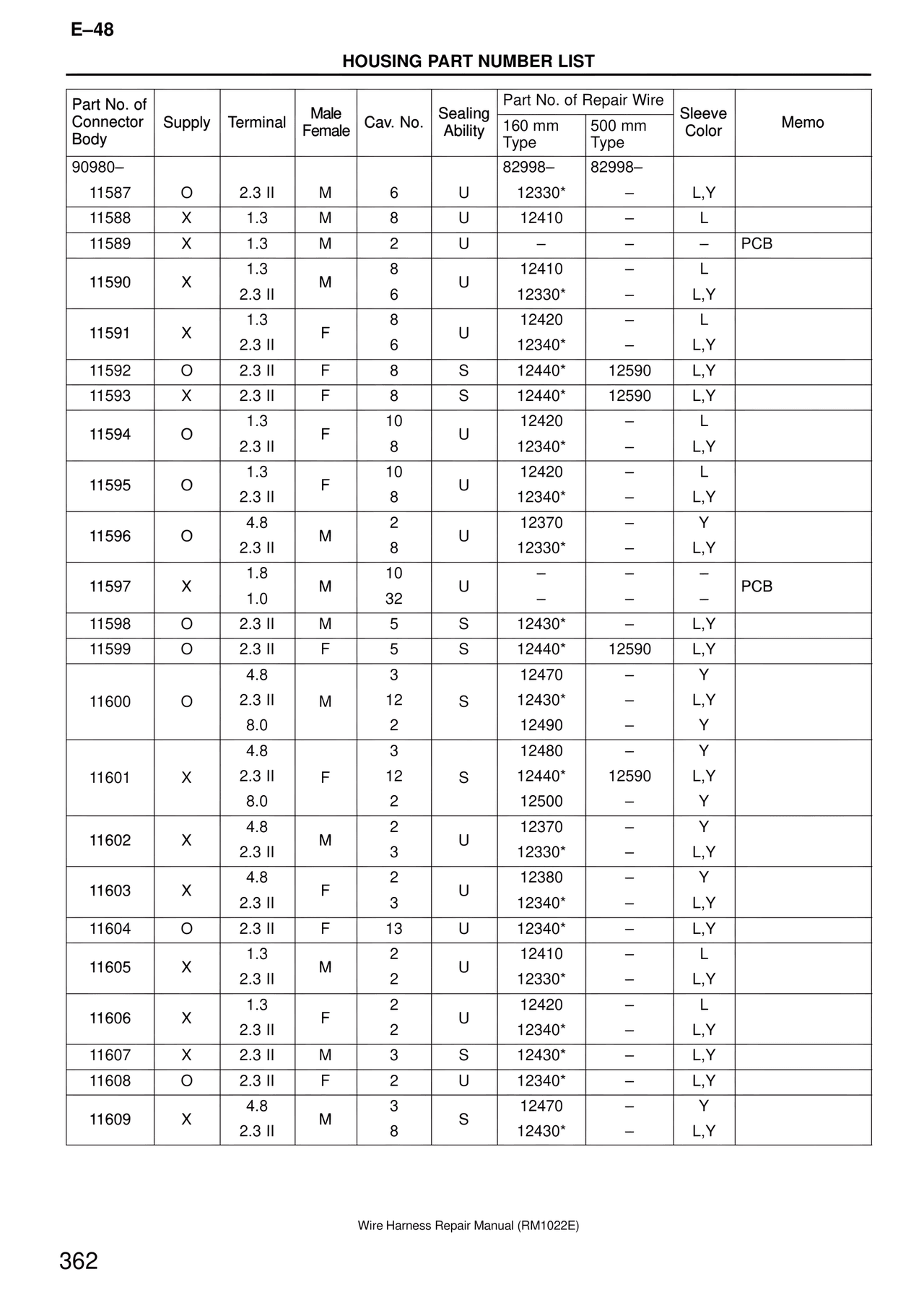

HOUSING PART NUMBER LIST
Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo
90980–
11587 | O | 2.3 II | M | 6 | U | 82998– 12330* | 82998– – | L,Y
11588 | X | 1.3 | M | 8 | U | 12410 | – | L
11589 | X | 1.3 | M | 2 | U | – | – | – | PCB
11590 | X | 1.3 | M | 8 | U | 12410 | – | L
| | 2.3 II | | 6 | | 12330* | – | L,Y
11591 | X | 1.3 | F | 8 | U | 12420 | – | L
| | 2.3 II | | 6 | | 12340* | – | L,Y
11592 | O | 2.3 II | F | 8 | S | 12440* | 12590 | L,Y
11593 | X | 2.3 II | F | 8 | S | 12440* | 12590 | L,Y
11594 | O | 1.3 | F | 10 | U | 12420 | – | L
| | 2.3 II | | 8 | | 12340* | – | L,Y
11595 | O | 1.3 | F | 10 | U | 12420 | – | L
| | 2.3 II | | 8 | | 12340* | – | L,Y
11596 | O | 4.8 | M | 2 | U | 12370 | – | Y
| | 2.3 II | | 8 | | 12330* | – | L,Y
11597 | X | 1.8 | M | 10 | U | – | – | – | PCB
| | 1.0 | | 32 | | – | – | –
11598 | O | 2.3 II | M | 5 | S | 12430* | – | L,Y
11599 | O | 2.3 II | F | 5 | S | 12440* | 12590 | L,Y
11600 | O | 4.8 | M | 3 | S | 12470 | – | Y
| | 2.3 II | | 12 | | 12430* | – | L,Y
| | 8.0 | | 2 | | 12490 | – | Y
11601 | X | 4.8 | F | 3 | S | 12480 | – | Y
| | 2.3 II | | 12 | | 12440* | 12590 | L,Y
| | 8.0 | | 2 | | 12500 | – | Y
11602 | X | 4.8 | M | 2 | U | 12370 | – | Y
| | 2.3 II | | 3 | | 12330* | – | L,Y
11603 | X | 4.8 | F | 2 | U | 12380 | – | Y
| | 2.3 II | | 3 | | 12340* | – | L,Y
11604 | O | 2.3 II | F | 13 | U | 12340* | – | L,Y
11605 | X | 1.3 | M | 2 | U | 12410 | – | L
| | 2.3 II | | 2 | | 12330* | – | L,Y
11606 | X | 1.3 | F | 2 | U | 12420 | – | L
| | 2.3 II | | 2 | | 12340* | – | L,Y
11607 | X | 2.3 II | M | 3 | S | 12430* | – | L,Y
11608 | O | 2.3 II | F | 2 | U | 12340* | – | L,Y
11609 | X | 4.8 | M | 3 | S | 12470 | – | Y
| | 2.3 II | | 8 | | 12430* | – | L,Y
Wire Harness Repair Manual (RM1022E)
362
